StarTech.com DPPNLFM3PW DisplayPort cable

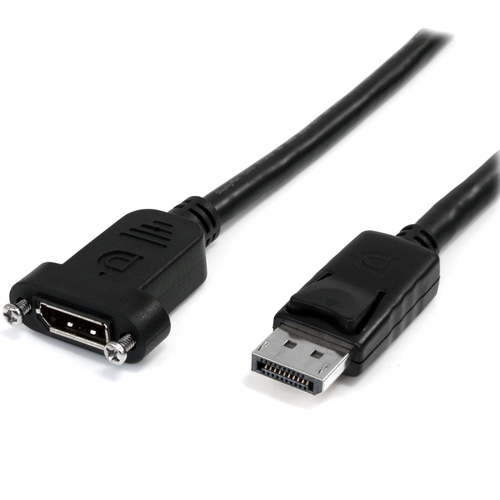

StarTech.com 3ft (1m) Panel Mount DisplayPort Cable - 4K x 2K - DisplayPort 1.2 Extension Cable Male to Female - DP Video Extender Cord with Panel Mount DP Connector - DP Monitor Cable
- Brand
- STARTECH
- Product code
- DPPNLFM3PW
- SKU
- 0ZVXSK910VVIR
- EAN/GTIN
- 0065030840866
- PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)

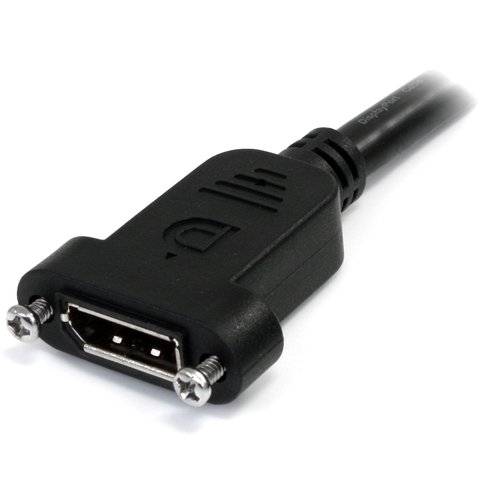

- RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio
- APPLICATIONS: Add extra 6ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display
- SPECS: 3' (0.91m) / White / DisplayPort 1.2 / DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws) / 28 AWG / PVC cable jacket, ABS connector shell / Shield: Double sided copper foil / Backward compatible w/ DP1.1 / Lifetime Warranty
€27.72
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
Allows a DisplayPort connection to be mounted on a secure easily accessible panelThe StarTech.com Advantage
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Cable length | 0.9 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Latching connectors | Yes |
| Product colour | Black |
| Cable rating | CMG (CM) |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Bandwidth | 21600 MB/s |
| Plug and Play | Yes |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 20 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Packaging data | |
| Weight | 83 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 25 mm |
| Package weight | 88 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 120 pc(s) |
