StarTech.com 150m (492ft) USB 2.0 Extender over Cat5e/Cat6 Ethernet Cable, Externally Powered USB Extender via RJ45/Network Cable, USB Over Ethernet Cable Extender/Adapter
- Brand
- STARTECH
- Product code
- C15012-USB-EXTENDER
- SKU
- STJGIK4UK2656
- ULTRA LONG RANGE USB EXTENDER: Extend a USB 2.0 connection up to 492 ft (150 m) over an Ethernet cable (CAT5e, CAT6, or higher) with data transfer rates up to 480Mbps; Power, Link & Activity status LEDs; For Webcams and USB peripherals

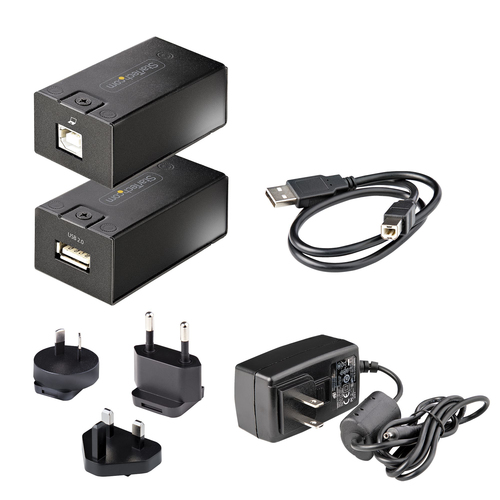

- POWERED USB EXTENDER KIT: The USB extender over Cat5/Cat6 cable (RJ45) includes a power adapter for the Receiver while the Transmitter is bus-powered. The Receiver's USB port provides 5V 500mA
- DURABLE & COMPACT: Durable metal construction for high wear and tear environments; Transmitter & Receiver each feature the same small form factor 1.3 x 1x 2.65 in (32 x 25 x 67.3 mm); Rubber feet help prevent sliding; 2 ft (61 cm) USB host cable included
- PLUG-AND-PLAY: The extender features driverless installation and is compatible w/ major operating systems incl. Windows, macOS, Linux; Compatible with USB 2.0/1.1/1.0; Point-to-Point, Does not work through network/LAN equipment (router, switch, etc.)
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA USB 2.0 extender kit is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Product Info
Connect a remote USB 2.0 device to your computer over long distancesExtend a USB 2.0 connection up to 492 ft (150 m) with this USB Extender Kit. Connect the transmitter to the receiver, using existing Ethernet cabling that is Cat5e or better (e.g., Cat 6, 6a, etc.). No software or configuration is required. Conveniently control remote USB devices in warehouses, classrooms, board rooms, and other long-range application environments.Overcome Distance LimitationsThis USB Extender Kit enables you to exceed the limitations posed by traditional USB cable lengths, to establish long-range USB connections. Use this kit for a wide variety of applications such as remote surveillance and monitoring with a webcam (up to 1080p resolution), controlling machines at a distance, remote printing, connecting retail barcode scanners, and many other applications. In addition, the remote unit is connected to a power source, using the included power adapter, for applications requiring USB bus power.Rugged DurabilityThe local and remote units feature a metal exterior for extra protection and longevity in harsher environments. With dimensions of only 1.3 x 1.0 x 2.65 in (32.2 x 25.4 x 67.3 mm), both units are very compact, allowing for installations in tight spaces.Ease of UseThe USB over Ethernet cable extender kit is compatible with any operating system and does not require any additional software to work. Set up the units by connecting them on a point-to-point connection, using your existing Ethernet cabling (Cat5e or better). This kit is not compatible with network switches and routers. The Extender is compatible with USB 2.0, USB 1.1, and USB 1.0 peripherals.The C15012-USB-EXTENDER is TAA compliant and backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
| Technical details | |
|---|---|
| Type | Console transmitter & receiver |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 150 m |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
| Cable types supported | Cat5e, Cat6 |
| Sustainability certificates | CE, RoHS |
| Plug and Play | Yes |
| Ports & interfaces | |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
| Weight & dimensions | |
| Width | 67 mm |
| Depth | 32 mm |
| Height | 25 mm |
| Weight | 173 g |
| Package width | 220 mm |
| Package depth | 194 mm |
| Package height | 60 mm |
| Package weight | 173 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | USB Type-A to USB Type-B |
| AC adapter included | Yes |
| Power | |
| Power source type | DC |
| Power consumption (typical) | 15 W |
| Input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 5 V |
| Output current | 3 A |
| Power plug type | Type H |
| Logistics data | |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 278 mm |
| Products per master (outer) case | 12 pc(s) |
