StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
- Brand
- STARTECH
- Product code
- ET90110WDM2
- SKU
- T90WT0P3VBI3X
- EAN/GTIN
- 0065030846271
- Wired
- 200 Mbit/s 20000 m 1310 nm
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Single-mode Fiber ports quantity: 1 SC
- Black
Product Info
Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cable
The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).
The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.

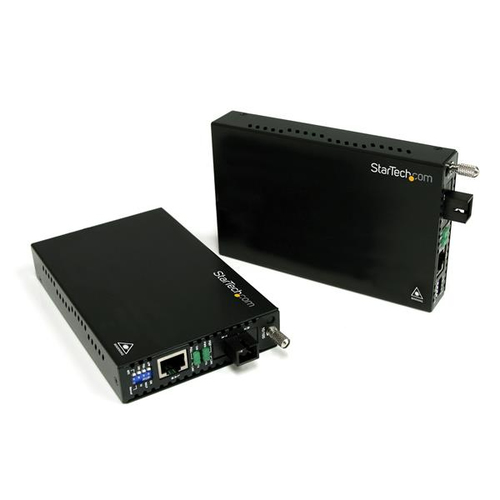

The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

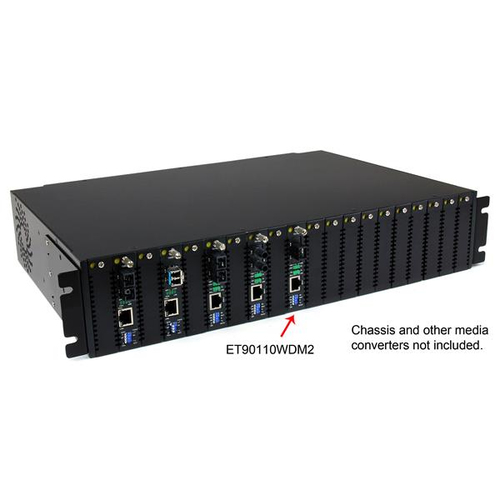

For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Wavelength Division Multiplexing (WDM) fiber cuts cabling costs in half, or doubles existing network speed/capacity using pre-existing cables
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
| Network | |
|---|---|
| Maximum data transfer rate | 200 Mbit/s |
| Converter input interface | 100Base-TX, 10Base-T |
| Converter output interface | 100BASE-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
| Performance | |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Design | |
| Internal | No |
| Product colour | Black |
| Certification | CE, FCC |
| Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
| Management features | |
| Plug and Play | Yes |
| Weight & dimensions | |
| Weight | 1.2 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package width | 211 mm |
| Package depth | 279 mm |
| Package height | 101 mm |
| Package weight | 1.36 kg |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
| Full duplex | Yes |
