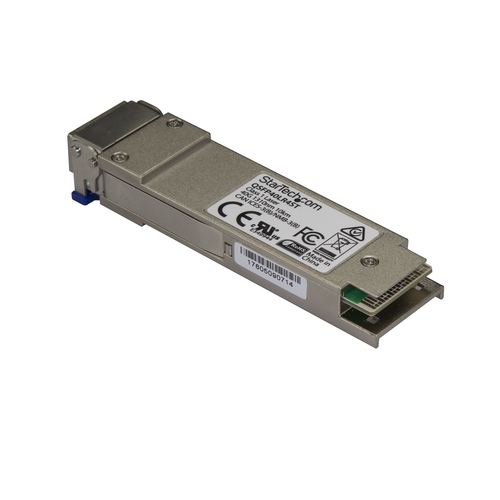

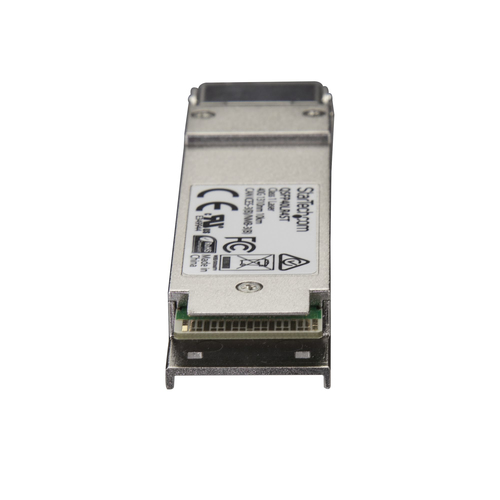

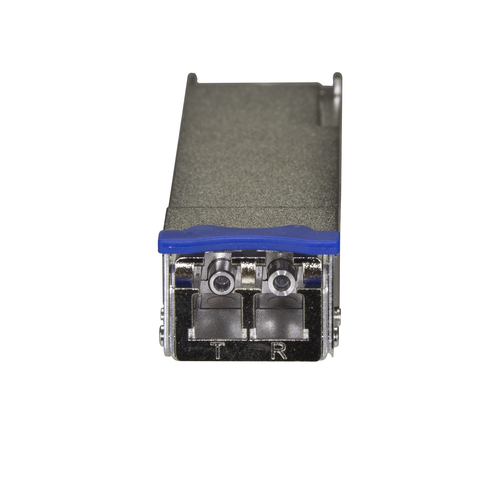

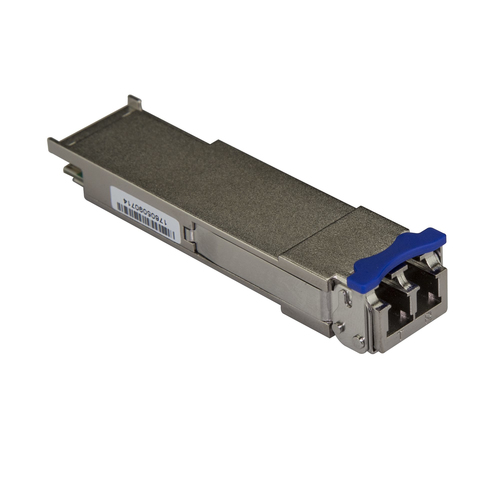

StarTech.com MSA Compliant QSFP+ Transceiver Module - 40GBASE-LR4~MSA Uncoded QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber (SMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm - DDM
- Brand
- STARTECH
- Product code
- QSFP40LR4ST
- SKU
- PJRS5GO79V6ZG
- EAN/GTIN
- 0065030873345
- 100% MSA UNCODED QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-LR4 / 40Gbps / Single Mode (SMF) / LC Connector / 1270nm to 1330nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools.
- WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Product Info
40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1270nm to 1330nm• Maximum Data Transfer Rate: 40 Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• MTBF: 1,489,426 hours• Power Consumption: Less than 2.5 Watts• DDM: YesThis QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Tx wavelength (min) | 1270 nm |
| Tx wavelength (max) | 1330 nm |
| Networking standards | IEEE 802.3ba |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 1489426 h |
| Certification | CE, FCC, UR, REACH |
| Power | |
| Power consumption (typical) | 2.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 18.4 mm |
| Depth | 72 mm |
| Height | 13 mm |
| Weight | 40 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 92 mm |
| Package depth | 117 mm |
| Package height | 32 mm |
| Package weight | 76 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 300 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 36 pc(s) |
