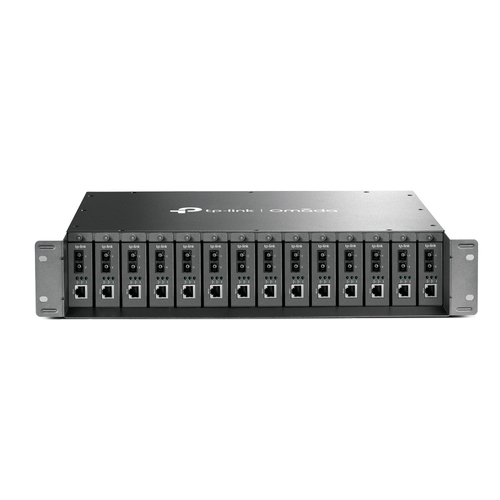

TP-Link Omada MC1400 network equipment chassis
TP-Link Omada 14-Slot Rackmount Chassis
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- MC1400
- SKU
- R88PW1ZFTVEUN
- 14 bays to house up to 14 media converters
- 9 VDC / 0.6 A power output
- Optional redundant power supply to ensure non-stop reliable operation
- Hot-swappable
- Mounted two cooling fans for better ventilation
- 2U 19-inch rack-mountable
€239.46
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The Omada 14-Slot Rackmount Chassis MC1400 is specially designed to accommodate 14 Omada Media Converters for central power supply, saving space and power cables. Continuous operation is important to fiber communication, so the chassis is equipped with an optional redundant power supply and Hot-Swapping function which allows installing/removing the converter without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed inside. Together with Omada MC series Gigabit / Fast Ethernet media converters, MC1400 is the ideal solution for your media conversion network.
| Technical details | |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 2U |
| Cooling type | Active |
| Number of slots | 14 |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 482 mm |
| Depth | 358 mm |
| Height | 86 mm |
