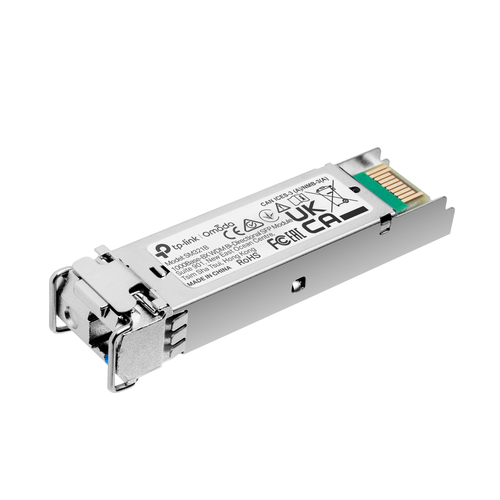

TP-Link Omada SM321B network transceiver module
TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- SM321B
- SKU
- K7LXYZD988QEO
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
€27.68
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
TP-Link´s SM321B (TL-SM321B) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 20000 m |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1550 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | FCC, CE |
| Power | |
| Input voltage | 3.3 V |
| Operational conditions | |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 55.4 mm |
| Depth | 14.6 mm |
| Height | 12.9 mm |
| Packaging data | |
| Number of products included | 1 pc(s) |
| User guide | Yes |
