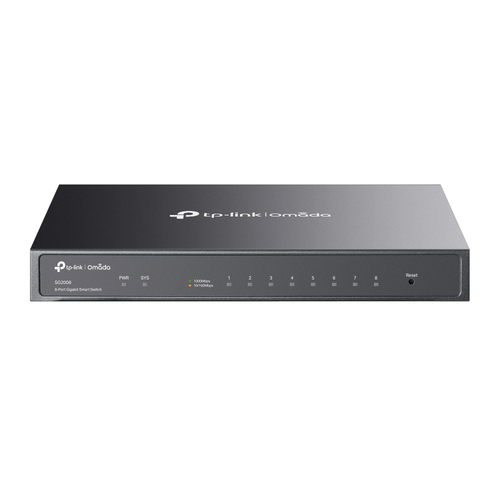

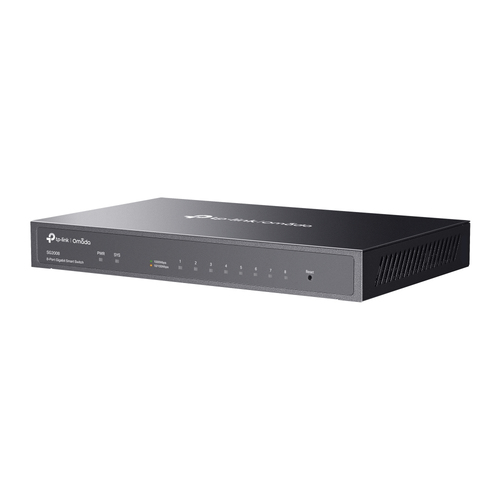

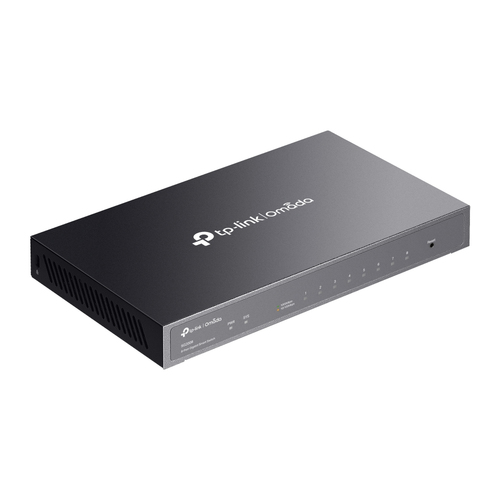

TP-Link Omada SG2008 network switch

SG2008 - 6935364010546

TP-Link Omada 8-Port Gigabit Smart Switch

Brand: TP-Link
Product Family: Omada
Product code: SG2008
SKU: KTBFUK9DKHGT9
EAN/GTIN: 6935364010546

8× Gigabit RJ45 ports (1 PD port)
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for silent operation

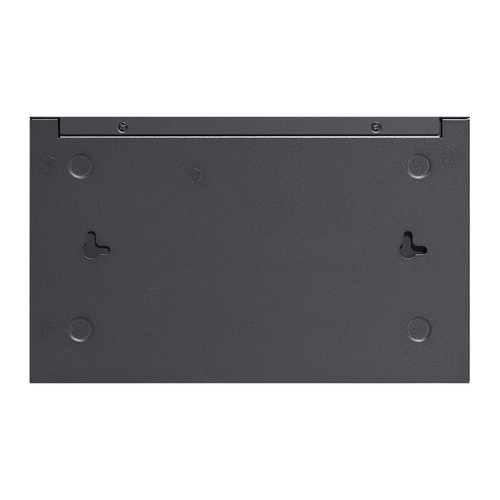

Durable metal casing and desktop/wall mounting design

€97.07 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

8× 10/100/1000 Mbps RJ45, 16 Gbps, 8K MAC, 9 KB Jumbo, 209×126×26 mm

TP-Link Omada 8-Port Gigabit Smart Switch. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE.... Power connector: DC-in jack. Wall mountable

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features

Switch type Managed

Switch layer L2/L2+

Quality of Service (QoS) support Yes

Web-based management Yes

Cloud-managed Yes

ARP inspection Yes

Configuring Location Settings (CLI) Yes

System event log Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 8

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Power connector DC-in jack

Network

Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support No

Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Spanning tree protocol Yes

VLAN support Yes

Virtual LAN features MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Number of VLANs 4000

Data transmission

Switching capacity 16 Gbit/s

Forwarding rate 11.9 Mpps

MAC address table 8000 entries

Static route Yes

Number of static routes 32

Number of IP interfaces 16

Jumbo frames support Yes

Jumbo frames 9000

Packet buffer memory 4.1 MB

Security

DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Access Control List (ACL) Yes

IGMP snooping Yes

Security algorithms SSH, SSH-2, SSL/TLS

SSH/SSL support Yes

BPDU filtering/protection Yes

IP-MAC-Port binding Yes

Multicast features

Multicast support Yes

Protocols

Management protocols SNMPv1/v2c/v3, SNTP

GARP VLAN Registration Protocol (GVRP) Yes

Design

Product colour Black

LED indicators Yes

Wall mountable Yes

Certification CE, FCC, RoHS

Performance

Fanless Yes

Power

Power source DC

Power supply included Yes

Input current 1 A

Input voltage 12 V

Power consumption (max) 6.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) No

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Heat dissipation 21.84 BTU/h

Weight & dimensions

Width 209 mm

Depth 126 mm

Height 26 mm

Packaging data

Cables included AC

User guide Yes
