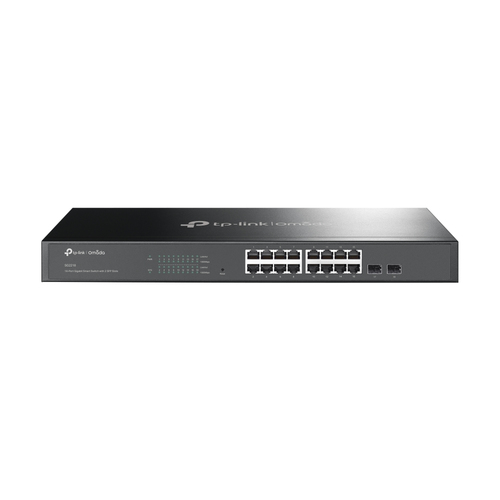

TP-Link Omada SG2218 network switch

SG2218 - 6935364006419

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots

Brand: TP-Link
Product Family: Omada
Product code: SG2218
SKU: NTFEV8O60EYCZ
EAN/GTIN: 6935364006419

16× Gigabit RJ45 ports and 2× Gigabit SFP slots
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and rackmountable design

€167.43 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

16× 10/100/1000 Mbps RJ45, 2× Gigabit SFP Slots, 36 Gbps, 8K MAC, 9KB Jumbo, 440 × 180 × 44 mm

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Rack mounting, Form factor: 1U

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features

Switch type Managed

Switch layer L2/L2+

Quality of Service (QoS) support Yes

Web-based management Yes

Cloud-managed Yes

ARP inspection Yes

System event log Yes

MIB support Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 16

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity 16

SFP module slots quantity 2

Network

Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z

10G support No

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Spanning tree protocol Yes

Ethernet LAN data rates 10,100,1000 Mbit/s

VLAN support Yes

Virtual LAN features Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Number of VLANs 4000

Data transmission

Switching capacity 36 Gbit/s

Forwarding rate 26.8 Mpps

MAC address table 8000 entries

Store-and-forward Yes

Static route Yes

Number of static routes 32

Number of IP interfaces 16

Jumbo frames support Yes

Jumbo frames 9000

Packet buffer memory 4.1 MB

Security

DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Access Control List (ACL) Yes

IGMP snooping Yes

SSH/SSL support Yes

Loop protection Yes

BPDU filtering/protection Yes

Multicast features

Multicast support Yes

Multicast Listener Discovery (MLD) snooping Y

Protocols

Management protocols SNMPv1/v2c/v3, SNTP

GARP VLAN Registration Protocol (GVRP) Yes

Design

Rack mounting Yes

Form factor 1U

Product colour Black

LED indicators Yes

Certification CE, FCC, RoHS

Performance

Fanless Yes

Power

Power source AC

Power supply included Yes

AC input voltage 100 - 240 V

AC input frequency 50/60 Hz

Power consumption (max) 12.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) No

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Heat dissipation 41.97 BTU/h

Weight & dimensions

Width 440 mm

Depth 180 mm

Height 44 mm

Packaging data

Cables included AC, LAN (RJ-45)

Quick start guide Yes
