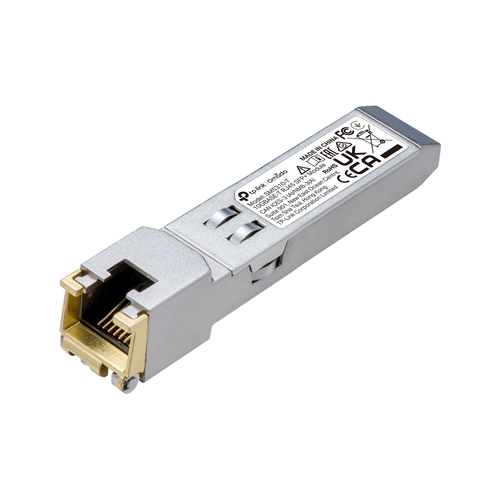

TP-Link Omada SM5310-T network transceiver module

SM5310-T - 4897098681084

TP-Link 10G BASE-T RJ45 SFP+ Module

Brand: TP-Link
Product Family: Omada
Product code: SM5310-T
SKU: IV2Y8BR9LUJF2
EAN/GTIN: 4897098681084

Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
Support DDM (Temperature and Voltage)
Hot-Pluggable SFP+ Footprint Features
Support TX Disable function
Fully Metallic Enclosure for Low EMI

€61.04 (Inc. VAT)

(Delivery 2-4 working days)

10G BASE-T RJ45 SFP+, 10.3 Gbps, 1× 10G RJ45 Port

TP-Link 10G BASE-T RJ45 SFP+ Module. SFP transceiver type: Copper, Maximum data transfer rate: 10300 Mbit/s, Interface type: RJ-45. Product colour: Silver, Housing material: Metal, Form factor: SFP+. Input voltage: 3.3 V. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Quantity per pack: 1 pc(s)

Specifications

Performance

SFP transceiver type Copper

Maximum data transfer rate 10300 Mbit/s

Interface type RJ-45

Maximum transfer distance 100 m

Ethernet LAN Yes

Ethernet interface type 10 Gigabit Ethernet

Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz

Copper ethernet cabling technology 10GBASE

Features

Product colour Silver

Housing material Metal

Form factor SFP+

Hot-Plug support Yes

Easy to install Yes

Power

Input voltage 3.3 V

Operational conditions

Maximum operating temperature 70 °C

Operating temperature (T-T) 0 - 70 °C

Storage temperature (T-T) -40 - 85 °C

Weight & dimensions

Width 67.4 mm

Depth 13.8 mm

Height 13.8 mm

Packaging data

Number of products included 1 pc(s)

Technical details

Sustainability compliance Yes

Sustainability certificates CE, Federal Communications Commission (FCC), RoHS
