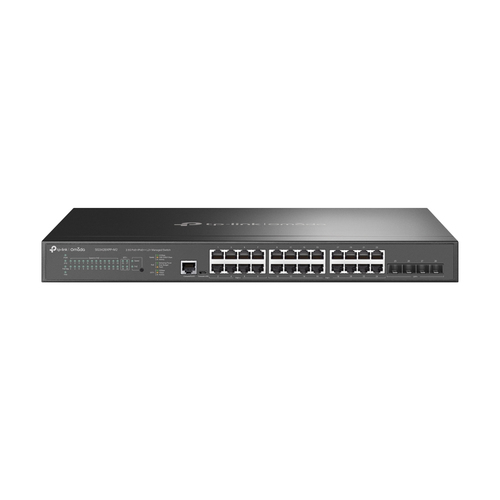

TP-Link Omada SG3428XPP-M2 network switch

SG3428XPP-M2 - 4897098689769

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

Brand: TP-Link
Product Family: Omada
Product code: SG3428XPP-M2
SKU: 4SYYAPP25HX44
EAN/GTIN: 4897098689769

8× 2.5G PoE++ ports (up to 60 W PoE out per port)**
16× 2.5G PoE+ ports (up to 30 W PoE out per port)
4× 10G SFP+ slots
500 W total PoE budget*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology

€681.83 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

8× 2.5 Gbps RJ45 PoE++, 16× 2.5 Gbps RJ45 PoE+, 4× 10G SFP+ Slots, RJ45/Micro-USB, 200 Gbps, 32 K MAC, 9 KB Jumbo, 440×330×44 mm

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. Full duplex. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications

Management features

Switch type Managed

Switch layer L2+

Quality of Service (QoS) support Yes

Web-based management Yes

Cloud-managed Yes

ARP inspection Yes

Configuring Location Settings (CLI) Yes

System event log Yes

MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 24

Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)

2.5G Ethernet (copper) ports quantity 24

SFP+ module slots quantity 4

Console port RJ-45/Micro-USB

Network

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support Yes

Port mirroring Yes

Full duplex Yes

Half duplex Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Spanning tree protocol Yes

Head-of-line (HOL) blocking Yes

Ethernet LAN data rates 10,100,1000,2500,10000 Mbit/s

IPv4 routes 48

IPv6 routes 48

VLAN support Yes

Virtual LAN features MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN

Data transmission

Switching capacity 200 Gbit/s

Forwarding rate 148.8 Mpps

MAC address table 32000 entries

Store-and-forward Yes

Number of queues 8

Static route Yes

Number of static routes 48

Number of IP interfaces 32

Jumbo frames support Yes

Jumbo frames 9000

Packet buffer memory 16 MB

Security

DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Access Control List (ACL) Yes

IGMP snooping Yes

Security algorithms HTTPS, SSH, SSH-2, SSL/TLS

Static port security Yes

SSH/SSL support Yes

Loop protection Yes

BPDU filtering/protection Yes

IP-MAC-Port binding Yes

Authentication Guest VLAN, MAC-based authentication, Port-based authentication

Password protection Yes

Authentication type AAA, IEEE 802.1x, RADIUS, TACACS+

Queue scheduling algorithms SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support Yes

Multicast Listener Discovery (MLD) snooping MLD v1/v2

Protocols

Management protocols SNMP v1/v2c/v3

GARP VLAN Registration Protocol (GVRP) Yes

IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert

Design

Rack mounting Yes

Form factor 1U

Product colour Black

LED indicators Yes

Redundant fans support Yes

Number of fans 3 fan(s)

Performance

Memory type DRAM

Internal memory 256 MB

Flash memory 32 MB

Power

Power source AC/PoE

Power supply included Yes

Redundant power supply (RPS) support Yes

AC input voltage 100 - 240 V

AC input frequency 50/60 Hz

Power consumption (max) 629.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 16

Power over Ethernet 4PPoE (PoE++) ports quantity 8

Total Power over Ethernet (PoE) budget 500 W

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Heat dissipation 2153.45 BTU/h

Weight & dimensions

Width 440 mm

Depth 330 mm

Height 44 mm

Packaging data

Cables included AC

Quick start guide Yes

Rack mount kit Yes

Sustainability

Sustainability compliance Yes

Sustainability certificates CE, Federal Communications Commission (FCC), RoHS
