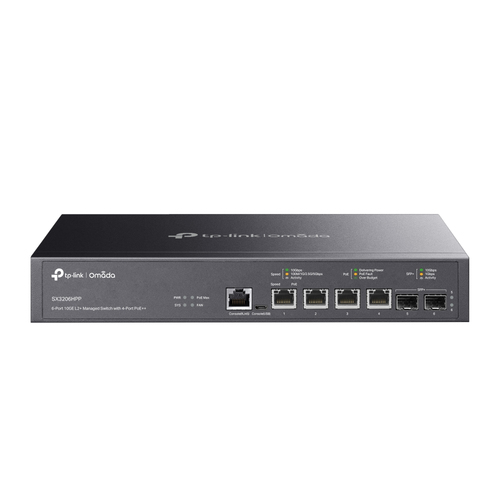

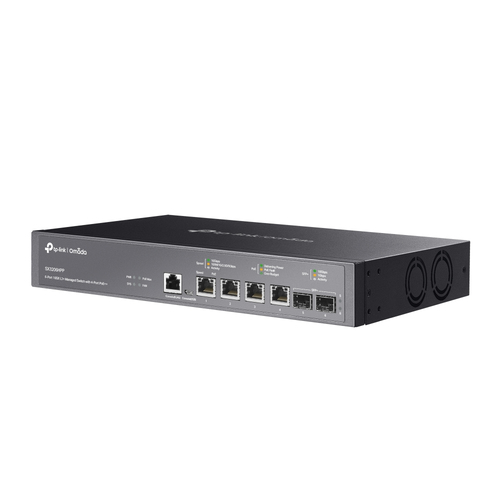

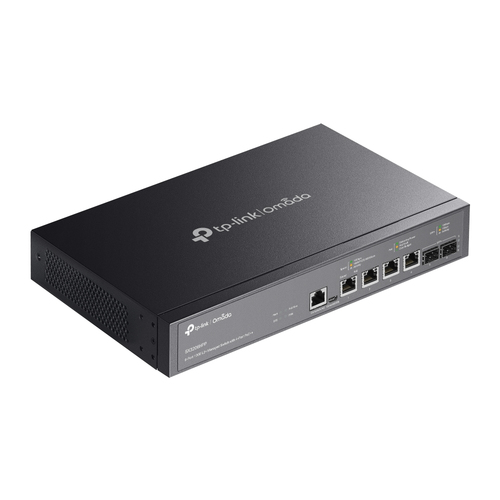

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- SX3206HPP
- SKU
- FHLU3X816PNHE
- 4× 10G PoE++ ports with up to 60 W PoE output per port**
- 2× 10G SFP+ slots
- 200 W total PoE budget*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Desktop / Rack Mounting
Product Info
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45/Micro-USB |

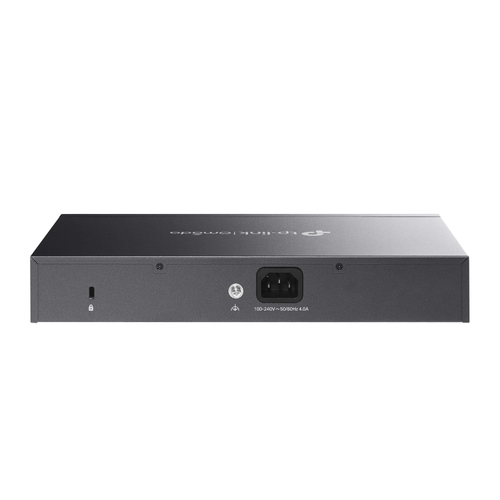

| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Routing entries | 512 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 120 Gbit/s |
| Forwarding rate | 89.28 Mpps |
| MAC address table | 32000 entries |
| Static route | Yes |
| Number of static routes | 48 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 16 MB |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SSL/TLS |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN |
| Authentication type | AAA, RADIUS, TACACS+ |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3 |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Certification | CE, FCC, RoHS |
| Performance | |
| Minimum system requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 244.9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 200 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 835.67 BTU/h |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging data | |
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
