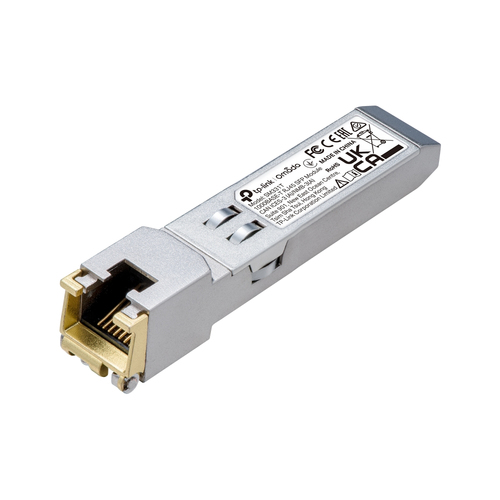

TP-Link Omada SM331T network transceiver module
TP-Link Omada 1000BASE-T RJ45 SFP Module
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- SM331T
- SKU
- OQVWOQHG6O9V3
- Support 1000BASE-T Operation in Host Systems
- Support TX Disable function
- For 100m* Reach Over UTP Cat 5e or above Cable
- Hot-Pluggable SFP Footprint Features
- Commercial Product Operating Temperature Range: 0-70°C
- Compliant with IEEE Std 802.3-2002
- Fully Metallic Enclosure for Low EMI
- Low Power Dissipation (0.5 W Typical, 0.8 W Max)
€29.72
(Inc. VAT)
(Delivery 2-4 working days)
TP-Link Omada 1000BASE-T RJ45 SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver. Input voltage: 3.3 V. Certification: FCC, CE. Width: 67.4 mm, Depth: 13.8 mm, Height: 13.8 mm
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3ae |
| Features | |
| Product colour | Silver |
| Certification | FCC, CE |
| Power | |
| Input voltage | 3.3 V |
| Operational conditions | |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Width | 67.4 mm |
| Depth | 13.8 mm |
| Height | 13.8 mm |
| Packaging data | |
| Number of products included | 1 pc(s) |
| User guide | Yes |
