StarTech.com Dual-Slot Drive Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps) - RAID
- Brand
- STARTECH
- Product code
- SM22BU31C3R
- SKU
- S7PF4PV2K9NCF
- EAN/GTIN
- 0065030870757
- Maximize the performance of your M.2 (NGFF) SATA drives with USB 3.1 Gen 2 (10Gbps) connectivity
- Supports RAID 0, RAID 1, JBOD and SPAN (BIG) for optimal performance, capacity and redundancy

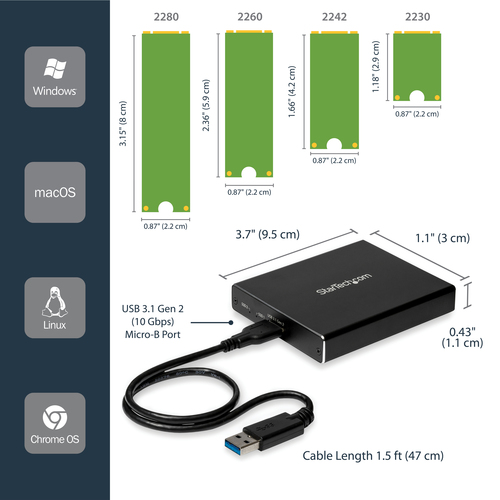

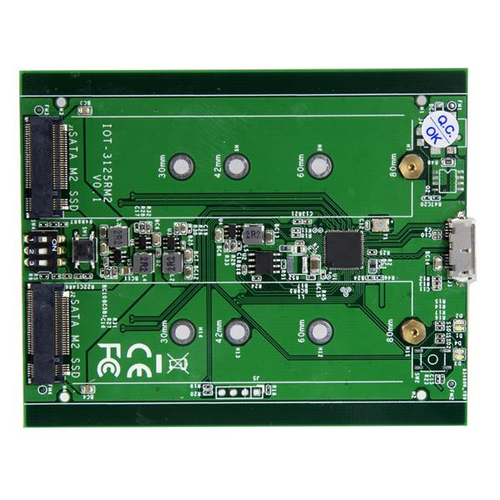

- Supports all common M.2 SATA SSDs, and enables you to mount multiple drive lengths: 30 mm (2230), 42 mm (2242), 60 mm (2260) and 80 mm (2280)

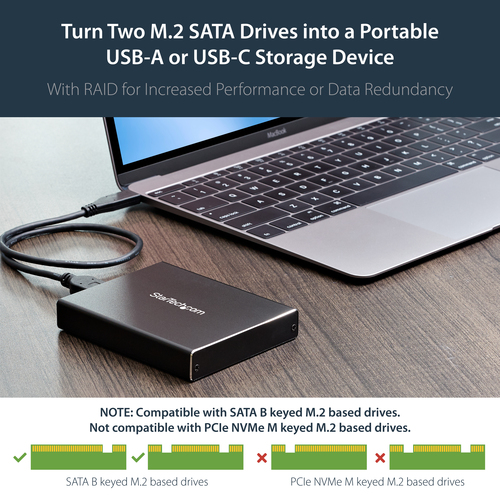

- Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
- Add fast, portable external storage to your USB-C or USB-A enabled laptop, tablet, smartphone or desktop computer
- Supports SSD TRIM to prolong drive lifespan and performance
Product Info
Turn two M.2 SATA drives into ultra-fast, portable storage with RAID for increased performance or redundancy
This dual M.2 SATA enclosure with RAID makes it easy to add ultra-fast, portable external storage to your USB-C or USB-A enabled laptop, tablet, smartphone or desktop computer. Its multiple RAID modes provide increased capacity, improved performance, or data redundancy.
Access your external data at greater speeds
Quickly access, transfer, and backup your files wherever you go. This dual-slot M.2 RAID enclosure enables you to easily access your data by creating a high-performance, ultra-portable storage solution using two M.2 (NGFF) SATA SSDs. It’s ideal for creative professionals, such as photographers and videographers, as well as professionals in corporate, educational and government sectors who need fast access to important data files, while out in the field or back at the office.

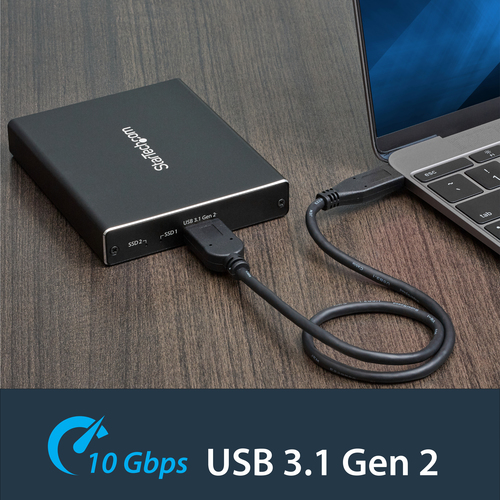

The RAID enclosure enables you to leverage the speed of your M.2 (NGFF) SATA drives by taking advantage of USB 3.1 Gen 2, with data transfer rates of up to 10Gbps. It ensures easy access to your files for data migration and data backups so that you can safeguard important data at all times.
Increase performance and data redundancy
With multiple RAID options, the M.2 RAID enclosure enables you to gain increased storage size, performance, or redundancy. You can enjoy the peace of mind of knowing your files are continually backed up, or take advantage of greater speed and capacity offered by a combined solution. The enclosure supports RAID 0, RAID 1, Spanning, and JBOD, enabling you to choose your preferred backup mode. It also supports SSD TRIM to prolong drive lifespan and performance.
Make your data more portable

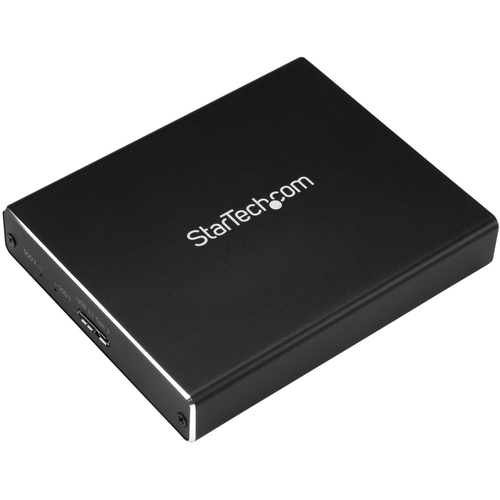

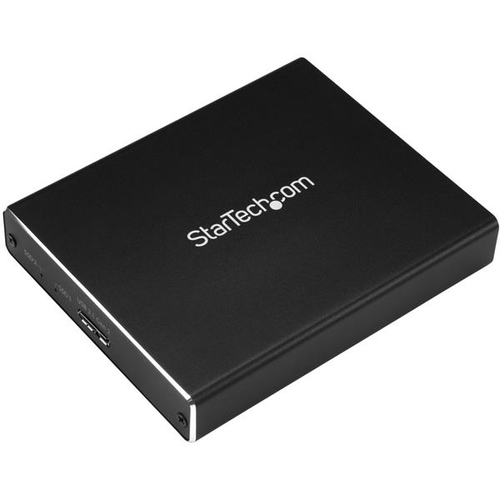

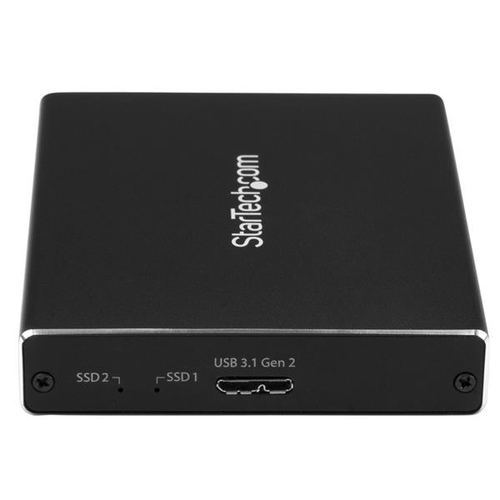

The dual M.2 SATA enclosure provides a highly portable storage solution. With its compact design, you can tuck it away inside your laptop bag or carrying case and take it anywhere - to the office, the lab, or for mobile use, so that you can access your data wherever you go. Engineered with a solid aluminum housing, the dual-slot M.2 SATA enclosure helps to safeguard your data wherever you go.

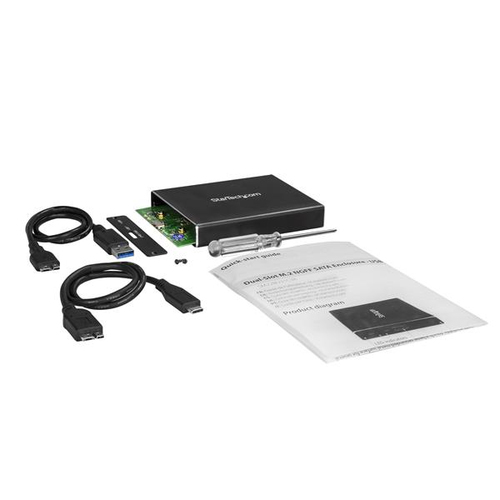

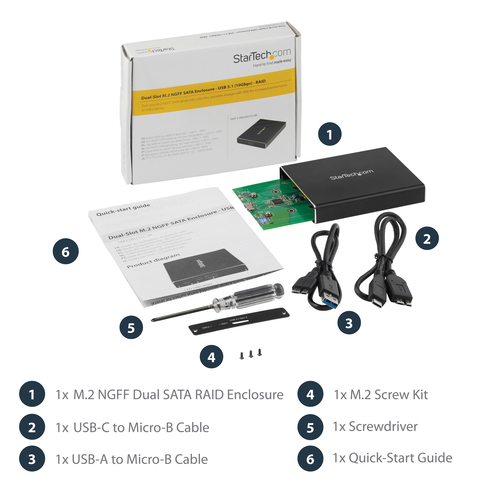

The M.2 SATA RAID enclosure is powered directly from the USB port on your device, so no external power is required. It comes with two USB cables (USB-C to Micro-B and USB-A to Micro-B) for flexible use with the latest laptops and tablets equipped with a USB-Type C port as well as legacy devices. The enclosure is OS independent, with no additional software or driver installation required, and is compatiIt’s also compatible with a Thunderbolt 3 USB-C port.

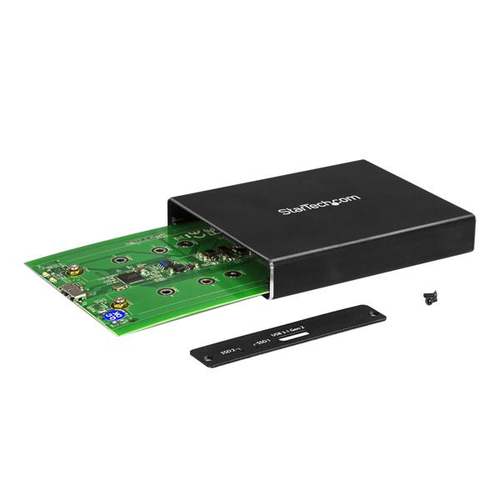

The SM22BU31C3R includes all required drive installation tools and hardware and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Maximize the performance of your M.2 (NGFF) SATA drives with USB 3.1 Gen 2 (10Gbps) connectivity
- Supports RAID 0, RAID 1, JBOD and SPAN (BIG) for optimal performance, capacity and redundancy
- Supports all common M.2 SATA SSDs, and enables you to mount multiple drive lengths: 30 mm (2230), 42 mm (2242), 60 mm (2260) and 80 mm (2280)
| Storage | |
|---|---|
| Number of storage drives supported | 2 |
| Storage drive size | M.2 |
| Supported storage drive interfaces | M.2, Serial ATA, Serial ATA II, Serial ATA III |
| Supported storage drive lengths | 80 mm |
| RAID levels | 0, 1, BIG, JBOD |
| Maximum storage capacity | 2 TB |
| Ports & interfaces | |
| USB connectivity | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| USB connector type | Micro-USB B |
| USB connector gender | Female |
| USB ports quantity | 1 |
| Integrated USB cable | No |
| Design | |
| Product type | SSD enclosure |
| Product colour | Black |
| Material | Aluminium |
| LED indicators | Yes |
| Certification | CE, FCC |
| Performance | |
| Data transfer rate | 10 Gbit/s |
| Chipset | ASMedia - ASM1352R |
| UASP support | Yes |
| Mean time between failures (MTBF) | 35000 h |
| Port multiplier | Yes |
| Power | |
| Power source type | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 96 g |
| Package width | 131 mm |
| Package depth | 165 mm |
| Package height | 32 mm |
| Package weight | 195 g |
| Packaging content | |
| Cables included | USB |
| Screws included | Yes |
| Screwdriver included | Yes |
| Manual | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
