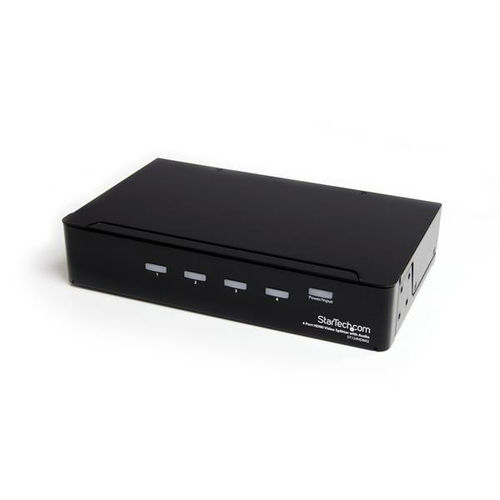

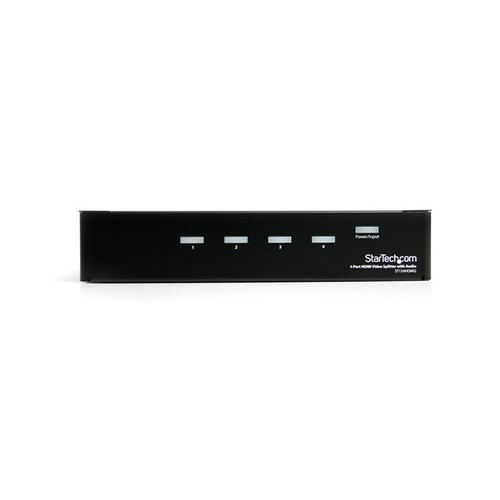

StarTech.com 4-port HDMI splitter and signal amplifier
- Brand
- STARTECH
- Product code
- ST124HDMI2
- SKU
- QSQW1JG4V6Q75
- 4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; HDMI splitter with signal amplifier splits an HDMI source into four Full HD 1080p video signals with no loss of quality
- EDID EMULATION: 1x4 HDMI splitter automatically passes EDID between your video source and displays native settings such as resolution and refresh rate

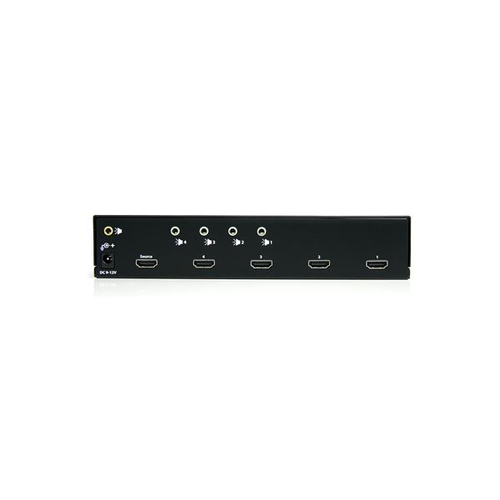

- AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Supports HDMI audio or 3.5mm stereo audio connection, allowing you to send your accompanying audio signal through the HDMI cable, or through a separate channel
- EASY SETUP: Reach up to 49ft (15m) with this HDMI splitter with signal amplifier; Simply connect the cables and power to start using; Wide screen monitor formats supported; TAA Compliant
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Splitter with rugged steel enclosure is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Product Info

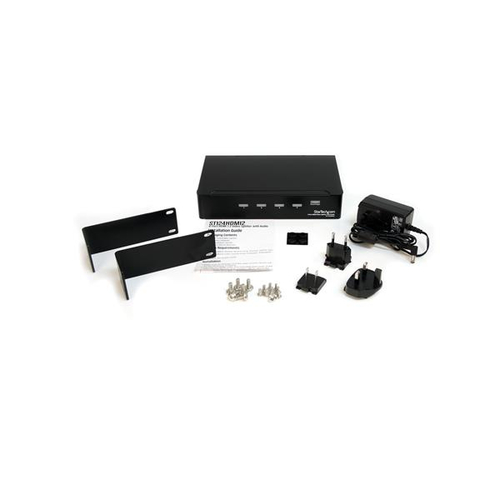

Split an HDMI® audio and video signal to four displays simultaneouslyThe ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality. Mounting brackets are included for a tidy, professional installation.Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 50 ft (15.2 m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| Video out | 4x HDMI |
| Video ports quantity | 4 |
| Audio ports quantity | 5 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Housing material | Steel |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA) |
| Supported video modes | 720p, 1080p |
| Certification | CE, FCC, TAA, REACH |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Weight & dimensions | |
| Width | 135 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 966 g |
| Packaging data | |
| Package width | 411 mm |
| Package depth | 214 mm |
| Package height | 90 mm |
| Package weight | 2 kg |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Included power plug types | AU, EU, NA, UK |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Audio support | Yes |
| Cascadable | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
