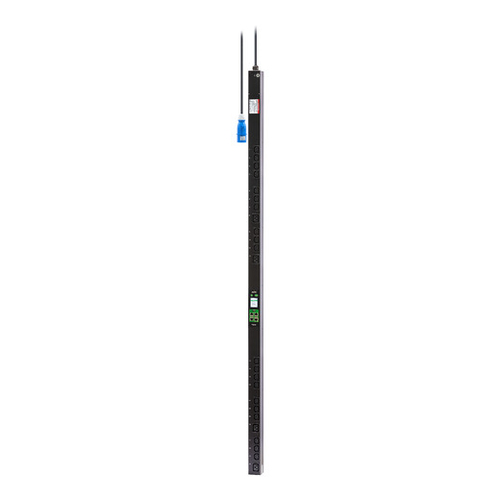

APC Easy Rack PDU, Metered Outlet, 0U, 1 Phase, 3.7kW, 230V, 16A, (20) C13 and (4) C19 outlets, IEC60309 2P+E inlet
- Brand
- APC HW
- Product code
- EPDU2116MBO
- SKU
- VTNUE80SAOVA7
- EAN/GTIN
- 731304733409
- Single-phase Metered 0U Black
- LCD
- 24 AC outlet(s) C13 coupler, C19 coupler
Product Info
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
| Design | |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Metal |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| Power | |
| Nominal input voltage | 230 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 16 A |
| Output voltage | 200-240 V |
| Weight & dimensions | |
| Width | 55 mm |
| Depth | 56 mm |
| Height | 1800 mm |
| Weight | 6.37 kg |
| Packaging data | |
| Package weight | 7.54 kg |
| Package width | 195 mm |
| Package depth | 130 mm |
| Package height | 2030 mm |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 15000 m |
