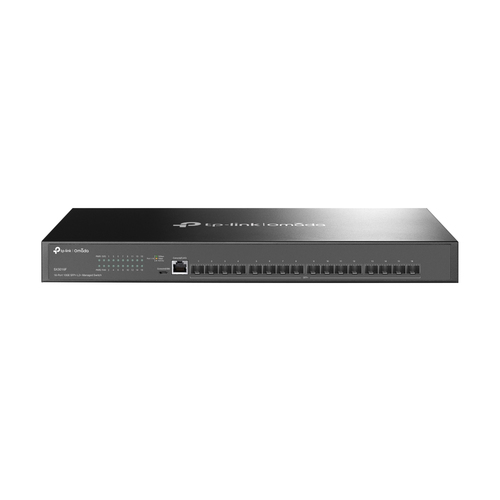

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- SX3016F
- SKU
- U29H6T6L4RPDS
- 16× 10 Gbps SFP+ slots
- 320 Gbps switching capacity
- Two power supply modules back each other up
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Product Info
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 16 |
| Console port | RJ-45/Micro-USB |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 320 Gbit/s |
| Forwarding rate | 238.08 Mpps |
| MAC address table | 32000 entries |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 24 MB |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 32.74 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 111.71 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Packaging data | |
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Package type | Box |
| Rack mount kit | Yes |
