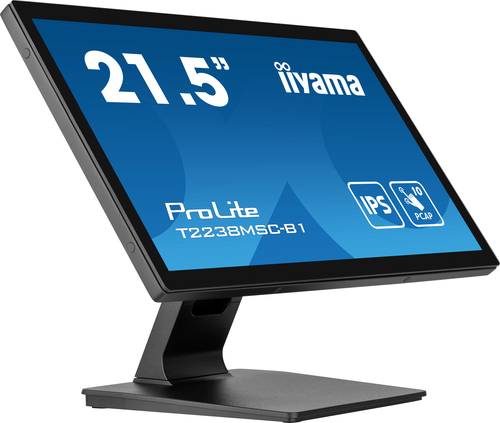

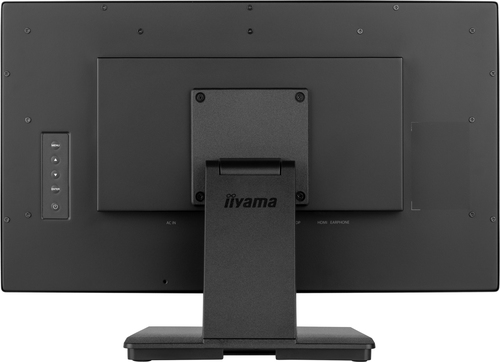

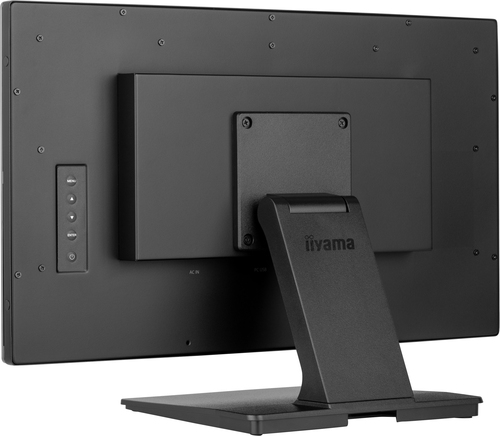

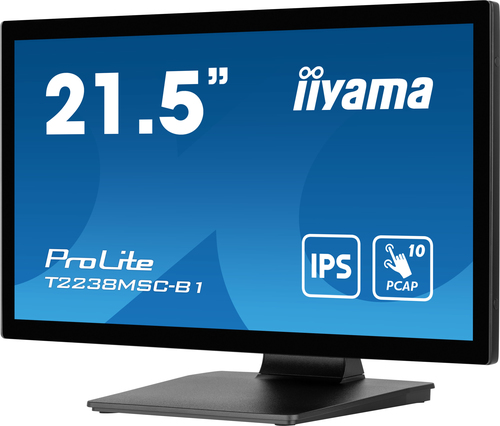

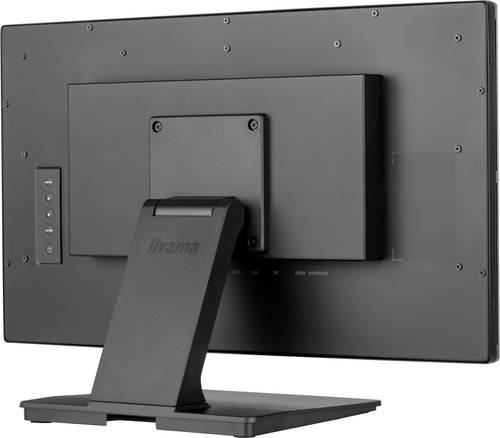

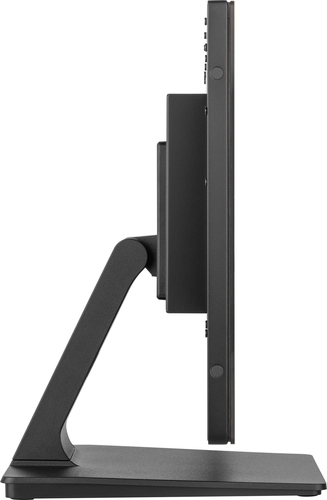

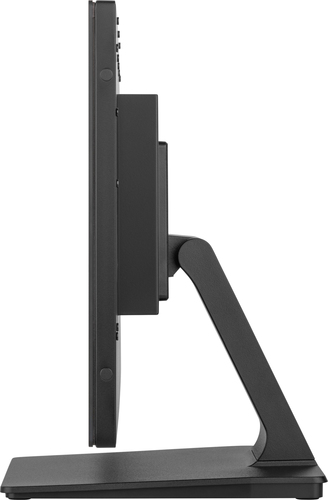

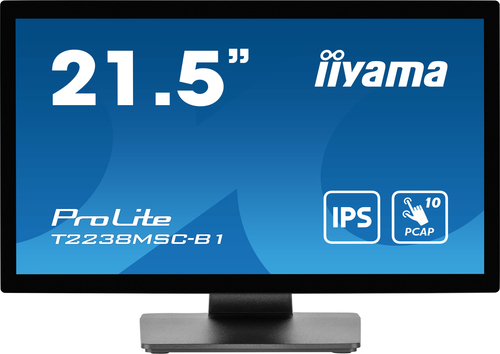

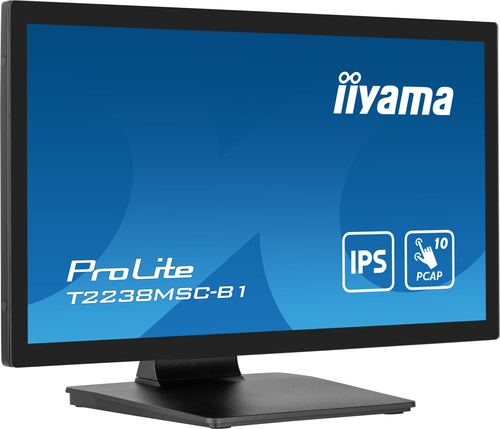

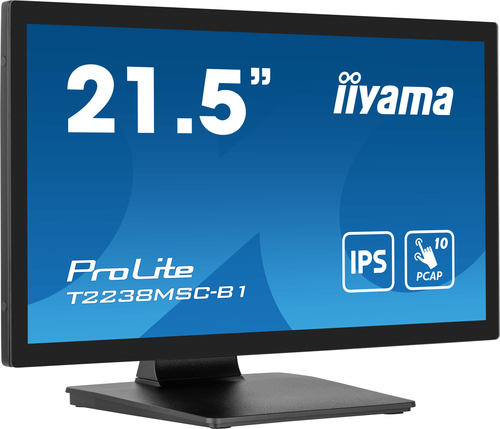

iiyama ProLite 21.5” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
- Brand
- Iiyama
- Product Family
- ProLite
- Product code
- T2238MSC-B1
- SKU
- E3WYIK75X85S4
- EAN/GTIN
- 4948570122899
- Office Touchscreen 54.6 cm (21.5") LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 5 ms 525 cd/m² 1000:1
- D 13 kWh 17 W
Product Info

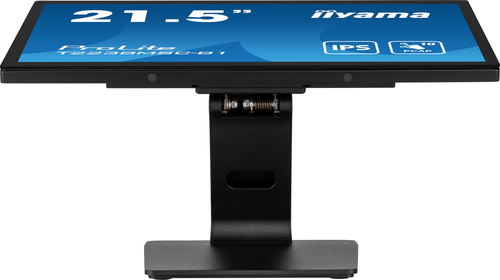

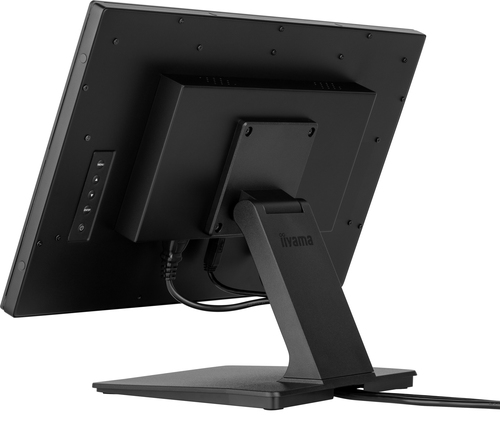

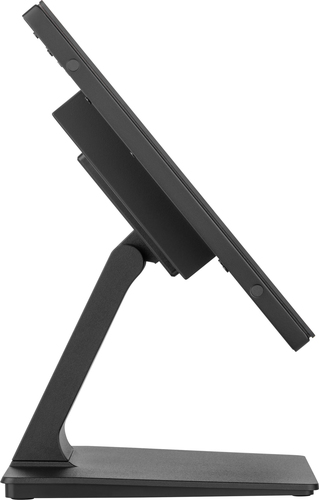

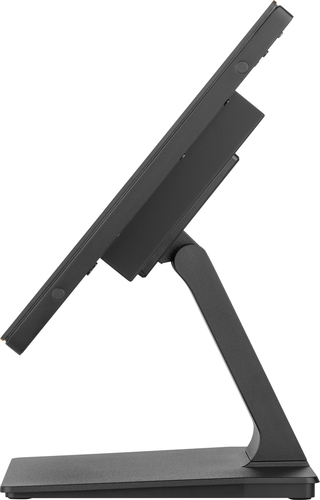

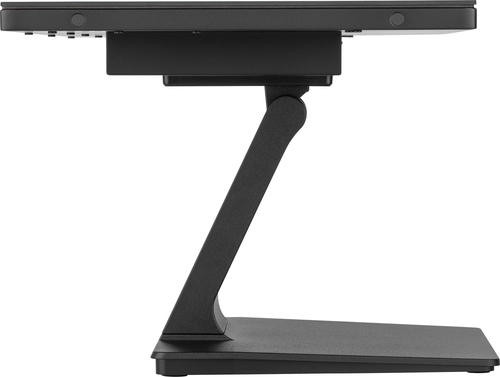

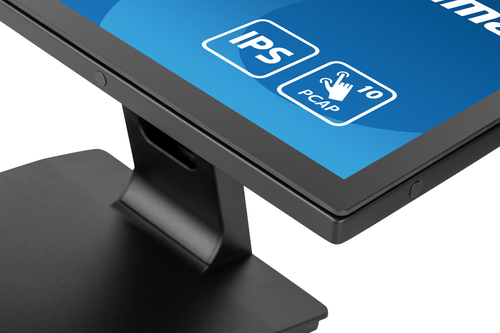

The Full HD (1920x1080) monitor ProLite T2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.
| Display | |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 600 cd/m² |
| Display brightness (typical) | 525 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.249 x 0.249 mm |
| Horizontal scan range | 30 - 83 kHz |
| Display diagonal (metric) | 54.5 cm |
| Second display effective viewing area | 479 x 260 mm |
| Performance | |
| Low Blue Light technology | Yes |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
| RMS rated power | 1 W |
| Design | |
| Market positioning | Office |
| Product colour | Black |
| Housing material | Metal |
| International Protection (IP) code | IP1X |
| Protection features | Waterproof |
| Glass thickness | 3.6 mm |

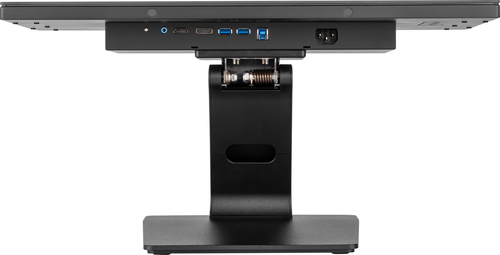

| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| USB Touch port | Yes |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| AC (power) in | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, Dutch, English, French, Japanese, Polish, Russian |
| Power | |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Packaging content | |
| Cables included | AC, HDMI, USB |
| Quick start guide | Yes |
| Weight & dimensions | |
| Width (with stand) | 512.5 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 353.5 mm |
| Weight (with stand) | 6.8 kg |
| Bezel width (side) | 1.7 cm |
| Bezel width (top) | 1.98 cm |
| Bezel width (bottom) | 1.98 cm |
| Packaging data | |
| Package width | 625 mm |
| Package depth | 150 mm |
| Package height | 430 mm |
| Package weight | 8.1 kg |
| Package type | Box |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 1530172 |
