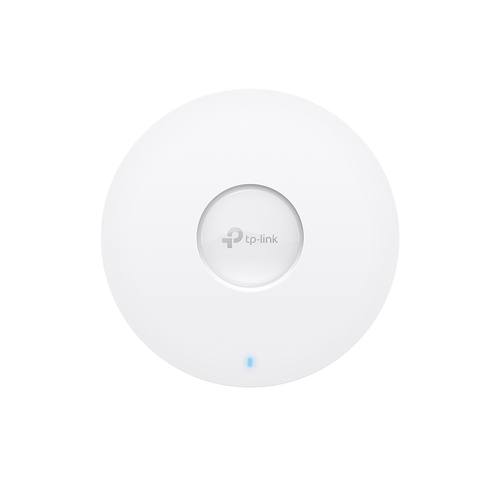

TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- EAP680
- SKU
- 1A23S19PZWB1O
- EAN/GTIN
- 4897098681534

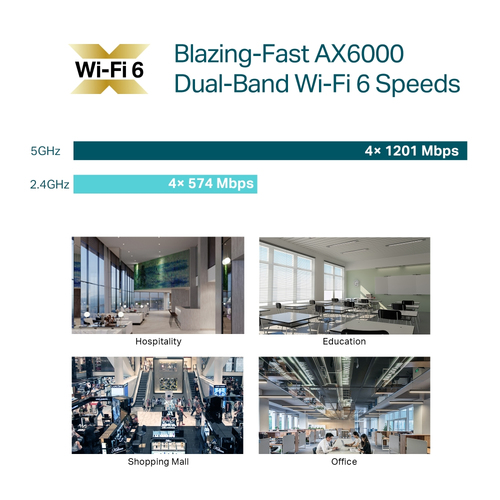

- Blazing-Fast WiFi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5952 Mbps WiFi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡

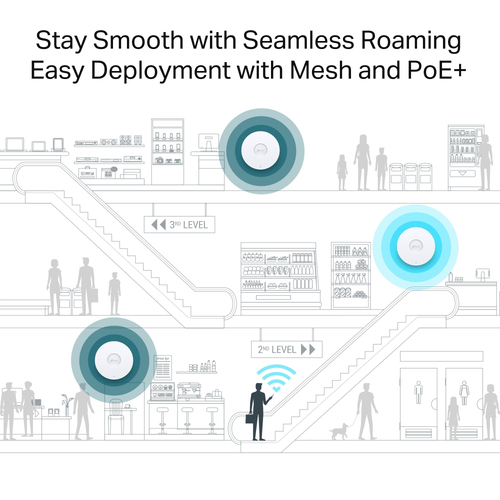

- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations
Product Info
Boost Your Business with High-Performance Business WiFi 6
Wi-Fi 6 Brings Real Power to Your Business

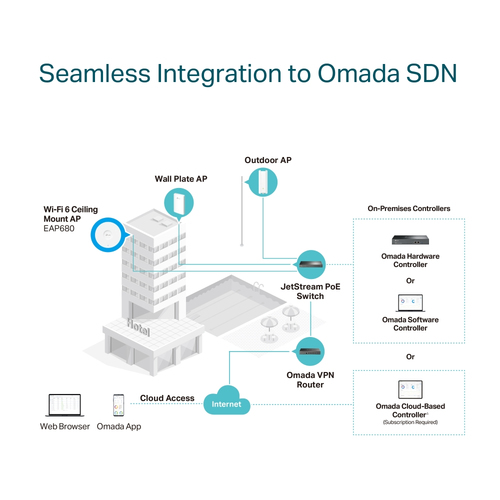

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance*
Provides powerful wireless performance that significantly reduces WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Easy Deployment & Higher Performance by Omada Mesh §
Easy Pairing, Less Wiring
With Mesh technology, Omada APs save you from redundant wires by wirelessly extending your WiFi signal farther and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between APs, while self-healing ensures your devices stay online even when one AP is disrupted.
Boosted Network Security and Efficiency
Secure Guest Network with up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Business with SMS Login
Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§
WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering
Automatically moves dual band devices onto the wider 5 GHz band for faster connections.
Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks.
Airtime Fairness
Increases average network throughput in heavily congested environments.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 4804 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4804 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Access Control List (ACL) | Yes |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |

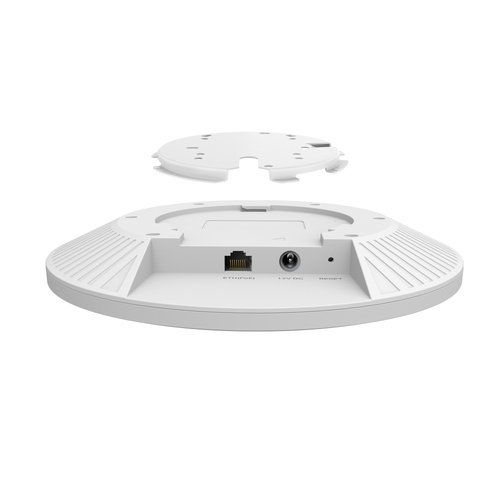

| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Design | |

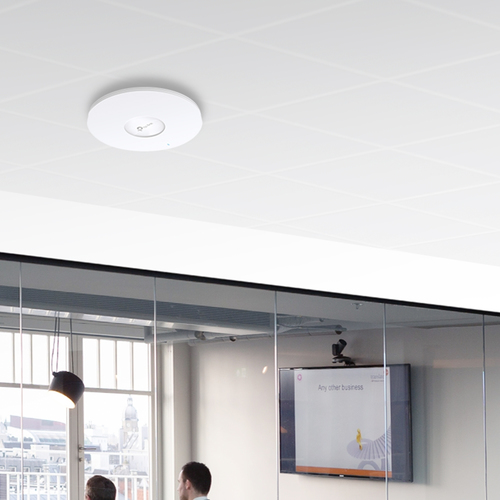

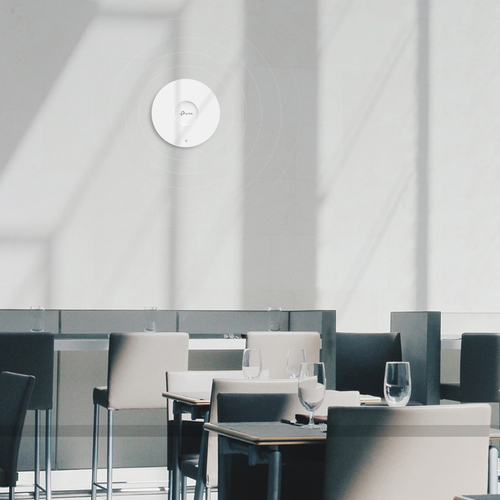

| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 5 dBi |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 220 mm |
| Height | 32.5 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
