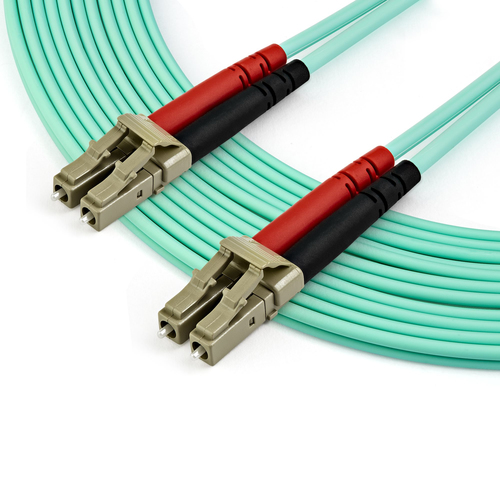

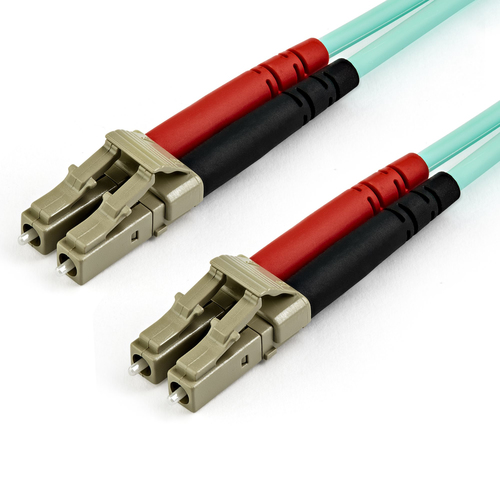

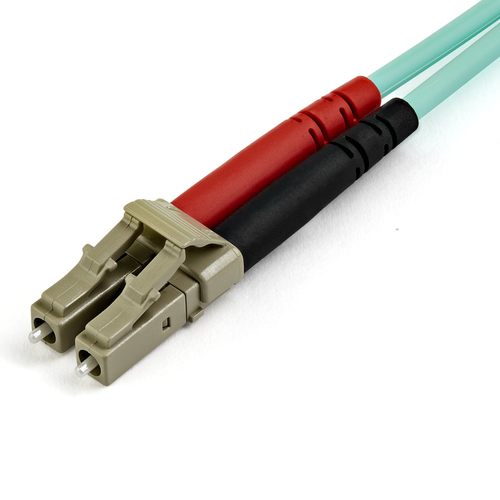

StarTech.com 7m (22ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord
- Brand
- STARTECH
- Product code
- A50FBLCLC7
- SKU
- 6Z1SGTR4WNMEN
- EAN/GTIN
- 0065030881845
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
- SPECS: 7m (23ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Product Info
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.Built for PerformanceWith laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.Reliable ConnectionEach OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.High-Quality ConstructionHoused in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage
| Features | |
|---|---|
| Cable length | 7 m |
| Fibre optic type | OM3 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Aqua colour |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850 nm |
| Data transfer rate | 100 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Technical details | |
| Sustainability certificates | RoHS, CE |
| Doesn't contain | Halogen |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Weight | 96 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 215 mm |
| Package depth | 200 mm |
| Package height | 20 mm |
| Package weight | 106 g |
| Logistics data | |
| Master (outer) case width | 410 mm |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 435 mm |
| Products per master (outer) case | 120 pc(s) |
