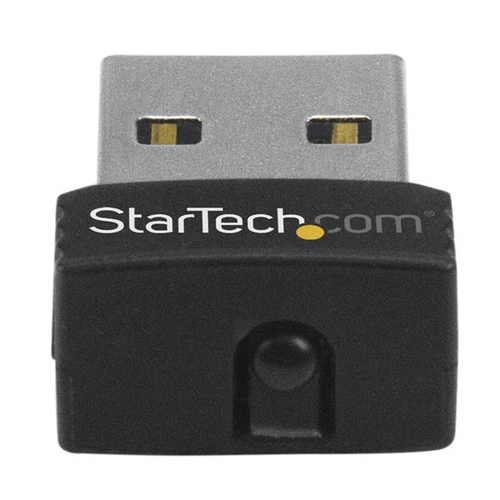

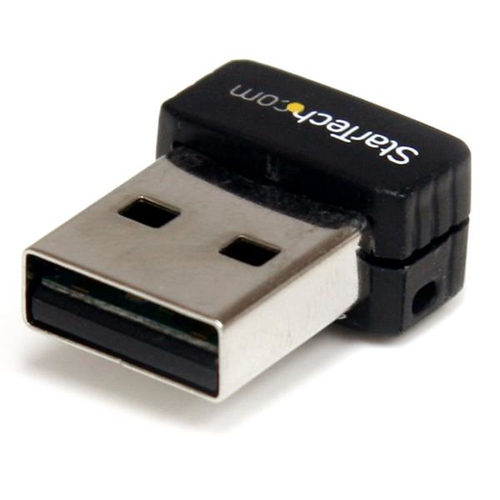

StarTech.com USB 150Mbps Mini Wireless N Network Adapter - 802.11n/g 1T1R
- Brand
- STARTECH
- Product code
- USB150WN1X1
- SKU
- 8HQN7K9JVGWLY
- EAN/GTIN
- 0065030845038
- Wireless
- USB 2.0 WLAN
- 150 Mbit/s
- Wi-Fi Single-band (2.4 GHz)
- Component for: PC/Laptop Chipset: Realtek - RTL8188EUS
Product Info
The USB150WN1X1 USB 802.11N Mini Wireless Network Adapter allows almost any USB-enabled desktop, laptop or netbook computer system to connect to 'n', 'g' or 'b' wireless networks. Using a 1T1R (1 Transmitter/1 Receiver) design over the 2.4GHz frequency in an extremely compact form factor, the USB adapter is capable of reaching up to 150Mbps over an 802.11n network while taking up minimal space.
Backward compatible with 802.11b/g networks (11/54Mbps), this adapter is a versatile wireless networking solution. With support for standard and advanced security options such as WEP, WPA, as well as wireless Quality of Service (QoS) support, and quick and easy setup through WPS, this USB 2.0 adapter is backed by StarTech.com's 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.
The StarTech.com Advantage
- Compatible with 802.11b/g/n Wi-Fi networks and a small form factor, delivers a versatile, portable wireless networking solution.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| USB version | 2.0 |
| Network | |
| Maximum data transfer rate | 150 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 11,54,150 Mbit/s |
| Security algorithms | 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA-AES, WPA2 |
| Full duplex | Yes |
| Maximum operating distance | 300 m |
| Maximum indoor range | 100 m |
| Maximum outdoor range | 300 m |
| Design | |
| Component for | PC/Laptop |
| Product colour | Black |
| Internal | No |
| Chipset | Realtek - RTL8188EUS |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 44000 h |
| Certification | CE, FCC, REACH |
| Power | |
| Output voltage | 5 V |
| USB powered | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 15 mm |
| Depth | 19 mm |
| Height | 8 mm |
| Weight | 2.2 g |
| Packaging data | |
| Drivers included | Yes |
| Package width | 111 mm |
| Package depth | 172 mm |
| Package height | 14 mm |
| Package weight | 42 g |

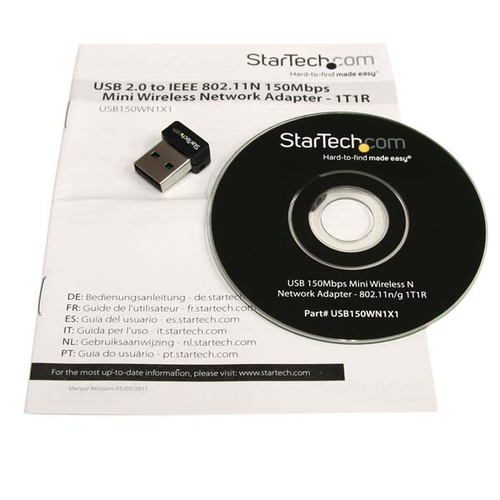

| Packaging content | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Housing material | Plastic |
