StarTech.com Brocade 10G-SFPP-BXD-40K Compatible SFP+ Module - 10GBASE-BX-D - 10 GbE Gigabit Ethernet BiDi Fiber (SMF)
- Brand
- STARTECH
- Product code
- 10G-SFPP-BXD-40K-ST
- SKU
- 04Z1DMRJWBGDD
- EAN/GTIN
- 0065030885447
- 100% BROCADE 10G-SFPP-BXD-40K COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible Brocade switches and routers to deliver reliable 10GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 10GBASE-BX-D / 10Gbps / 10G Bi-Directional Downstream / Single Mode (SMF) / LC Connector / 1330nmTx/1270nmRx / Digital Diagnostic Monitoring (DDM) / Distances up to 40km (24.8mi)
- PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Brocade routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Product Info

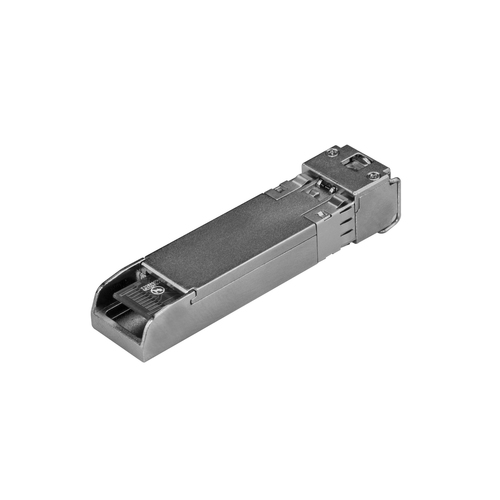

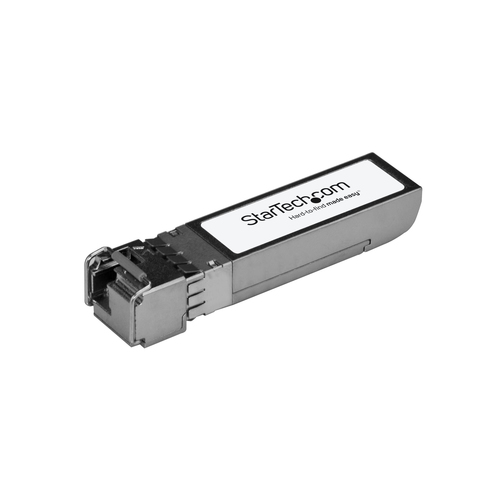

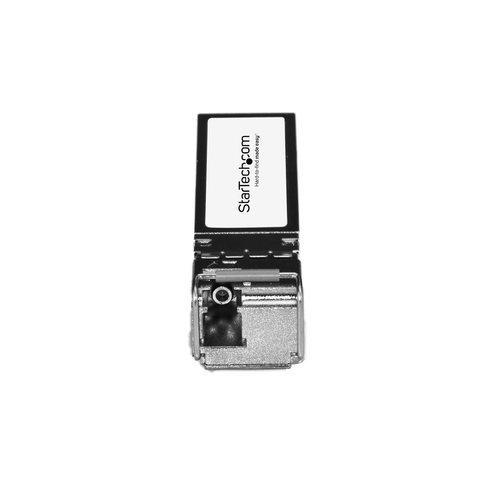

10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime WarrantyThe 10G-SFPP-BXD-40K-ST is a Brocade 10G-SFPP-BXD-40K compatible downstream fiber SFP transceiver which pairs with StarTech.com's 10G-SFPP-BXU-40K-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible Brocade switches and routers. The SFP+ transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1330nmTx/1270nmRx• Maximum Data Transfer Rate: 10Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 40 km (24.8 mi)• MTBF: 646,156,559 hours• Power Consumption:• DDM: YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | BX-D |
| Maximum transfer distance | 40000 m |
| Tx wavelength (max) | 1330 nm |
| Rx wavelength (max) | 1270 nm |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 646156559 h |
| Brand compatibility | Brocade |
| Compatible products | 10G-SFPP-BXD-40K |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1.6 W |
| Weight & dimensions | |
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 12.6 mm |
| Weight | 24 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Logistics data | |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
