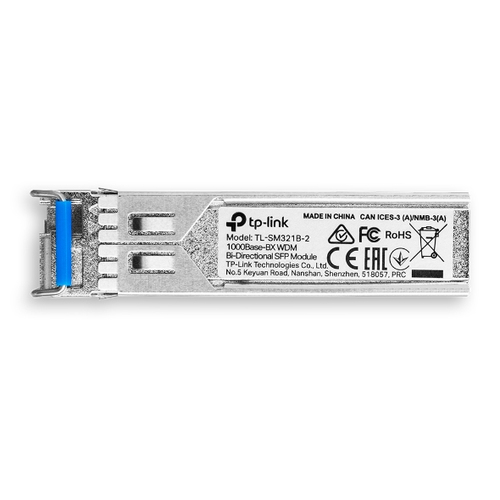

TP-Link TL-SM321B network transceiver module

SM321B-2 - 1210002612104

TP-Link TL-SM321B network transceiver module Fiber optic 1250 Mbit/s SFP

Brand: TP-Link
Product code: SM321B-2
SKU: MZXF5MY8G216O
EAN/GTIN: 1210002612104

WDM Bi-Directional SFP Module
Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

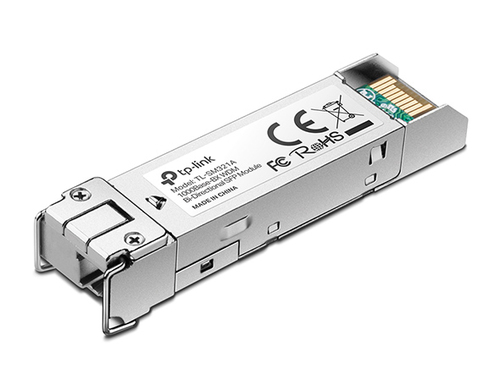

Pairing with TL-SM321A or MC111CS

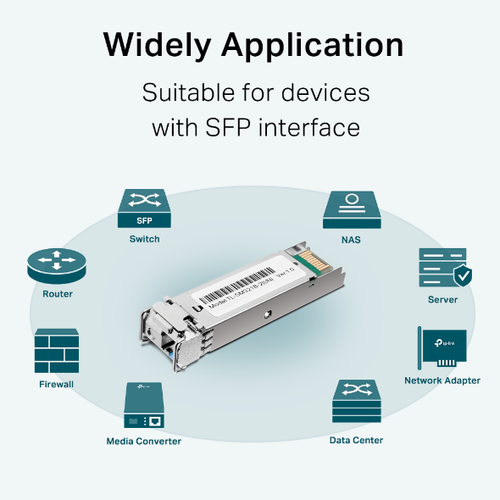

Compatible with T3700 series, T2700 series, T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L

€32.27 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

1000Base-BX, WDM, Bi-Directional, SFP

TP-Link TL-SM321B. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Metallic. Compliance certificates: RoHS, Certification: FCC, CE. Width: 55.4 mm, Depth: 14.6 mm, Height: 12.9 mm. Quantity per pack: 1 pc(s)

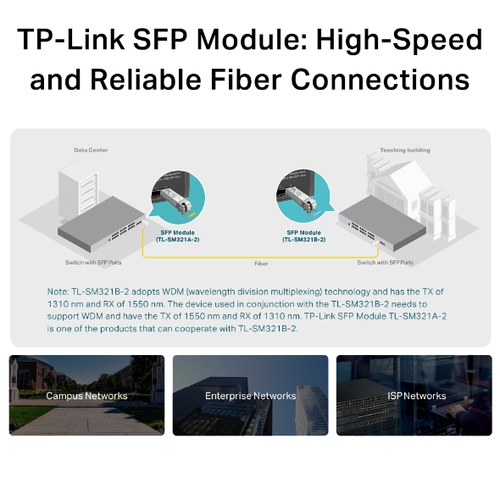

TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.

Specifications

Performance

SFP transceiver type Fiber optic

Maximum data transfer rate 1250 Mbit/s

Interface type SFP

Single-mode fiber (SMF) supported Yes

Multi-mode fiber (MMF) supported No

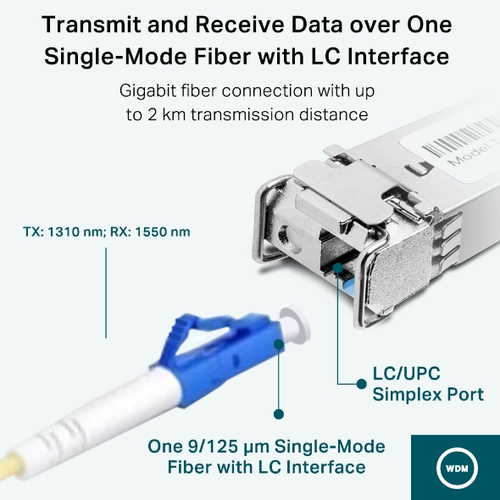

Fiber optic connector LC

Fiber cable diameters supported (core/cladding) 9/125 µm

SFP transceiver standard BX

Maximum transfer distance 1000 m

Tx wavelength (max) 1310 nm

Rx wavelength (max) 1550 nm

Networking standards IEEE 802.3z

Wavelength-division multiplexing (WDM) Yes

Features

Product colour Metallic

Certificates

Compliance certificates RoHS

Certification FCC, CE

Operational conditions

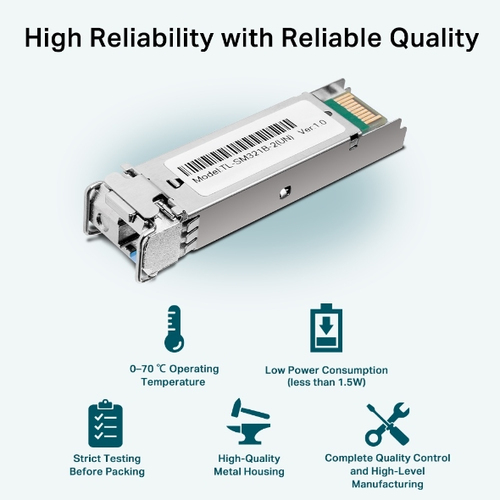

Operating temperature (T-T) 0 - 70 °C

Storage temperature (T-T) -40 - 80 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Weight & dimensions

Width 55.4 mm

Depth 14.6 mm

Height 12.9 mm

Packaging content

Quantity per pack 1 pc(s)

Packaging data

User guide Yes

Package width 81.5 mm

Package depth 122.5 mm

Package height 38.5 mm

Package weight 60 g

Logistics data

Harmonized System (HS) code 85369010
