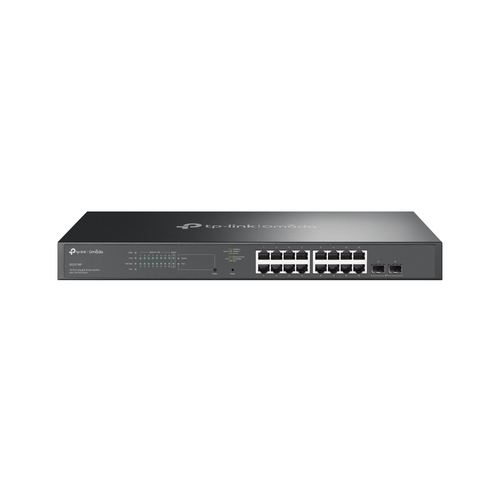

TP-Link Omada SG2218P network switch

SG2218P - 4897098689516

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+

Brand: TP-Link
Product Family: Omada
Product code: SG2218P
SKU: LYBN1UE7KHVSF
EAN/GTIN: 4897098689516

16× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP Slots
150 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Durable metal casing and rackmountable design

€263.07 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

16× 10/100/1000 Mbps PoE+ RJ45, 2× Gigabit SFP Slots, 36 Gbps, 8K MAC, 9 KB Jumbo, 440 × 180 × 44 mm

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 26.78 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The
switches can be managed by Omada SDN Controller, which provides professional and reliable one-step
solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing
provide cost-effective networking solutions for small and medium-sized businesses without sacrificing
enhanced usability and strong performance.

Specifications

Management features

Switch type Managed

Switch layer L2/L2+

Quality of Service (QoS) support Yes

Web-based management Yes

Cloud-managed Yes

ARP inspection Yes

Configuring Location Settings (CLI) Yes

System event log Yes

MIB support MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 16

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

SFP module slots quantity 2

Network

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support No

IP routing Yes

Policy-based routing Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Auto MDI/MDI-X Yes

Spanning tree protocol Yes

Ethernet LAN data rates 10,100,1000 Mbit/s

Auto-negotiation Yes

VLAN support Yes

Data transmission

Switching capacity 26.78 Gbit/s

Forwarding rate 26.78 Mpps

MAC address table 8000 entries

Jumbo frames support Yes

Jumbo frames 9

Packet buffer memory 4.1 MB

Security

DHCP features DHCP client, DHCP relay, DHCP snooping

Access Control List (ACL) Yes

MAC address filtering Yes

Static port security Yes

SSH/SSL support Yes

Loop protection Yes

BPDU filtering/protection Yes

Authentication MAC-based authentication, Port-based authentication

Multicast features

Multicast support Yes

Multicast features Multicast forwarding

Design

Rack mounting Yes

Form factor 1U

Product colour Black

LED indicators Yes

Certification CE, FCC, RoHS

Power

Power source DC/PoE

Power supply included Yes

AC input voltage 100 - 240 V

AC input frequency 50/60 Hz

Power consumption (max) 181.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Total Power over Ethernet (PoE) budget 150 W

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Heat dissipation 619.06 BTU/h

Weight & dimensions

Width 440 mm

Depth 180 mm

Height 44 mm

Packaging data

Cables included LAN (RJ-45)

User guide Yes

Package type Box
