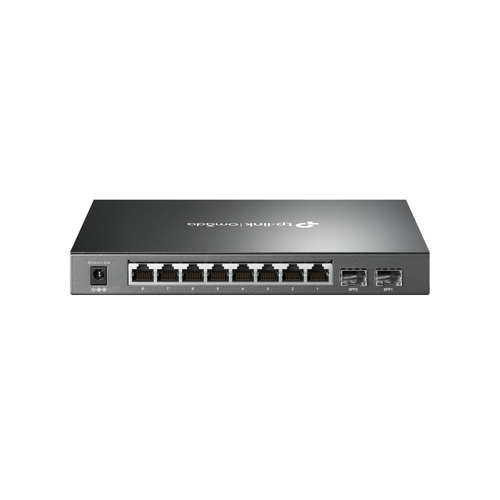

TP-Link Omada SG2210P network switch

SG2210P - 6935364030704

TP-Link JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots

Brand: TP-Link
Product Family: Omada
Product code: SG2210P
SKU: 1UYIYQWFQKEME
EAN/GTIN: 6935364030704

8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
61 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

€151.92 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

20 Gbps, 14.9 Mbps, 100-240 V, 50/60 Hz, 8x 10/100/100 Mbps RJ45, 2x 1000 Mbps SFP, Fanless

TP-Link JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE)

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features

Switch type Managed

Switch layer L2/L2+

Quality of Service (QoS) support Yes

Web-based management Yes

Cloud-managed Yes

ARP inspection Yes

Configuring Location Settings (CLI) Yes

System event log Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 8

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

SFP module slots quantity 2

Power connector DC-in jack

Network

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support No

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Auto MDI/MDI-X Yes

Spanning tree protocol Yes

Auto-negotiation Yes

VLAN support Yes

Data transmission

Switching capacity 20 Gbit/s

Forwarding rate 14.88 Mpps

MAC address table 8000 entries

Jumbo frames support Yes

Jumbo frames 9000

Packet buffer memory 4.1 MB

Security

Access Control List (ACL) Yes

IGMP snooping Yes

Static port security Yes

SSH/SSL support Yes

BPDU filtering/protection Yes

IP-MAC-Port binding Yes

Authentication MAC-based authentication, Port-based authentication

Multicast features

Multicast support Yes

Multicast Listener Discovery (MLD) snooping Y

Protocols

IPv4 & IPv6 features Dual stack IPv4/IPv6

Design

Product colour Black

LED indicators Yes

Certification CE, FCC, RoHS

Performance

Firmware upgradeable Yes

Power

Power source DC/PoE

Power supply included Yes

AC input voltage 100 - 240 V

AC input frequency 50/60 Hz

Power consumption (max) 77.8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Weight & dimensions

Width 209 mm

Depth 126 mm

Height 26 mm

Packaging data

Cables included AC

Manual Yes
