iiyama ProLite 17" Projective Capacitive 10pt touch screen with AG-coating
- Brand
- Iiyama
- Product Family
- ProLite
- Product code
- T1732MSC-B1SAG
- SKU
- JQ9ZBBAJ1KZ48
- EAN/GTIN
- 4948570122158
- Business Touchscreen 43.2 cm (17") LED TN
- Full HD 1280 x 1024 pixels 5:4
- 5 ms 250 cd/m² 1000:1
- E 12 kWh 20 W
Product Info

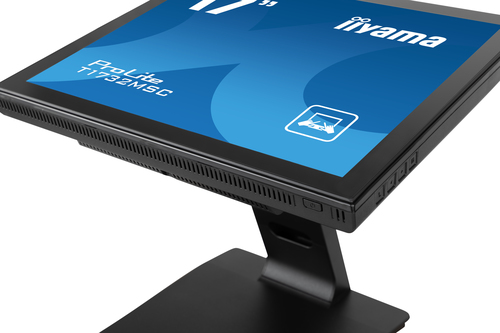

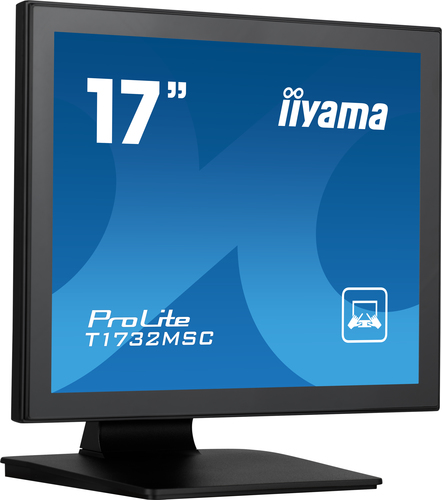

17" Projective Capacitive 10pt touch screen with AG-coating

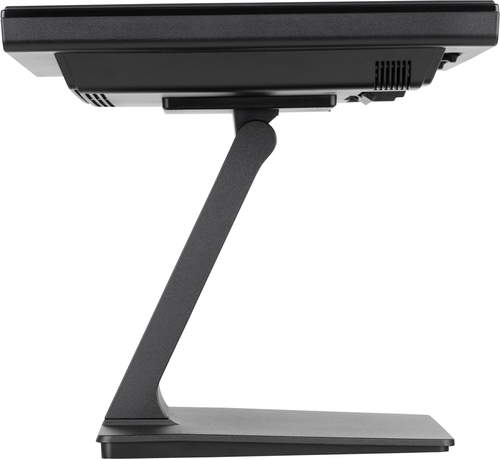

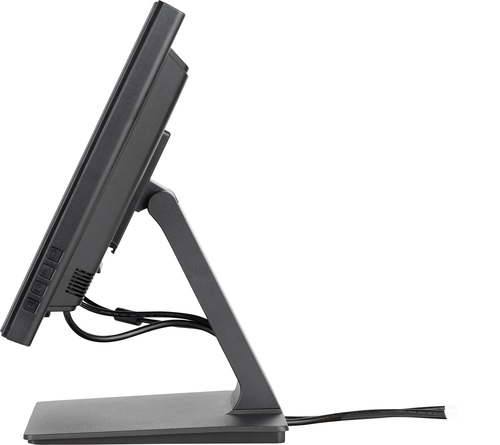

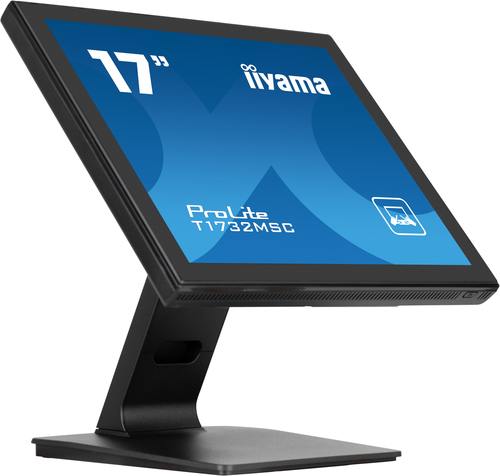

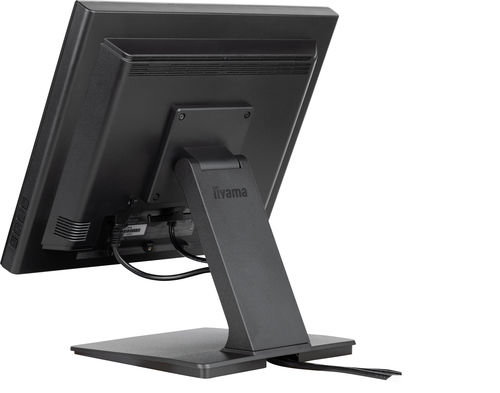

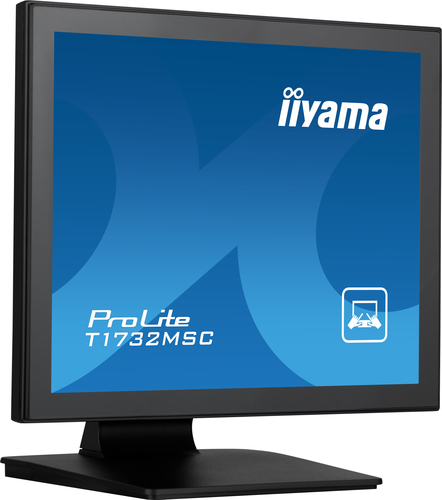

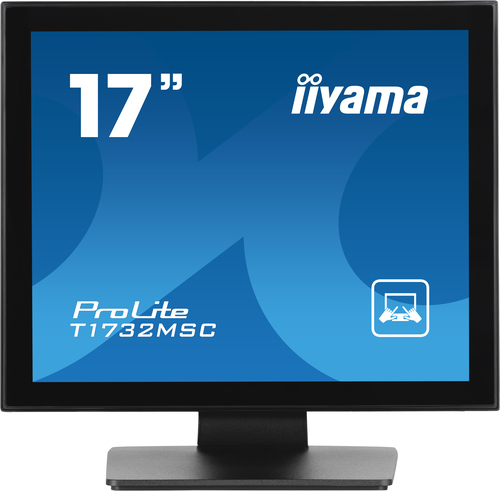

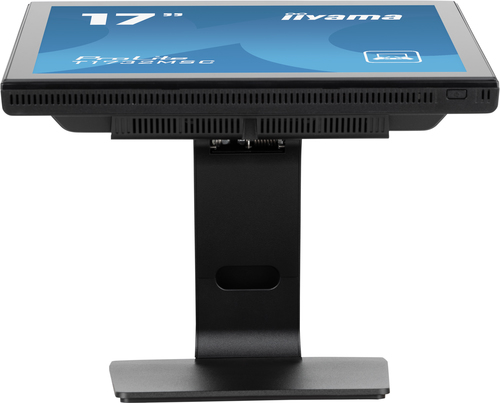

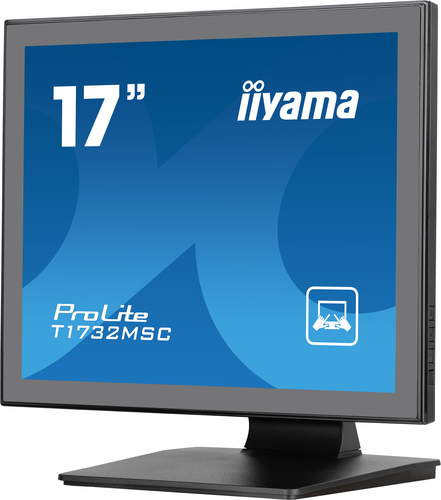

The ProLite T1732MSC-B1SAG 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
| Display | |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| HD type | Full HD |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Panel type | TN |
| Backlight type | LED |
| Touchscreen | Yes |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 215 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 27.1 cm |
| Viewable size, vertical | 33.8 cm |
| Display diagonal (metric) | 43 cm |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Feet colour | Black |
| International Protection (IP) code | IP54 |
| Glass thickness | 1.2 mm |

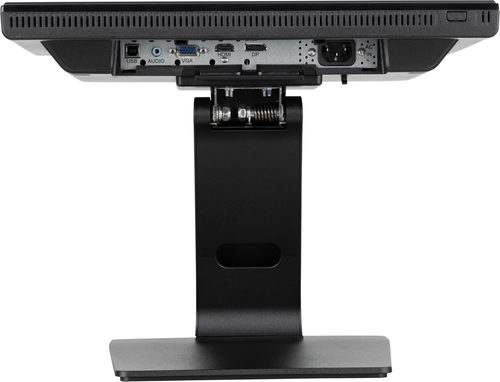

| Ports & interfaces | |
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio output | Yes |
| Headphone outputs | 1 |
| HDCP | Yes |
| DC-in jack | Yes |
| Ergonomics | |

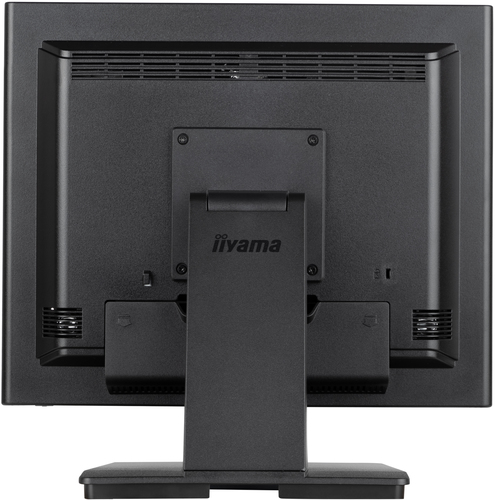

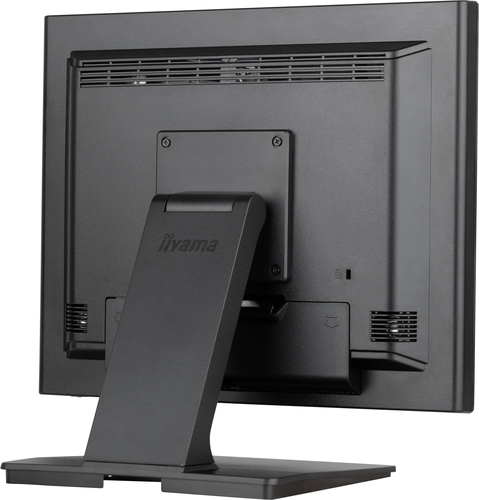

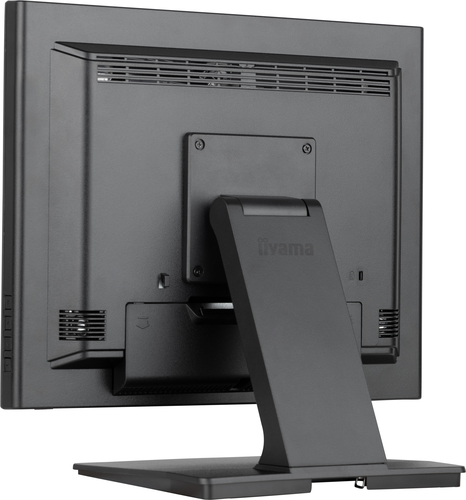

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |

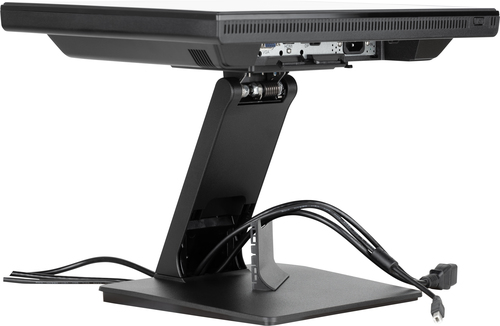

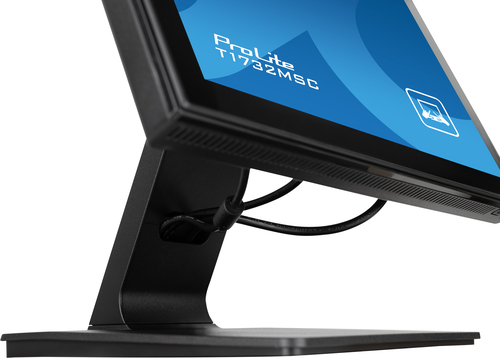

| Cable management | Yes |

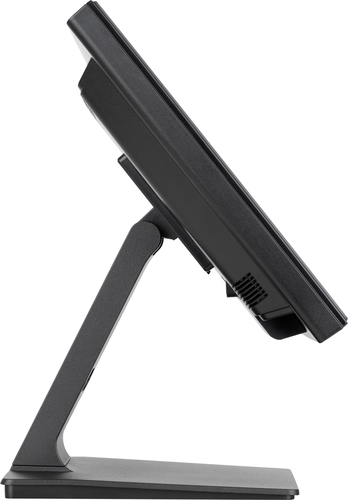

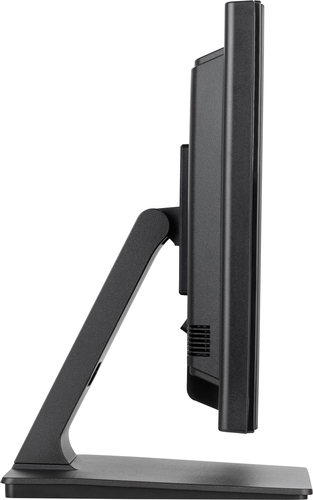

| Tilt adjustment | Yes |
| Tilt angle range | 5 - 90° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Packaging content | |
| Stand included | Yes |
| Cables included | Audio, DisplayPort, HDMI, Power, USB |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Weight & dimensions | |
| Width (with stand) | 387 mm |
| Depth (with stand) | 240 mm |
| Height (with stand) | 378 mm |
| Weight (with stand) | 4.9 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, EAC, ErP, REACH, RoHS, UKCA, WEEE, cUL |
| European Product Registry for Energy Labelling (EPREL) code | 1518684 |
