StarTech.com ST124HDBT AV extender

StarTech.com 3-Port HDBaseT Extender Kit with 3 Receivers - 1x3 HDMI over CAT5e Splitter - Up to 4K


Brand
STARTECH
Product code
ST124HDBT
SKU
3JLZW37W2RZFK
EAN/GTIN
0065030864558
  • Extends your HDMI video signal to three remote HDMI displays, each in different locations

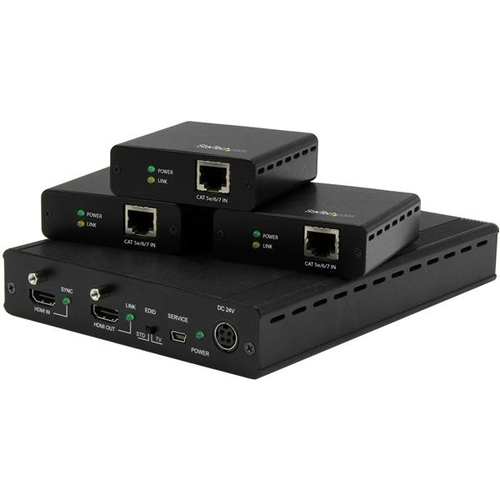

  • A complete extender kit that includes the transmitter and three remote receivers
  • Maintains UHD 4K up to 115 feet away, and HD 1080p up to 230 ft. away, over non-proprietary CAT5e or CAT6 cabling
  • Mountable, to install securely and out of the way
  • Dolby® TrueHD, DTS-HD MA Audio
€545.41 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

Distribute your HDMI source to three remote displays over standard CAT5e, CAT6 or CAT7 cableThis 3-Port HDBaseT™ extender kit lets you extend an HDMI® source to three remote locations, using HDBaseT technology. The kit includes three remote receiver units, and the transmitter features a local HDMI output, which gives you the ability to keep a fourth HDMI display at your local video source.A complete extender kit that includes transmitter and receiversThis all-in-one extender kit saves you the complications and compatibility issues that can happen if you're not using the correct receivers. It’s perfect for use in corporate environments such as small or large offices, or in retail, hospitality, and educational establishments.Astonishing 4K picture quality from an impressive distanceWith the A/V industry adopting 4K as its new high-resolution standard, long-range video distribution can be difficult, especially considering the 4K distance limitations on standard HDMI cables. You’ll be amazed at how this HDBase-T extender kit can deliver your video signal to three different locations while maintaining 4K Ultra HD picture quality. You get four times the resolution of high-definition 1080p, even at 115 feet (35 m) away from your video source.The extender is also backward compatible with 1080p at 230 feet (70 m), so you can comfortably use it to make any video source look great.Professional installationHDBaseT technology offers a single-cable installation, so you can integrate this solution seamlessly using your existing CAT5e or CAT6 infrastructure. Plus, each device included with the HDBaseT extender kit is mountable, so you can keep the equipment out of sight in an equipment rack, or on a wall. This helps to reduce clutter and ensure a professional installation that doesn't draw your viewers' attention away from the content on your display. It’s perfect for customer-facing displays in bars or restaurants.What is HDBaseT?HDBaseT is a standardized, zero-latency video technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable.Offering greater versatility than traditional HDMI extenders, and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer. It can do so much, with just a single cable.The ST124HDBT is backed by a 2-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

Features
Type AV transmitter & receiver
Maximum resolution 4096 x 2160 pixels
Cable types supported Cat5e, Cat6, Cat7
Maximum transfer distance 70 m
Maximum refresh rate 30 Hz
LED indicators Link, Power
Supported video modes 720p, 1080p, 2160p
Supported graphics resolutions 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
Rack mounting Yes
HDCP & EDID bypass Yes
Daisy chain Yes
Certification CE, FCC, TAA
Ports & interfaces
RJ-45 input ports 3
RJ-45 output ports 3
HDMI in 1
Number of HDMI outputs 4
Remote (IR) input 1
Remote (IR) output 1
DC-in jack Yes
Power
AC input voltage 100 - 240 V
Operating voltage 24 V
Input current 1.5 A
Output current 2.7 A
Power consumption (typical) 64.8 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 145 mm
Depth 200 mm
Height 30 mm
Weight 1 kg
Packaging data
Package width 299 mm
Package depth 363 mm
Package height 98 mm
Package weight 2.6 kg

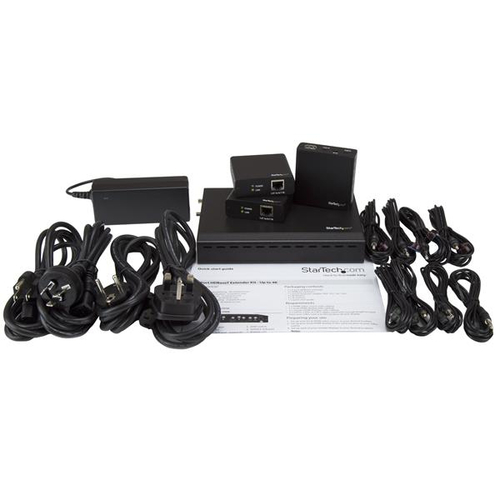

Packaging content
AC adapter included Yes
Included power plug types AU, EU, NA, UK
Quick start guide Yes
IR blaster included Yes
IR receiver included Yes
Technical details
Audio support Yes
Country of origin Taiwan
Sustainability certificates RoHS
Logistics data
Master (outer) case width 374 mm
Master (outer) case length 510 mm
Master (outer) case height 319 mm
Products per master (outer) case 5 pc(s)
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
