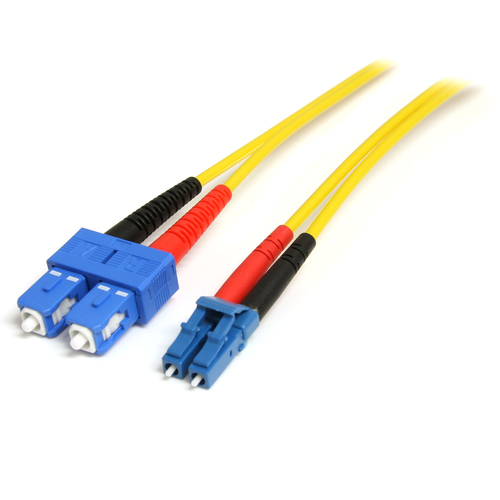

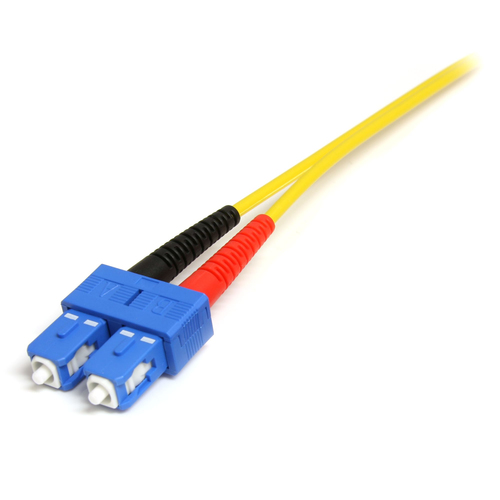

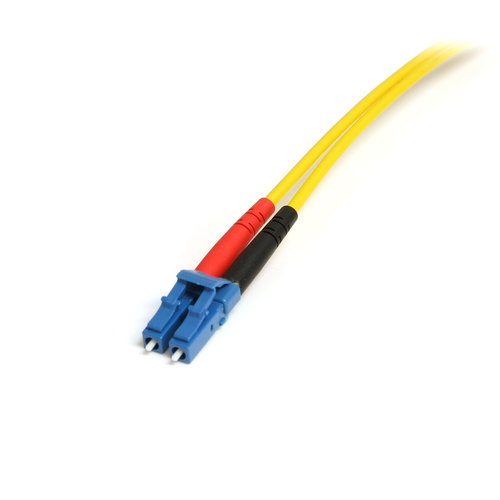

StarTech.com 1m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH Fiber Jumper Cord - LC/SC
- Brand
- STARTECH
- Product code
- SMFIBLCSC1
- SKU
- I0K0IV2VBQN0I
- EAN/GTIN
- 0065030810159
- OS1 (9/125)
- LSZH (Low-Smoke, Zero-Halogen) cable jacket
- Attenuation loss meets or exceeds industry standards
- Molded connectors
Product Info
Connect fiber network devices for high-speed transfers with LSZH rated cableThe SMFIBLCSC1 1m LC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.The StarTech.com Advantage
| Features | |
|---|---|
| Cable length | 1 m |
| Fibre optic type | OS1 |
| Connector 1 | LC |
| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Yellow |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Data transfer rate | 100 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Weight | 18 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 6 mm |
| Package depth | 199 mm |
| Package height | 211 mm |
| Package weight | 30 g |
| Logistics data | |
| Master (outer) case width | 335 mm |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 235 mm |
| Master (outer) case height | 108 mm |
| Products per master (outer) case | 320 pc(s) |
