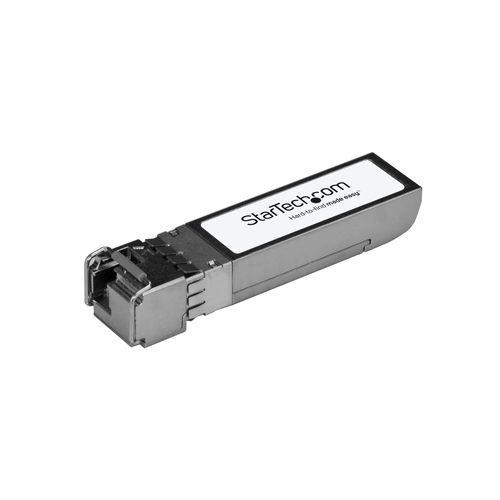

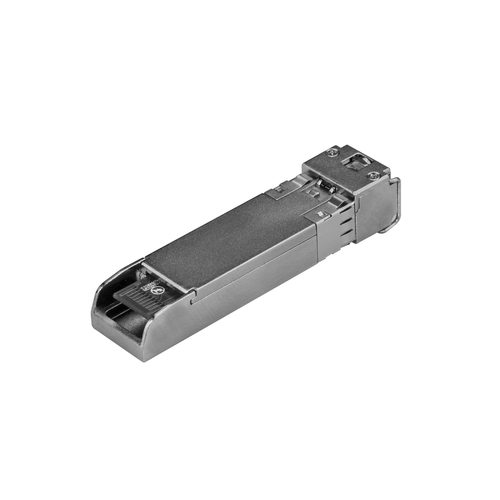

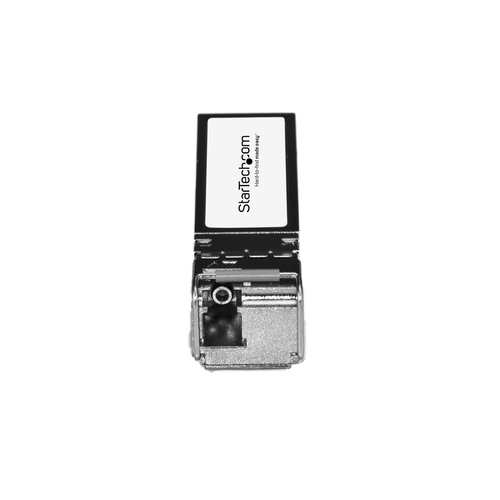

StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBase-BX (Upstream)~MSA Uncoded SFP+ Module - 10GBASE-BX - 10 Gigabit Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP+ (Upstream) - LC 10km
- Brand
- STARTECH
- Product code
- SFP-10GB-BX-U-STA-ST
- SKU
- 599MVKPDAHQ9R
- EAN/GTIN
- 0065030885836
- MSA UNCODED SFP+ TRANSCEIVER: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 10GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 10GBASE-BX / 10Gbps / 10G Bi-Directional Upstream / Single Mode (SMF) / LC Connector / 1270nmTx/1330nmRx / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
Product Info
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe SFP-10GB-BX-U-STA-ST is a MSA compliant upstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10GB-BX-D-STA-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1270nmTx/1330nmRx• Maximum Data Transfer Rate: 10Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• Power Consumption:• DDM: YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | BX-U |
| Maximum transfer distance | 10000 m |
| Tx wavelength (min) | 1270 nm |
| Rx wavelength (min) | 1330 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Brand compatibility | MSA Compliant |
| Certification | CE, FCC, UL |
| Power | |
| Power consumption (typical) | 1.3 W |
| Weight & dimensions | |
| Weight | 24 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Logistics data | |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
