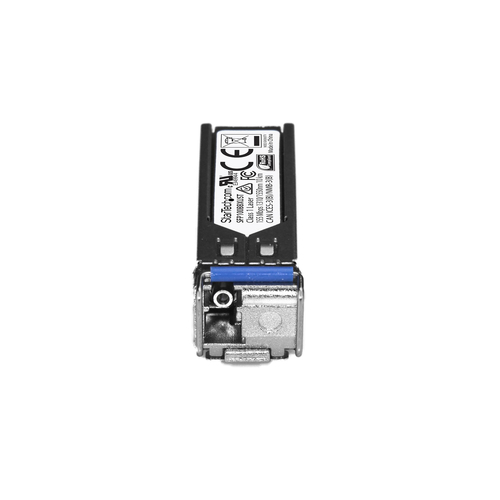

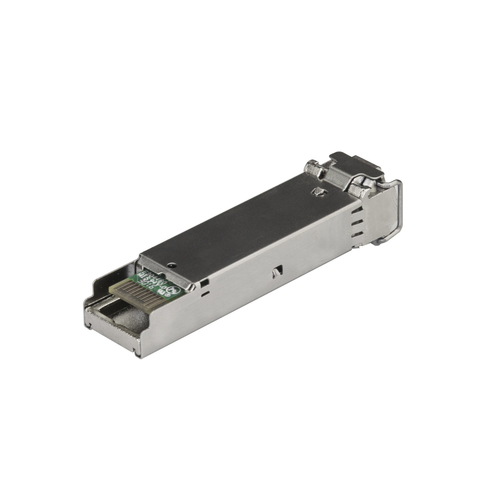

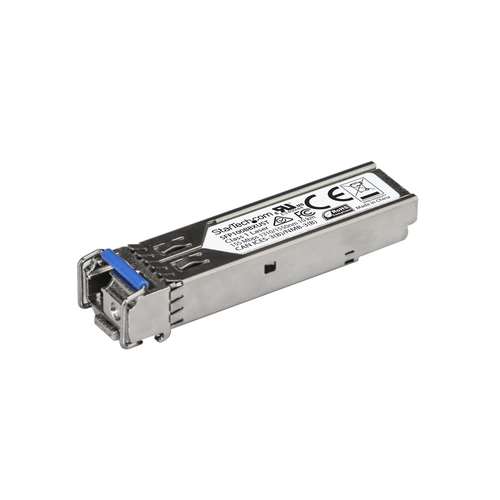

StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-BX~MSA Uncoded SFP Transceiver Module - 100BASE-BX - 100 MbE Ethernet BiDi Fiber (SMF)
- Brand
- STARTECH
- Product code
- SFP100BBXUST
- SKU
- X1A90ZX9CZJTM
- EAN/GTIN
- 0065030873512
- MSA UNCODED SFP TRANSCEIVER: 100Mb Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 100MbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 100 Mb Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.
- TECHNICAL SPECS: 100BASE-BX / 100Mbps / 100Mb Bi-Directional Upstream / Single Mode (SMF) / LC Connector / 1310nmTx/1550nmRx / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi).
- WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Product Info
100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe SFP100BBXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXDST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mbps connectivity over fiber cabling.Technical Specifications:• Wavelength: 1310nmTx/1550nmRx• Maximum Data Transfer Rate: 155 Mbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• Power Consumption: Less than 1 Watt• DDM: YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | BX |
| Maximum transfer distance | 10000 m |
| Tx wavelength (min) | 1310 nm |
| Rx wavelength (min) | 1550 nm |
| Networking standards | IEEE 802.3u |
| Duplex system | Full, Half |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | Yes |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 16 mm |
| Depth | 60 mm |
| Height | 11 mm |
| Weight | 18 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 92 mm |
| Package depth | 117 mm |
| Package height | 30 mm |
| Package weight | 47 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 193 mm |
| Master (outer) case length | 307 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 162 mm |
| Products per master (outer) case | 20 pc(s) |
