StarTech.com PCI2S1P2 interface cards/adapter

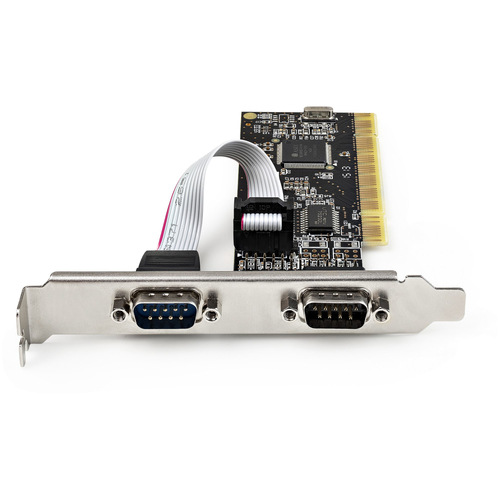

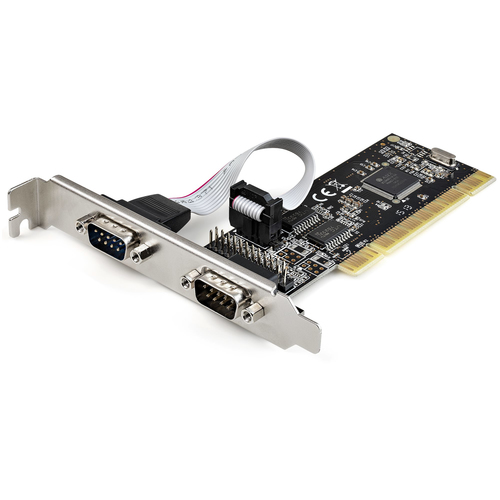

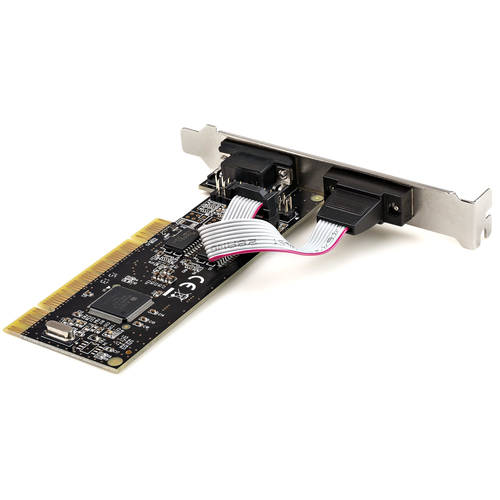

StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card
- Brand
- STARTECH
- Product code
- PCI2S1P2
- SKU
- 44L3WMKRFU89F
- EAN/GTIN
- 0065030891301
- PCI CARD WITH SERIAL & PARALLEL PORTS: Using one PCI bus, add a DB25 parallel & two DB9 RS232 ports to your computer; Serial Parallel PCI Card installs in 2x full profile or 3x low profile expansion slots; Auto IRQ & IO assignment; Supports IRQ Sharing
- TECH SPECS: Parallel Speeds up to 1.5Mbps / Supports SPP/Byte/ECP/EPP modes / Compatible with IEEE 1284 / Asix MCS9865 chip / RS-232 speeds up to 115.2 Kbps / 16C550 UART / 256 byte FIFO buffer / 5-9 bit character / Even, Odd, No, Space or Mark Parity
- VERSATILE APPLICATIONS: PCI expansion combo card adds LPT Printer & two COM serial ports working with printers, scanners, plotters, point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, oscilloscope

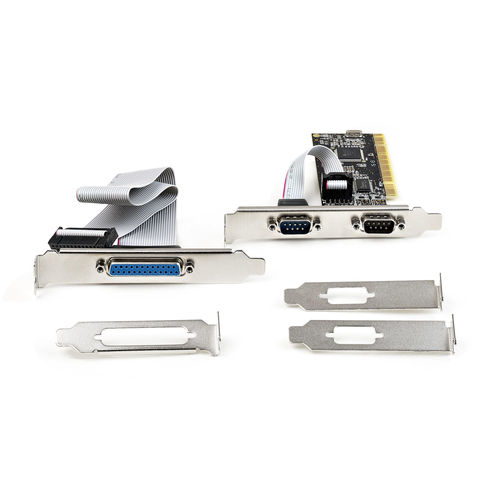

- STANDARD PROFILE & LOW PROFILE BRACKETs: PCI multiport Parallel LPT & dual serial COM adapter card installs using 2x standard bracket (pre-installed) or 3x low profile brackets (incl); Supports Windows 7 and up, Linux 2.6.x to 5.x
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; These 1-Port Parallel & 2-Port Serial port PCI controller card is backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support
€35.68
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
PCI | RS-232 Serial | IEEE 1284 Parallel | Lifetime WarrantyThe StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Host interface | PCI/PCI-X |
| Output interface | Serial |
| Expansion card form factor | Full-height / Low-profile |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Design | |
| Internal | Yes |
| Product colour | Black |
| Features | |
| Chipset | Asix - MCS9865 |
| Data transfer rate (max) | 0.0015 Gbit/s |
| Baud rate | 115.2 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 21.6 mm |
| Depth | 134 mm |
| Height | 120 mm |
| Weight | 141 g |
| Packaging data | |
| Mounting brackets included | Yes |
| User guide | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 190 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 340 mm |
