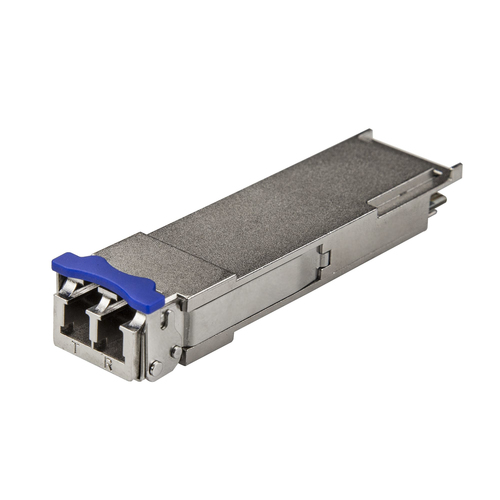

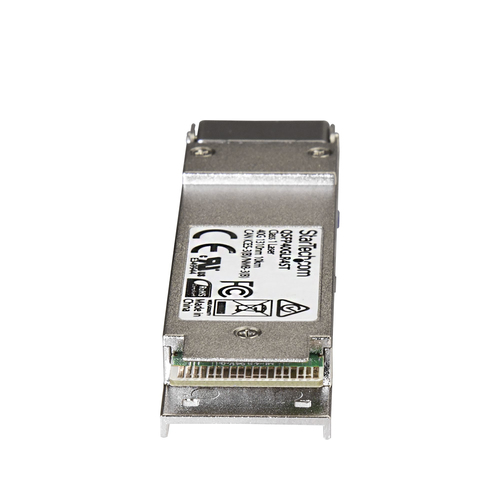

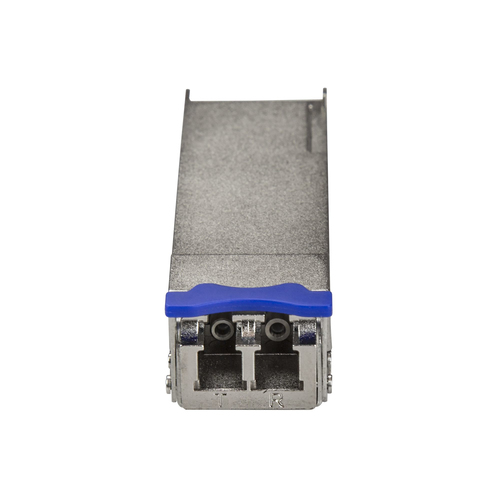

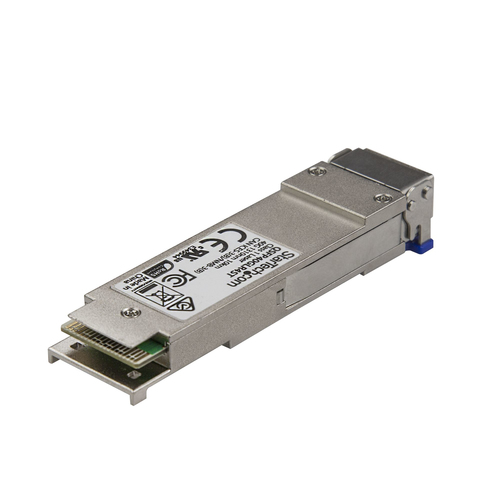

StarTech.com Extreme Networks 10320 Compatible QSFP+ Module - 40GBASE-LR4 - Single Mode Fiber (SMF) - 40GE Gigabit Ethernet QSFP+ - LC 6.2 mi - 1270nm to 1330nm - DDM~Extreme Networks 10320 Compatible QSFP+ Module - 40GBASE-LR4 - Single Mode Fiber (SMF) - 40GE Gigabit Ethernet QSFP+ - LC 10 km - 1270nm to 1330nm - DDM
- Brand
- STARTECH
- Product code
- 10320-ST
- SKU
- DCKAFHUX96JTB
- EAN/GTIN
- 0065030886871
- 100% EXTREME NETWORKS 10320 COMPATIBLE: Designed, programmed and tested to work with compatible Extreme Networks switches and routers to deliver dependable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-LR4 / 40 Gbps / Single Mode / LC Connector / 1270nm to 1330nm / Digital Diagnostic Monitoring (DDM) / Distances up to 6.2 mi (10 km)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Extreme Networks routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24100% EXTREME NETWORKS 10320 COMPATIBLE: Designed, programmed and tested to work with compatible Extreme Networks switches and routers to deliver reliable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-LR4 / 40 Gbps / Single Mode / LC Connector / 1270nm to 1330nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10 km (6.2 mi)
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Product Info
40 Gbps | Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe 10320-ST is an Extreme Networks® 10320 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).Technical Specifications:• Wavelength: 1270nm to 1330nm• Maximum Data Transfer Rate: 40 Gbps• Type: Single Mode• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• MTBF: 95,832,026 hours• Power Consumption:This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 41250 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Tx wavelength (min) | 1270 nm |
| Tx wavelength (max) | 1330 nm |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | No |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 95832026 h |
| Brand compatibility | Extreme Networks |
| Compatible products | 10320 |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 2.5 W |
| Weight & dimensions | |
| Width | 18.3 mm |
| Depth | 72 mm |
| Height | 13 mm |
| Weight | 44 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 420 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 350 mm |
| Products per master (outer) case | 100 pc(s) |
