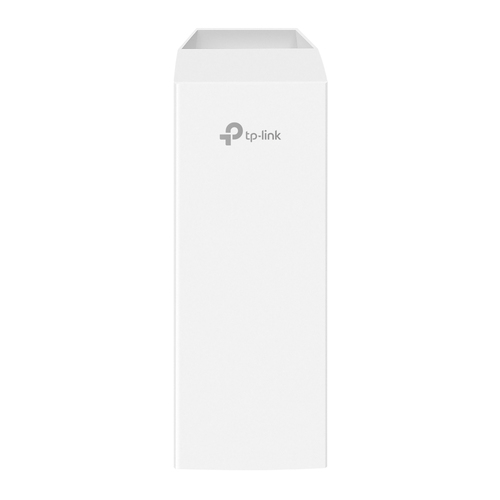

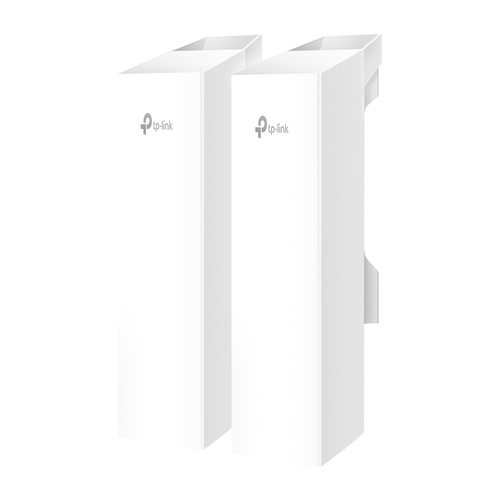

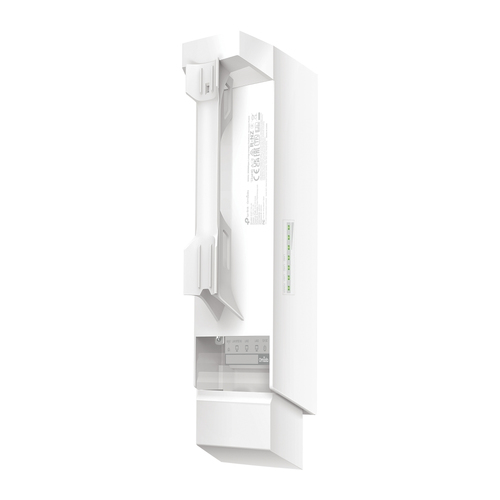

TP-Link EAP215-Bridge KIT
TP-Link Wireless Bridge 5 GH 867 Mbps Long-Range Indoor/Outdoor Access Point
- Brand
- TP-Link
- Product code
- EAP215-BRIDGE KIT
- SKU
- 8W1QFWJZAWJQN
- EAN/GTIN
- 4895252502572
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate
- Ideal for long-range wireless transmission up to 5 km
- Auto-pairing and agile LEDs for efficient deployment

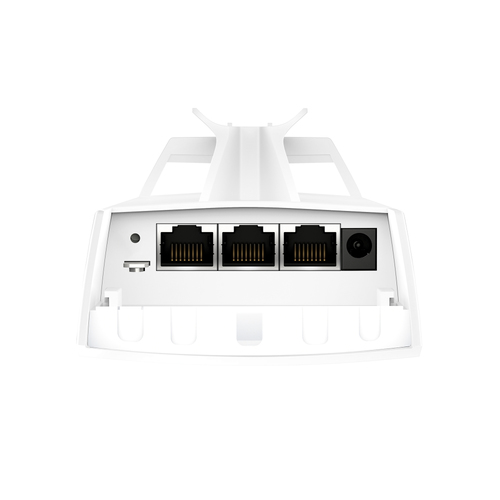

- 3 × Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralized management
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
- Supports Passive PoE for flexible deployment (adapter included)
€124.18
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
Wireless Bridge 5 GH 867 Mbps Long-Range Indoor/Outdoor Access Point
- Long-Distance Transmission
- Auto-Pairing
- Agile LEDs for Easy Deployment
- 3× Fast Ethernet Ports
- 12V DC/Passive PoE
- IP65 Weatherproof & 6 KV Lightning Protection
- Omada Centralized Cloud Management
- Passive PoE Adapter Included
5-km Long-Distance Wi-Fi Transmission
Easy and Simple Deployment
Point-to-Point Connection, Perfect for Surveillance
Seamless Integration into Omada SDN
| Features | |
|---|---|
| 2.4 GHz | No |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP) |
| Transmitting power (FCC) | <22dBm (5 GHz band1/4) |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 12 V |
| Design | |
| Placement | Pole |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 11 dBi |
| Polarization | Dual polarization |
| Weight & dimensions | |
| Width | 224 mm |
| Depth | 79 mm |
| Height | 60 mm |
| Weight | 330.9 g |
| Packaging content | |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
