StarTech.com Triple-Display TV Wall Mount - Menu Board Mount - Landscape
- Brand
- STARTECH
- Product code
- FPWMNB
- SKU
- JBZ9HXRJ4WPJQ
- EAN/GTIN
- 0065030880657
- Create a digital menu board, mounting three 40" to 50" TVs in landscape position; Supports up to 110 lb. (50 kg) in weight per display
- Tilt all displays to the same angle easily, with five fixed-tilt settings: 0/-5/-10°/-15°/-20°
- Align your displays with micro height adjustment, fine-tuning the screen level +3° to -3°
- 3.0” (76 mm) profile to wall, and fast and easy installation
- Universal LCD/LED television mount supports LG, Samsung, Sony, Sharp, others (screws/spacers incl) & VESA bracket hole patterns 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
Product Info
Digital Signage Mount | For 40" to 50" Displays | Steel | 5x Tilt Settings

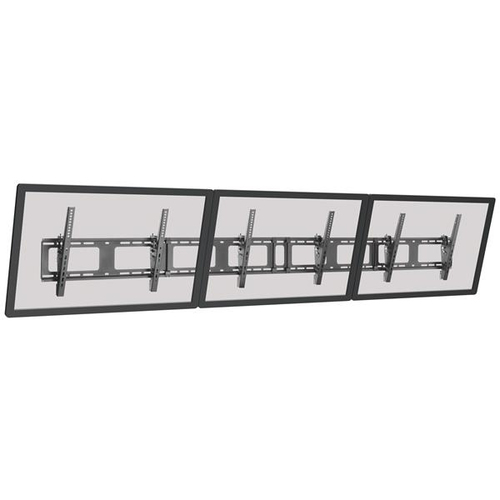

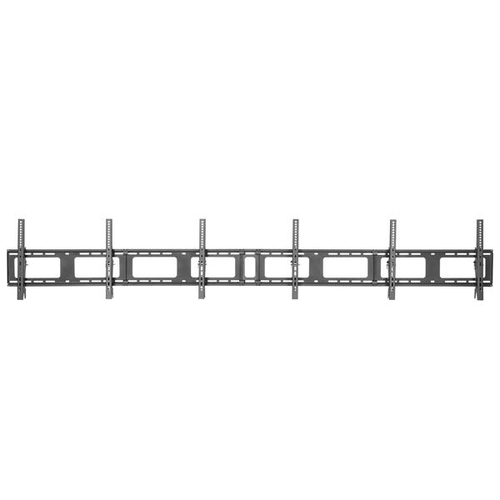

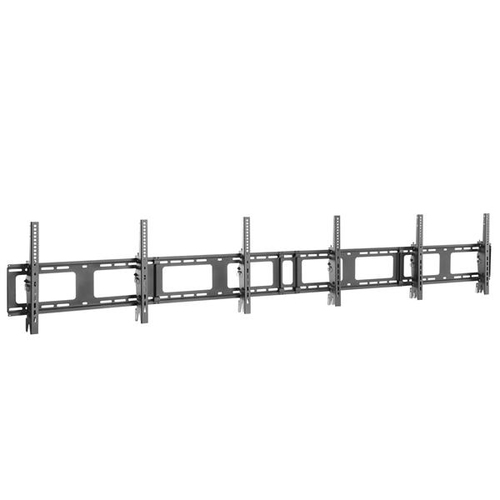

Create a perfectly aligned menu board with this triple-display TV wall mount for 40” to 50” displays. The modular wall-mounting system is easy to set up. Adjust the tilt for all three displays at the same time, and fine-tune the screen level with ease.
Enhance Customer Sales
Digital menu boards are a great way to increase customer sales, promote new offerings, and inform customers at the point of sale. Ideal for restaurants, retail stores and many other businesses, this professional-grade menu board mount supports three 40” to 50” VESA mount TVs in landscape position. It supports a weight capacity of 110 lb. (50 kg) per display, and is compatible with VESA 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, and 600x400.
Adjust Your Display with Ease

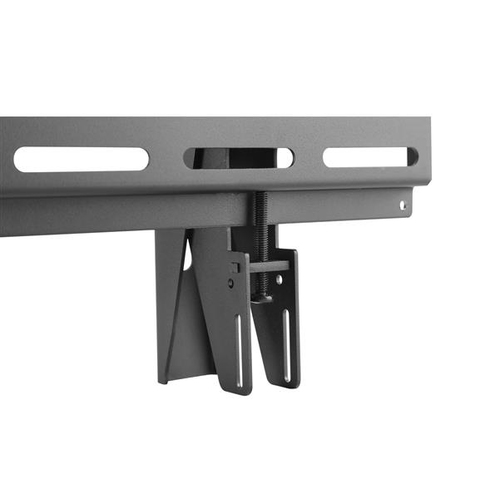

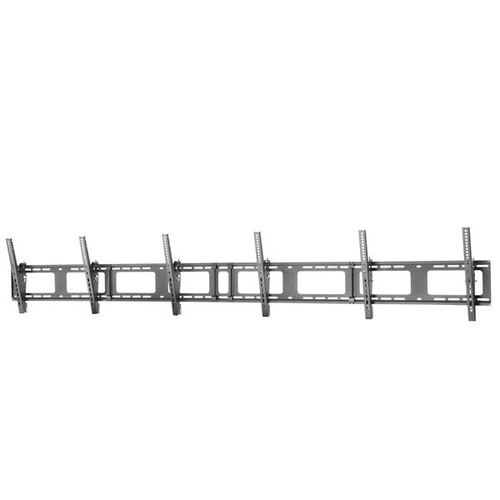

For optimum viewing, you can adjust the tilt of all three displays to the same angle simultaneously, without using tools. The multi-screen mount has five fixed tilt settings: 0/-5/-10°/-15°/-20°.
Align the Screen Level of All Monitors

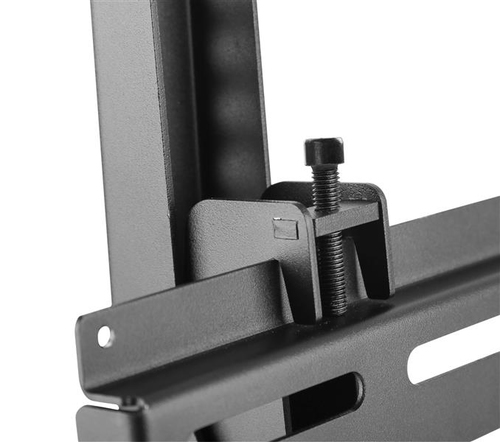

To ensure precise alignment of all three TVs, you can fine-tune the level of the displays +3° to -3° using the micro height adjustment feature.
Durable Steel Construction
With its heavy-duty steel construction, the triple-monitor wall bracket provides durable performance.
Fast and Easy Installation
Save time on setup. The hook-and-mount design of the triple-display wall mount makes installation fast and easy.
FPWMNB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Create a digital menu board, mounting three 40" to 50" TVs in landscape position; Supports up to 110 lb. (50 kg) in weight per display
- Tilt all displays to the same angle easily, with five fixed-tilt settings: 0/-5/-10°/-15°/-20°
- Align your displays with micro height adjustment, fine-tuning the screen level +3° to -3°
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 50 kg |
| Minimum screen size | 101.6 cm (40") |
| Maximum weight capacity | 150 kg |
| Maximum screen size | 127 cm (50") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400 |
| Number of displays supported | 3 |
| Ergonomics | |
| Tilt angle range | -20 - 0° |
| Cable management | No |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Anti-theft function | No |
| Certification | REACH |
| Weight & dimensions | |
| Width | 78 mm |
| Depth | 2900 mm |
| Height | 225 mm |
| Weight | 14.2 kg |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 740 mm |
| Package height | 230 mm |
| Package weight | 16 kg |

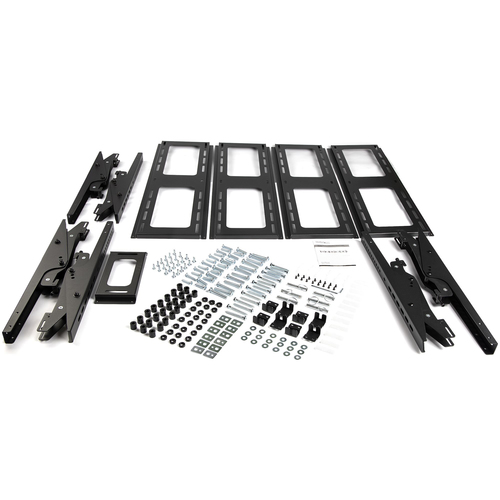

| Packaging content | |
| Screws included | Yes |
| Number of screws | 94 |
| Washers included | Yes |
| Number of washers included | 30 |
| Spacer included | Yes |
| Number of spacers included | 48 |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 740 mm |
| Master (outer) case height | 230 mm |
| Products per master (outer) case | 1 pc(s) |
