StarTech.com ST121HDBTSC AV extender

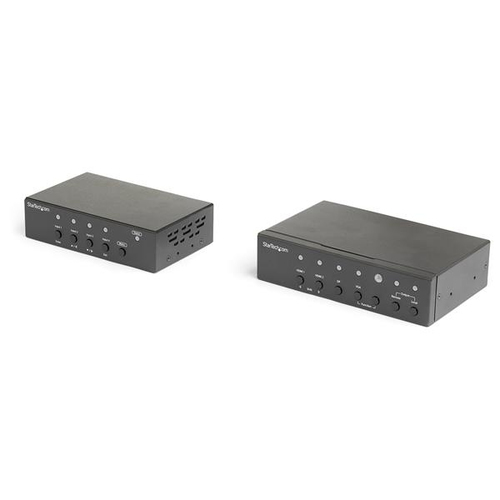

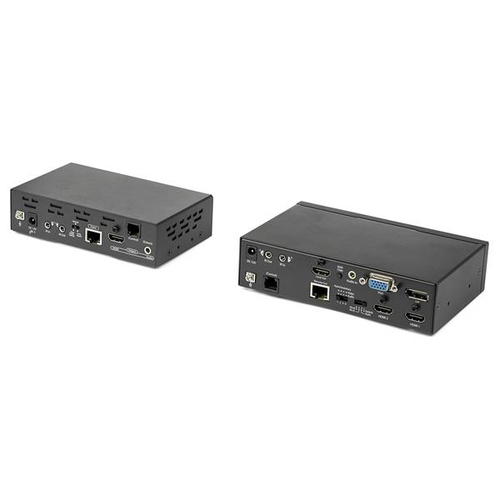

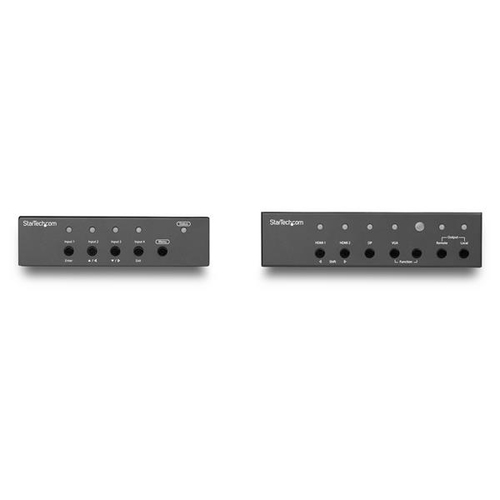

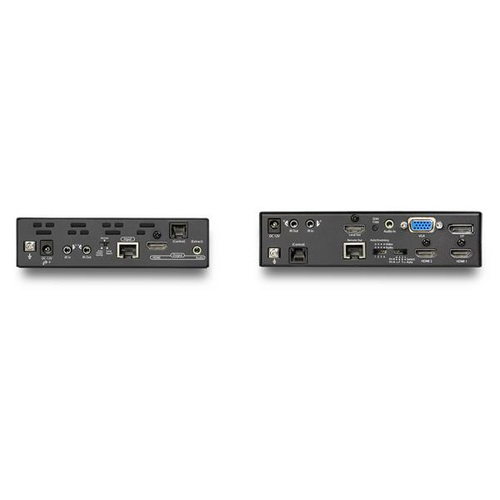

StarTech.com Multi-Input HDBaseT Extender Kit with Built-In Switch and Video Scaler


Brand
STARTECH
Product code
ST121HDBTSC
SKU
IUM94ZMFT7Z5B
EAN/GTIN
0065030879200
  • Save hassle and expense with a switch and extender in one device, that accommodates VGA, DP and HDMI inputs
  • Ensure perfect video connectivity, every time, with a built-in video scaler
  • Get crystal-clear picture quality at impressive distances with 1080 resolution at up to 230 ft.
€399.48 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Connect four video sources to a remote HDMI display over CAT5e/CAT6 cabling, and easily scale and switch between HDMI, DP or VGA video sourcesThis multi-input HDBaseT™ extender kit extends your A/V signals to a remote location up to 230 ft. (70 m) away. It features a built-in switch and scaler, so you can choose which video source is output from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).Seamless Integration and OperationThe HDBaseT extender’s built-in converter switch lets you connect two HDMI sources, a VGA source, and a DP source to the same remote and local HDMI display. You don’t need adapters or scalers, or a video switch.Along with manually switching your video source with easy-to-use buttons, the video extender ensures hassle-free operation with two auto-switching modes: auto-detect switching, which detects and selects a newly connected device, and priority selection, which lets you choose which port is activated by default, for automatic switching.Built-In Video ScalingThis HDBaseT extender features a built-in scaler that scales the image to 1080p, so you can rest assured your HDMI display will intuitively work with any source that’s connected through it. Scaling is easy to do, with an intuitive OSD that's accessible using buttons on the remote receiver. Newer HDMI displays no longer support legacy resolution video signals. Without support for these common VGA resolutions, your source may not work with your new HDMI display.High-Definition 1080p Video at 230 Feet (70 Meters)The extender kit maintains your HD picture quality, even at 230 ft. (70 m) away from your video source, ensuring you can provide the best possible viewing experience.The ST121HDBTSC is backed by a 2-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

Features
Type AV transmitter & receiver
Maximum resolution 1920 x 1200 pixels
Cable types supported Cat5e, Cat6
Maximum transfer distance 70 m
Maximum refresh rate 60 Hz
Audio output channels 2.0 channels
LED indicators Yes
Supported graphics resolutions 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Material Aluminium
Rack mounting Yes
HDCP & EDID bypass Yes
Daisy chain No
Rubber feet Yes
Product colour Black
Certification CE, FCC, TAA
Ports & interfaces
Connectivity technology Wired
RJ-45 input ports 1
RJ-45 output ports 1
VGA (D-Sub) input ports 1
HDMI in 2
Number of HDMI outputs 2
DisplayPorts in 1
VGA (D-Sub) ports quantity 1
RJ-11 ports quantity 2
AUX in Yes
3.5 mm (1/8-inch) in Yes
Remote (IR) input 2
Remote (IR) output 2
DC-in jack Yes
Power
AC input voltage 100 - 240 V
Operating voltage 12 V
Input current 0.6 A
Output current 1.5 A
Power consumption (typical) 18 W
External power adapter Yes
Power plug type Type M
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 61 mm
Depth 106 mm
Height 67 mm
Weight 2 kg
Packaging data
Package width 98 mm
Package depth 160 mm
Package height 40 mm

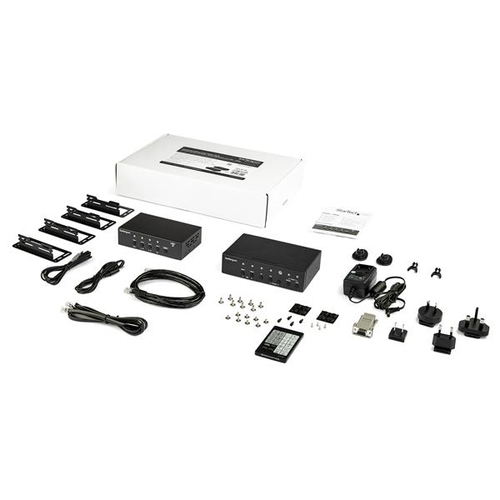

Packaging content
AC adapter included Yes
Cables included LAN (RJ-45), Phone (RJ-11)
Included power plug types ANZ, EU, JP, NA, UK
Quick start guide Yes
IR blaster included Yes
IR receiver included Yes
Remote control included Yes
Mounting brackets included Yes
Technical details
Sustainability certificates RoHS
Logistics data
Master (outer) case width 385 mm
Master (outer) case length 495 mm
Master (outer) case height 270 mm
Products per master (outer) case 6 pc(s)
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
