StarTech.com MSA Uncoded Compatible 2m 40G QSFP+ to 4x SFP+ Direct Attach Breakout Cable Twinax - 40GbE QSFP+ to 4x SFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC
- Brand
- STARTECH
- Product code
- QSFP4SFPPC2M
- SKU
- UE4NKMQL4Q771
- EAN/GTIN
- 0065030875363
- MSA UNCODED QSFP+ CABLE (DAC): 40Gb direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
- TECHNICAL SPECS: 2m (6.6ft) / 40 Gbps / Passive Twinax (Copper) / 1x QSFP+ to 4x SFP+ Pluggable Connector / 100 Ohm Impedance / 30 AWG Wire Gauge / PVC Cable Jacket / Hot swappable / MSA Compliant
- DESIGNED FOR SERVER ROOMS: This DAC is a cost-effective copper alternative to fiber cable inside & between racks; factory termination means high performance & reliability with less maintenance.
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
Product Info

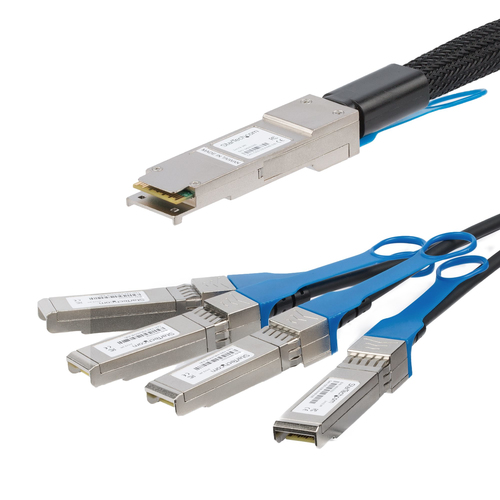

Copper QSFP+ Cable | 40 Gbps | Passive Breakout DAC | Lifetime WarrantyThe QSFP4SFPPC2M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions.At 2 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.StarTech.com SFP CablesAll StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| Features | |
|---|---|
| Cable length | 2 m |
| Connector 1 | QSFP+ |
| Connector 2 | 4x SFP+ |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Data transfer rate | 40000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Plug and Play | Yes |
| Certification | CE, FCC, REACH |
| Technical details | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Weight | 346 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 250 mm |
| Package depth | 325 mm |
| Package height | 30 mm |
| Package weight | 364 g |
| Logistics data | |
| Master (outer) case width | 255 mm |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case length | 344 mm |
| Master (outer) case height | 295 mm |
| Products per master (outer) case | 10 pc(s) |
