StarTech.com 12U Hinged Open Frame Wall-Mount Server Rack - 22 in. Deep
- Brand
- STARTECH
- Product code
- RK1219WALLOH
- SKU
- ZV45UO3HDP6XD
- EAN/GTIN
- 0065030848855
- 12U Hinged Wall Mount Rack

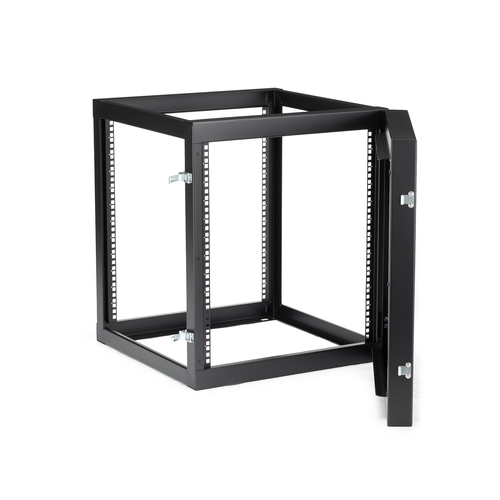

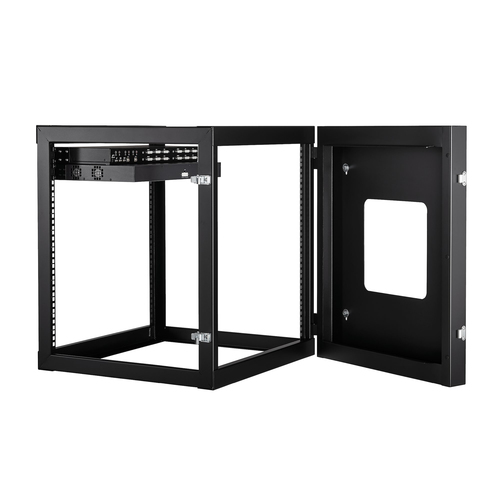

- Hinged design for easy access to rear panels
- TAA compliant for GSA Schedule purchases

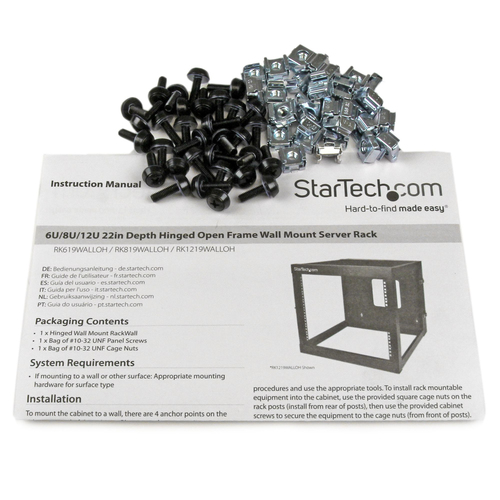

- Package includes all necessary screws/nuts for mounting rack equipment
- Open frame design provides additional airflow
- 4 Post design for added stability
- Sturdy SPCC cold-rolled steel construction
Product Info
Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenanceThe RK1219WALLOH 12U 22in Depth Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.The 12U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (140 lbs). Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.Backed by a StarTech.com Lifetime warranty.The StarTech.com Advantage
| Features | |
|---|---|
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 63.4 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 4-post |
| Key lock | No |
| Front door key lock | No |
| Adjustable mounting rails | No |
| Cable management | No |
| Mounting hole shape | Square |
| Castor wheels | No |
| Certification | RoHS, CE, UL, TAA |
| Weight & dimensions | |
| Width | 556 mm |
| Depth | 600 mm |
| Height | 647 mm |
| Inner depth | 50.5 cm |
| Weight | 18 kg |
| Mounting depth (max) | 50.7 cm |
| Packaging data | |
| Nuts included | Yes |
| Number of nuts | 48 |
| Screws included | Yes |
| Number of screws | 48 |
| Manual | Yes |
| Package width | 635 mm |
| Package depth | 660 mm |
| Package height | 718 mm |
| Package weight | 20.7 kg |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 635 mm |
| Master (outer) case length | 660 mm |
| Master (outer) case height | 718 mm |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Compliance industry standards | EIA-310-D, EIA RS310-D |
