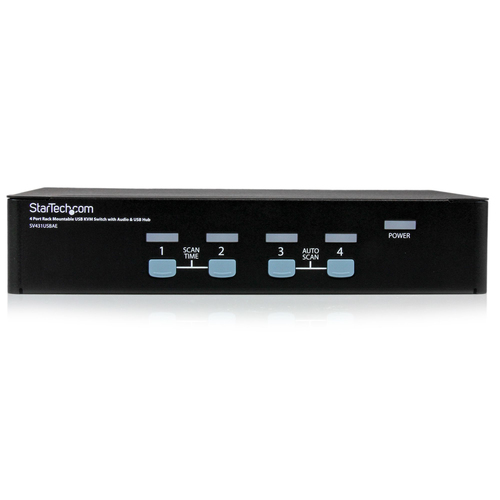

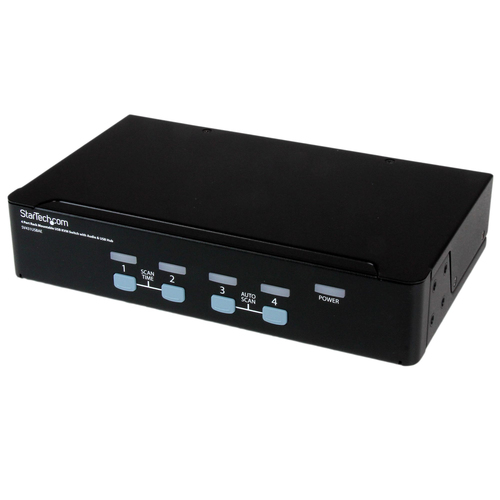

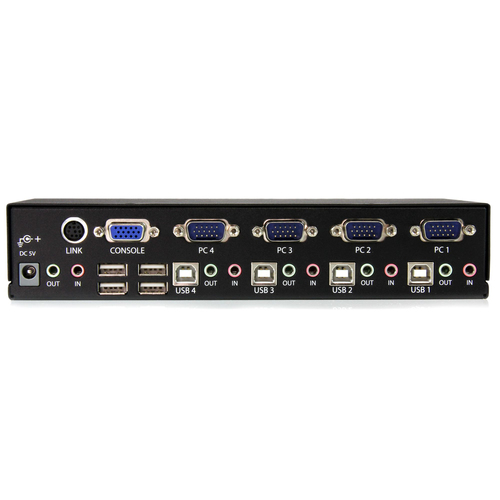

StarTech.com 4 Port Rack Mountable USB KVM Switch with Audio & USB Hub
- Brand
- STARTECH
- Product code
- SV431USBAEGB
- SKU
- KVESDVQK3BMGH
- EAN/GTIN
- 0065030830768
- Designed for high-resolution applications: up to 1920x1440 pixels supported
- All metal chassis for long-term durability
- Integrated USB 2.0 hub allows you to share up to three high-speed USB devices between computers
- Audio switching with microphone and speaker connectivity
- Auto-scan function automatically selects computer sequentially
- Compatible with all USB supported Operating Systems
- Front panel push button computer selection
Product Info
Share keyboard, mouse, speakers and a VGA display between four multimedia computersThis Rack Mountable USB KVM Switch supports high resolution video applications (up to 1920x1440 pixels supported) and audio switching between connected computers, and provides an integrated USB 2.0 hub that lets the selected computer have access shared high speed USB peripherals.Providing control of up to four computers from a single USB keyboard and mouse peripheral set, the switch features a sturdy all metal chassis and can be rackmounted in a server rack/cabinet using an optional Rackmount Bracket kit (SV431RACK) - minimizing clutter and saving space.This product is TAA compliant and is backed by a Startech.com 3 year warranty with lifetine technical support.The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console ports | 3.5mm headphone, 3.5mm mic |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 4 |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| Performance | |
| Maximum resolution | 1920 x 1440 pixels |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| Hot keys | No |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.4 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 10 W |
| External power adapter | Yes |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 130 mm |
| Height | 44 mm |
| Weight | 1 kg |
| Packaging data | |
| Package width | 90 mm |
| Package depth | 410 mm |
| Package height | 215 mm |
| Package weight | 1.7 kg |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 555 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 248 mm |
| Products per master (outer) case | 6 pc(s) |
| Other features | |
| IP control | No |
