StarTech.com MPEX4S552 interface cards/adapter

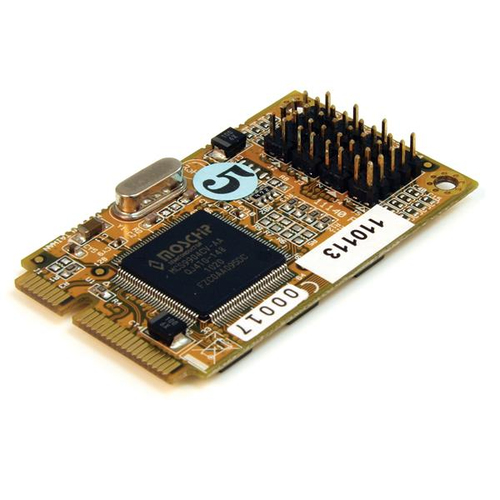

StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
- Brand
- STARTECH
- Product code
- MPEX4S552
- SKU
- 6OZGYEIGKSA5L
- EAN/GTIN
- 0065030844611
- Internal
- Host interface: Mini PCI Express
- Output interface: Serial
- Green
€52.12
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot
StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART. Host interface: Mini PCI Express, Output interface: Serial, Serial interface type: RS-232. Product colour: Green. Chipset: MosChip MCS9904CV-AA, FIFO (First In, First Out): 256 B. Width: 10 mm, Depth: 51 mm, Height: 30 mm. Package width: 145 mm, Package depth: 212 mm, Package height: 40 mm
Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot

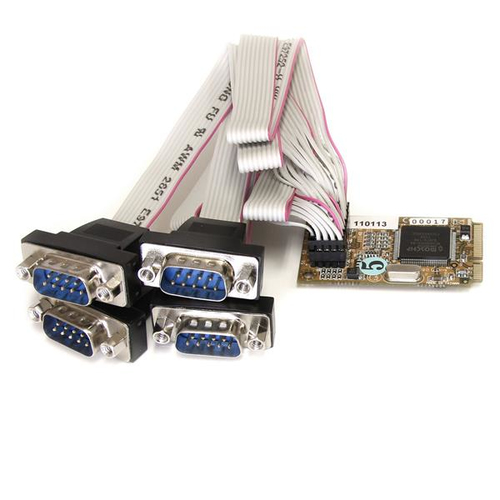

The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.
A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .
Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
The StarTech.com Advantage
- The smallest form factor available, for internally adding serial ports to any embedded system
- Native single-chip design means up to 48% less load on your CPU which is critical for small embedded PCs that use low power, low MHz CPUs
| Ports & interfaces | |
|---|---|
| Host interface | Mini PCI Express |
| Output interface | Serial |
| Serial ports quantity | 4 |
| Serial interface type | RS-232 |
| Design | |
| Internal | Yes |
| Product colour | Green |
| Features | |
| Chipset | MosChip MCS9904CV-AA |
| FIFO (First In, First Out) | 256 B |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 10 mm |
| Depth | 51 mm |
| Height | 30 mm |
| Weight | 150 g |
| Packaging data | |
| User guide | Yes |
| Package width | 145 mm |
| Package depth | 212 mm |
| Package height | 40 mm |
| Package weight | 200 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Data transfer rate | 0.921 Mbit/s |
| Compatible operating systems | Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ CE 6.0 Windows Server 2008 R2/ 2003(32/64)/ 2000 Linux 2.6.x |
| Compliance industry standards | PCI Express 1.1 |
| Quantity outer carton | 50 pc(s) |
