StarTech.com 4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse, 3.5mm/USB Audio, Peripheral Sharing for 4 Computers, TAA Compliant
- Brand
- STARTECH
- Product code
- P4A20132-KM-SWITCH
- SKU
- 12PSWW4B6626P
- EAN/GTIN
- 0065030902250
- MOUSE ROAMING: Instantly switch computers by moving the mouse between monitors, without the need for hotkeys or physical buttons, enabling uninterrupted workflow and increased efficiency; Hotkey and push-button switching options are also available
- SCREEN LAYOUT PRESETS: Monitor layouts controlled via hotkeys are designed to accommodate a variety of physical monitor setups, allowing for seamless mouse movement across host monitors; 6 different preset display configurations available
- USB CONNECTIVITY: Supports up to three USB Human Interface Device (HID) peripherals and two USB 3.2 Gen 1 (5Gbps) devices; Ideal for environments such as control rooms, security facilities, server rooms, and financial operations
- THOUGHTFUL DESIGN: Independent audio switching allows users to listen to audio from one computer while controlling another; USB audio and 3.5mm pass-through available; LEDs provide visual port selection status; Audible buzzer for hotkey confirmation
- UNIVERSAL COMPATIBILITY: Mouse Roaming is supported by most major desktop operating systems including Windows, macOS, and Linux; Hotkey and push-button switching are OS independent; Works with all hardware platforms including Intel and AMD
Product Info
Control up to four computers with a single keyboard and mouseThis Keyboard and Mouse (KM) Switch enables switching a single keyboard and mouse between multiple computers using mouse roaming, allowing users to seamlessly move the cursor across multiple screens (i.e., one monitor per computer).Mouse RoamingSwitch between computers by moving the mouse between monitors, without the need for hotkeys or physical buttons, enabling uninterrupted workflow and increased efficiency. Hotkey and push-button switching are universally compatible. Mouse Roaming is supported by most major desktop operating systems, including Windows, macOS, and Linux.Preset Monitor LayoutsTo accommodate various physical monitor setups, there are six preset display configurations available. This allows for smooth mouse movement across host monitors.Thoughtful DesignHotkeys enable listening to audio from one computer while controlling another. USB audio and 3.5mm pass-through are available, and LEDs provide visual port selection status, while an audible buzzer confirms hotkey selection.Note: On computers with multiple monitors connected, mouse/keyboard operation is limited to the primary displayThe StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, USB A |
| USB 2.0 Type-A hub ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Performance | |
| HD type | Not supported |
| Data transfer rate (max) | 5 Gbit/s |
| Chipset | GL3523 |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 156000 h |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 5 A |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 220 mm |
| Height | 34 mm |
| Weight | 800 g |
| Packaging data | |
| Package width | 295 mm |
| Package depth | 245 mm |
| Package height | 63 mm |
| Package weight | 180 g |
| Packaging content | |

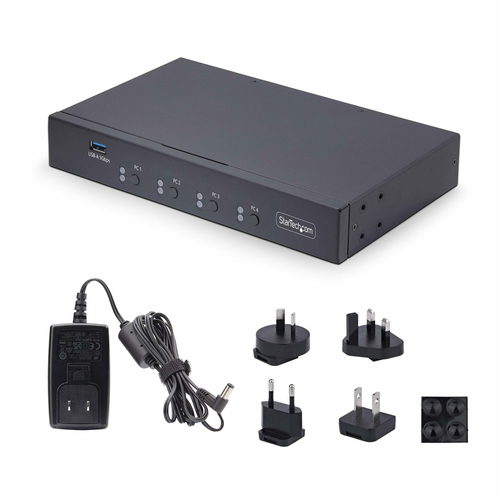

| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case width | 613 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 302 mm |
| Products per master (outer) case | 6 pc(s) |
| Other features | |
| IP control | No |
