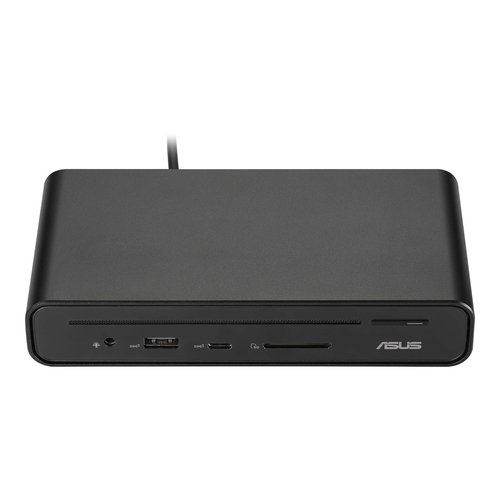

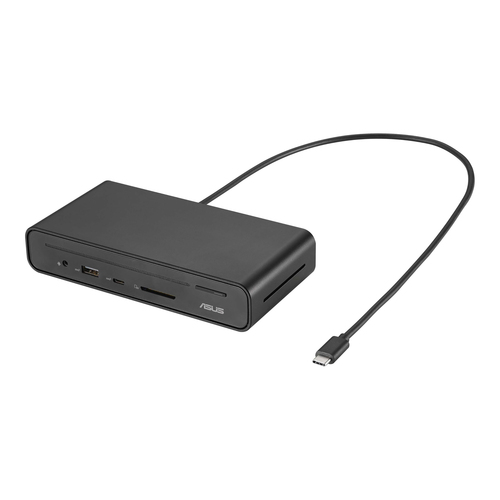

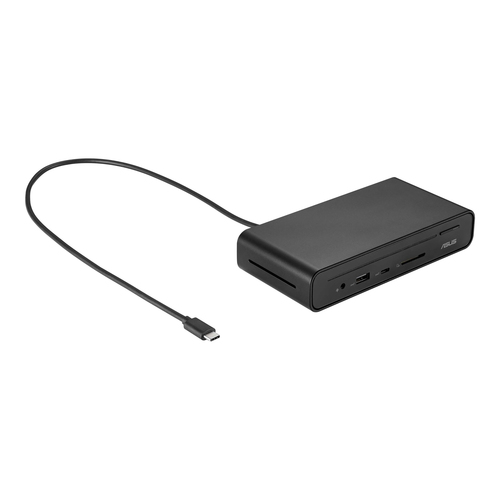

ASUS Triple Display USB-C Dock DC300 Docking USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
- Brand
- Asus
- Product code
- 90XB08CN-BDS020
- SKU
- G73IDOTA89QE1
- EAN/GTIN
- 4711387324851
- BUILT-IN more monitor connectivity
- Enables eight connections to peripherals at the same time
- One click to wake up your laptop with monitors
- Update laptop software remotely
- Power up to 90W
- Enjoy up to 10 Gbps data transfer speeds and charging via a USB-A or USB-C connection
Product Info
Introducing the ASUS Triple Display USB-C Dock
Compact productivity magic
ASUS Triple Display USB-C Dock is a sleek, compact one-stop device that streamlines laptop connectivity. Power your laptop through a single cable, connect to your network and peripherals, and multitask with up to four monitors — including a laptop monitor and three external monitors. It also has an integrated SD card reader for a diverse array of business scenarios. Simply put, ASUS Triple Display USB-C Dock keeps your desk neat, tidy and organised while setting you up for work in the blink of an eye.
Description

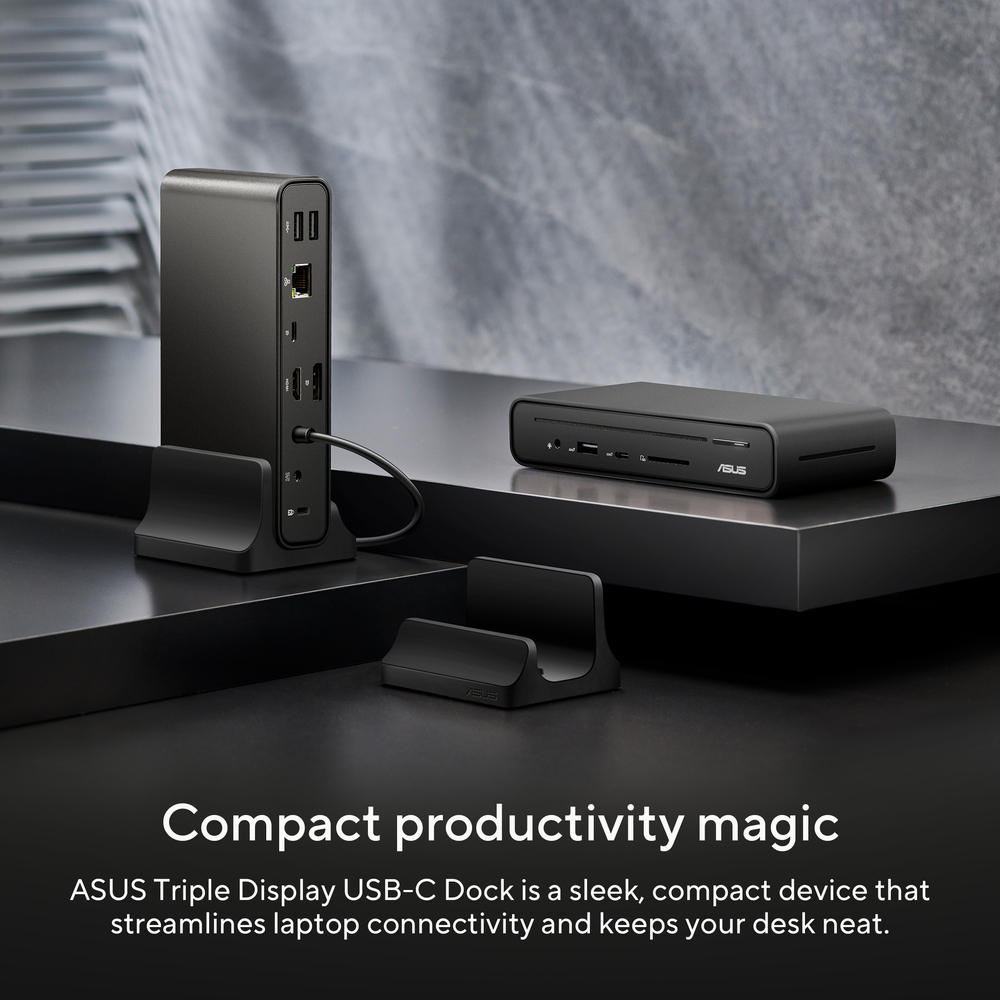

Compact productivity magic
ASUS Triple Display USB-C Dock is a sleek, compact one-stop device that streamlines laptop connectivity. Power your laptop through a single cable, connect to your network and peripherals, and multitask with up to four monitors — including a laptop monitor and three external monitors. It also has an integrated SD card reader for a diverse array of business scenarios. Simply put, ASUS Triple Display USB-C Dock keeps your desk neat, tidy and organised while setting you up for work in the blink of an eye.

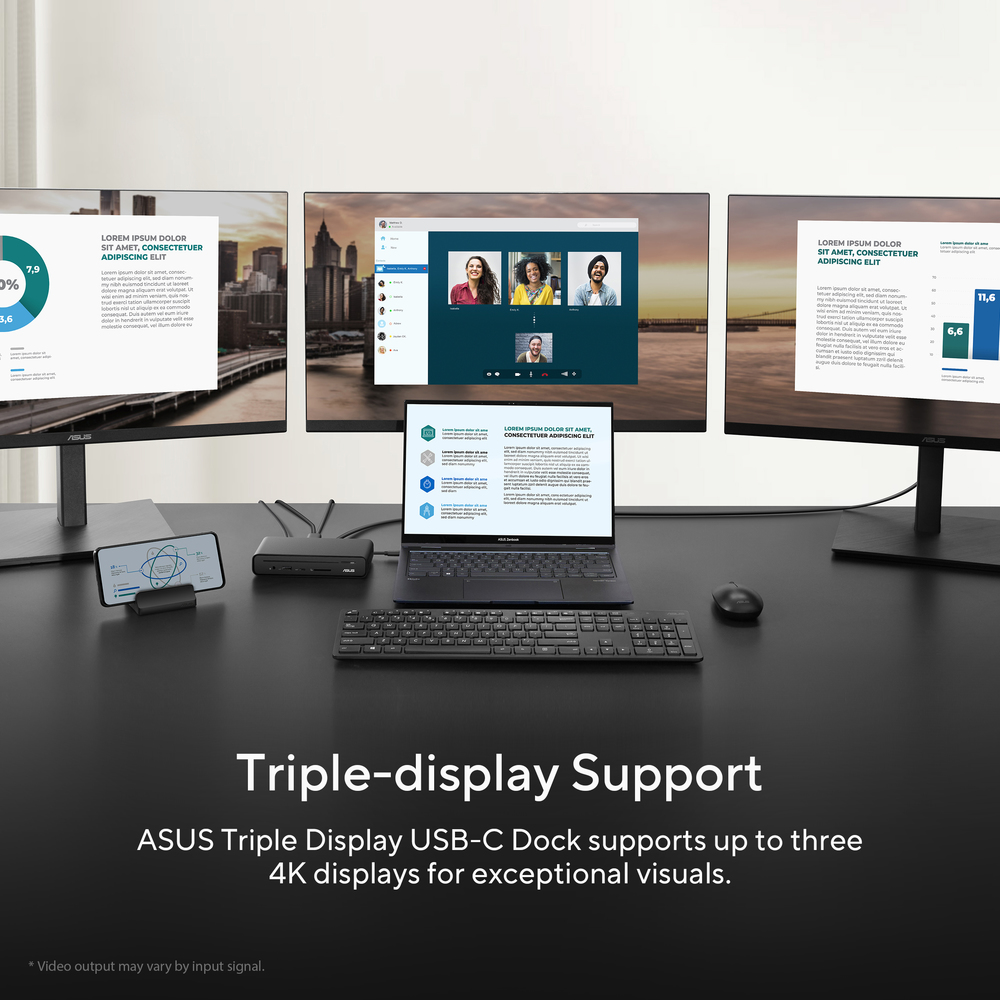

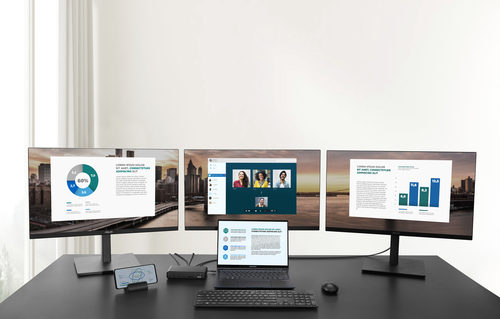

Ready for triple 4K displays
Connect up to three displays via HDMI®, DisplayPort™ and USB-C® for expanded productivity and comfortable multitasking. ASUS Triple Display USB-C Dock even supports up to three 4K displays for exceptional visuals.

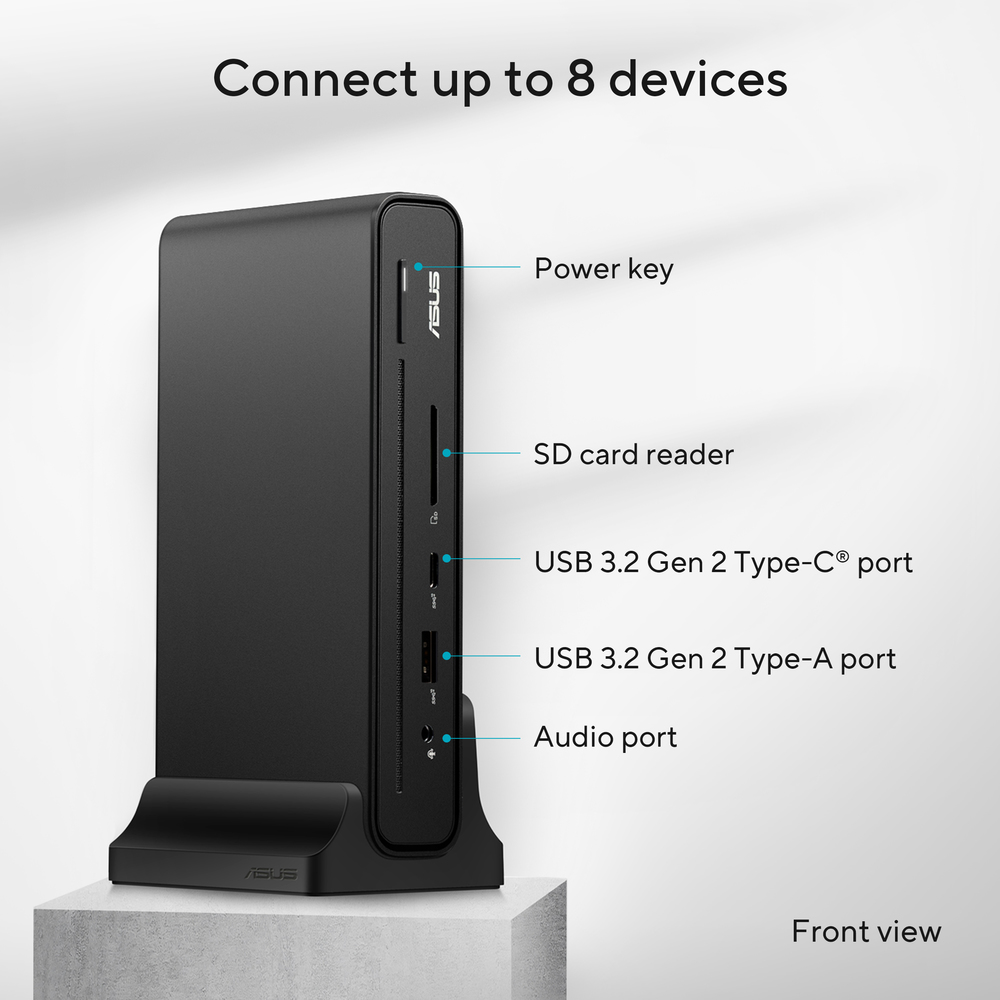

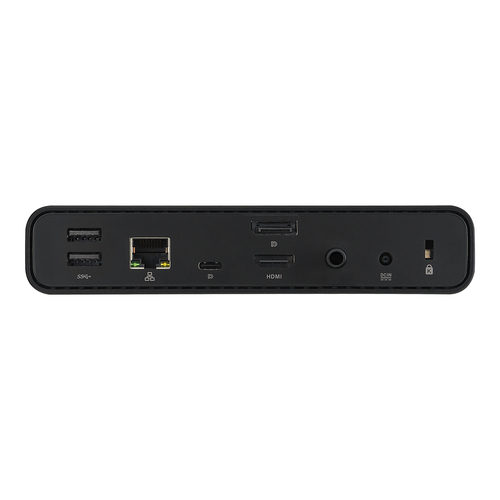

Connect up to 8 devices

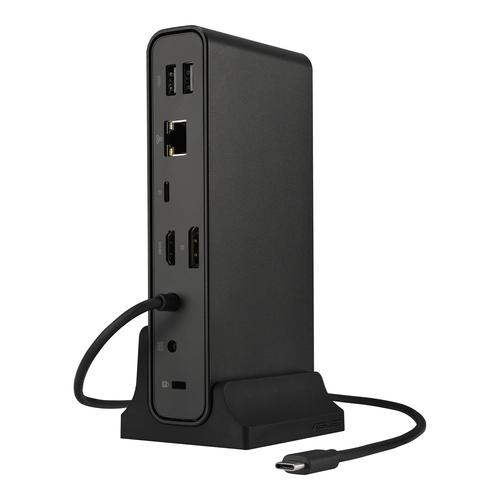

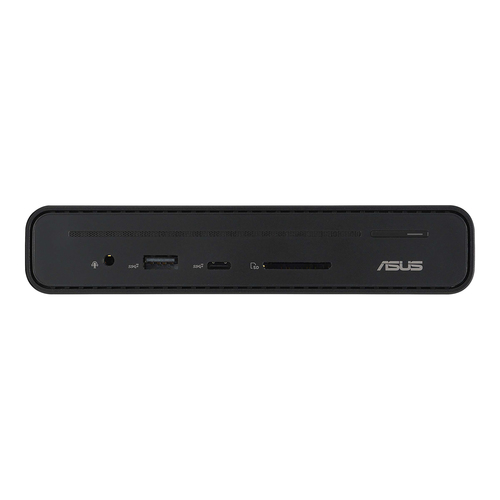

ASUS Triple Display USB-C Dock has a multitude of I/O ports: three external screens can be connected via HDMI®, USB-C® and DisplayPort™, two USB 3.2 Gen 1 Type-A ports support a keyboard and mouse, and there’s a USB-C® port, a USB Type-A port, an RJ45 network port, an audio jack for earphones, and a SD card reader for data transfers. That’s a total of 12 functions.

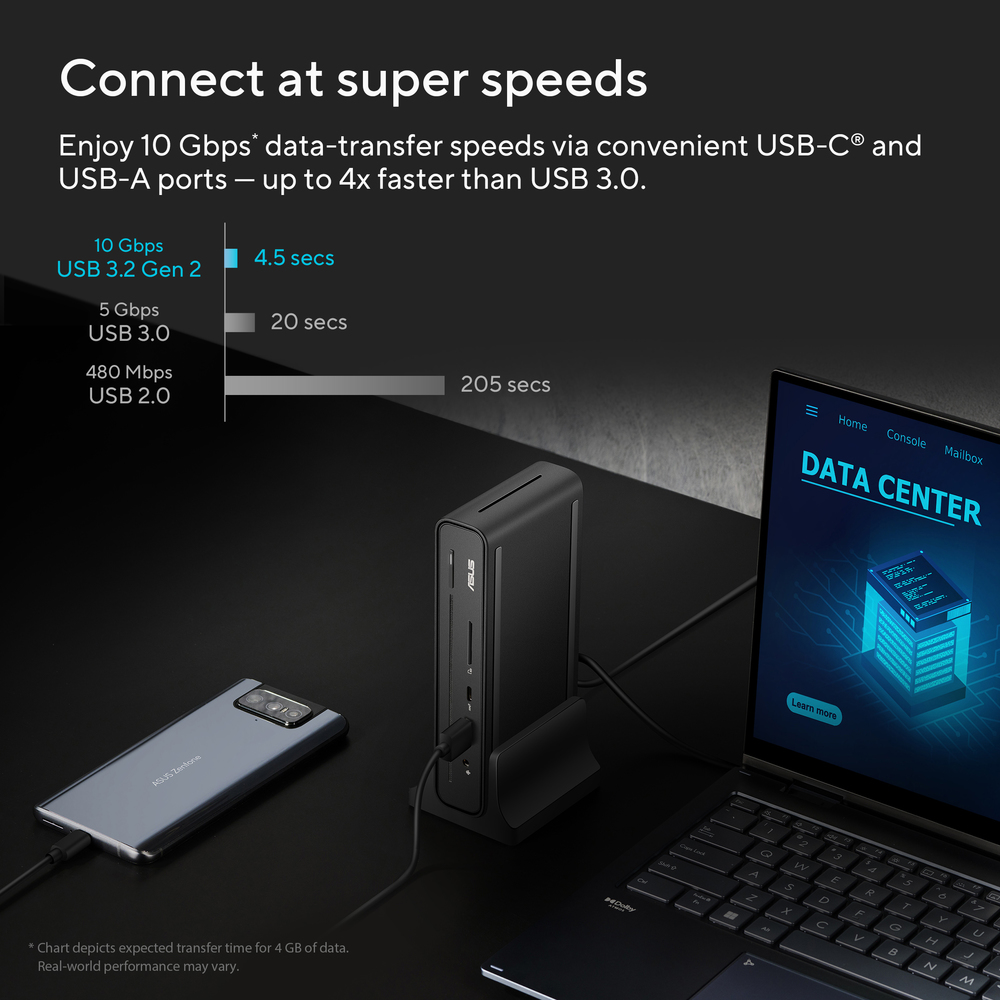

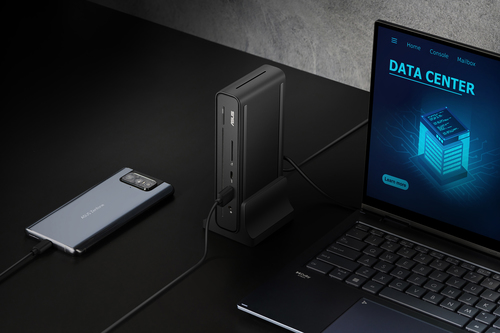

Connect at super speeds
Enjoy 10 Gbps data-transfer speeds via convenient USB-C® and USB-A ports — up to 4x faster than USB 3.0 — so large files and folders can be moved or copied in moments.

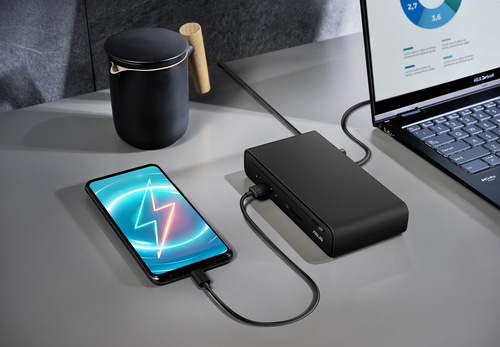

Charge fast, charge in tandem
ASUS Triple Display USB-C Dock supports USB Power Delivery, providing up to 90 watts to rapidly charge almost any modern USB-C device, including the latest ultraportable notebooks. It also features a traditional USB Type-A port that delivers up to 12 watts, and a USB-C® port that delivers up to 15 watts.

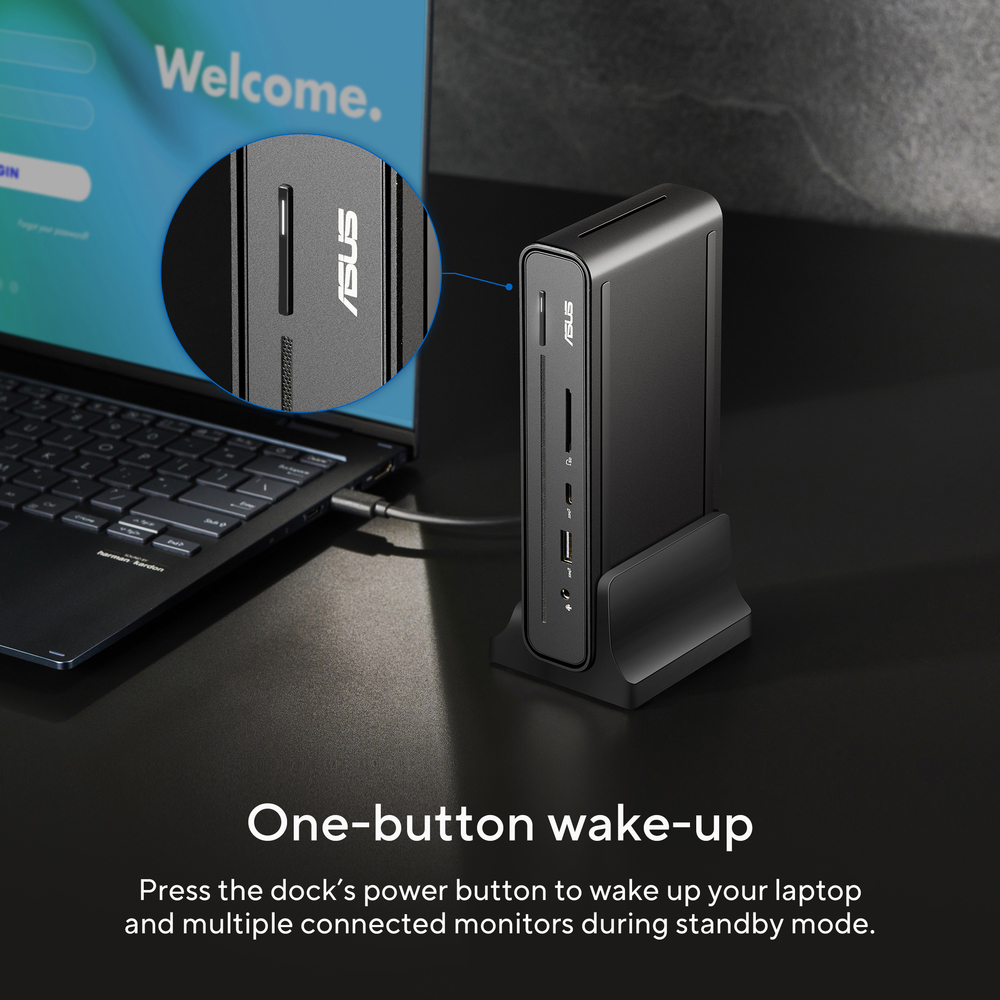

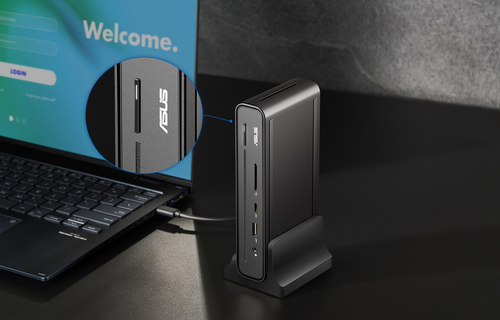

One-button wake up
Press the dock’s power button to wake up your laptop and multiple connected monitors during standby mode.

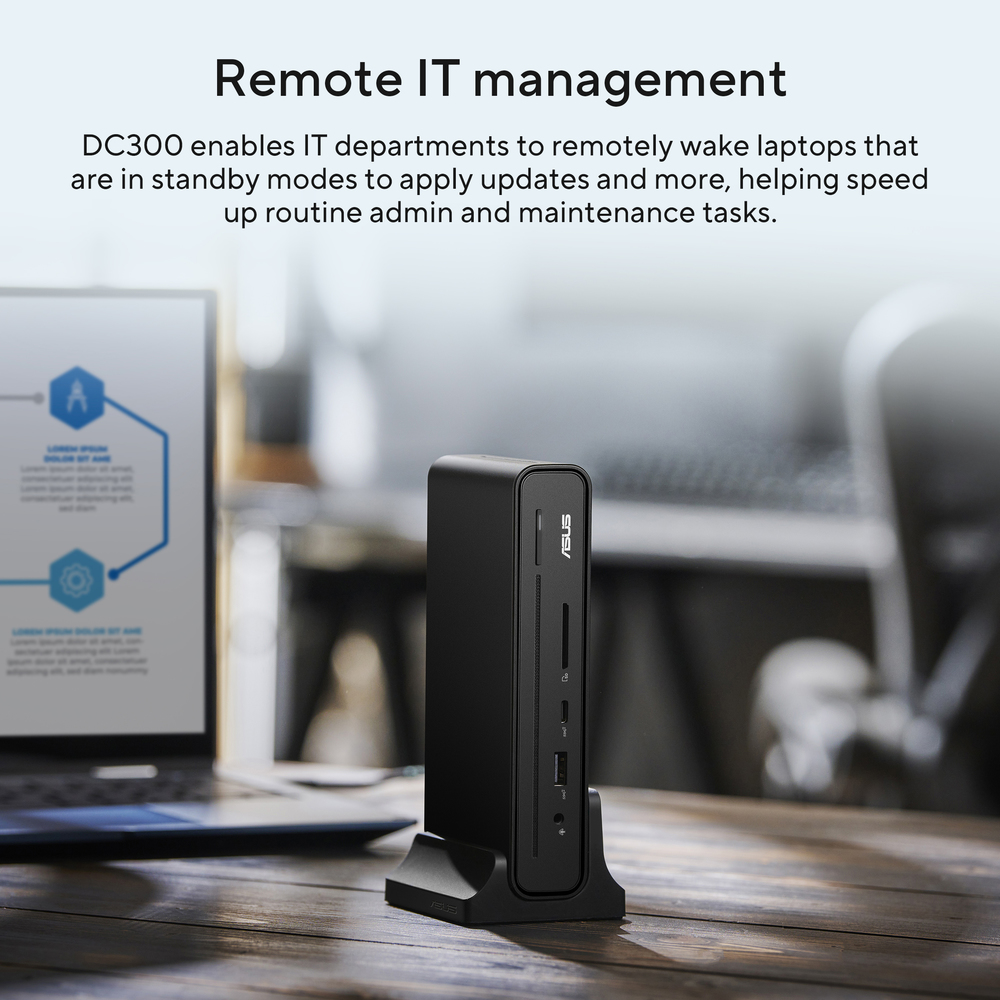

Remote IT management
Enable IT management to update software with Wake-on-LAN (WoL) and PXE.
Enable IT management to update software with Wake-on-LAN (WoL) and PXE.

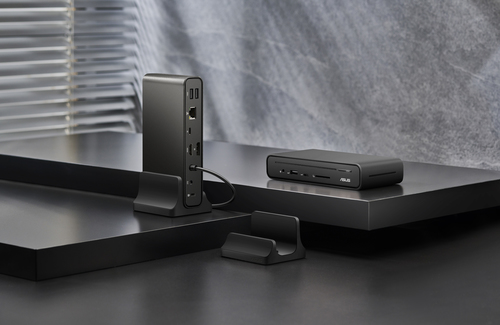

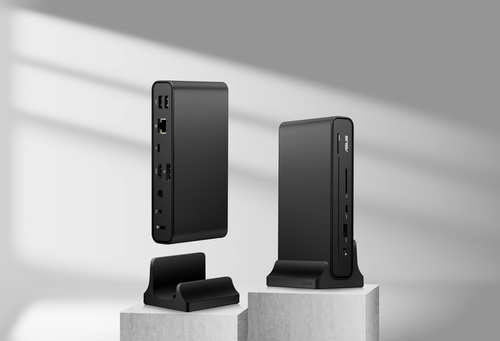

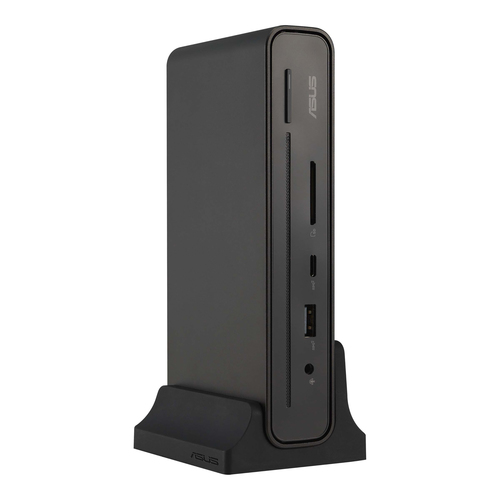

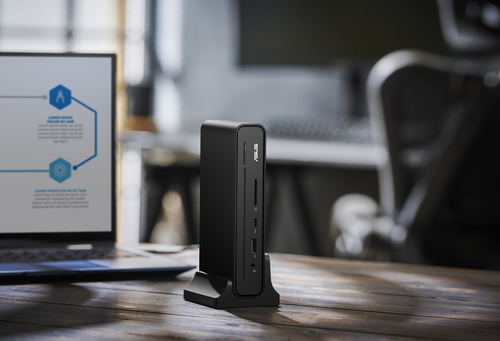

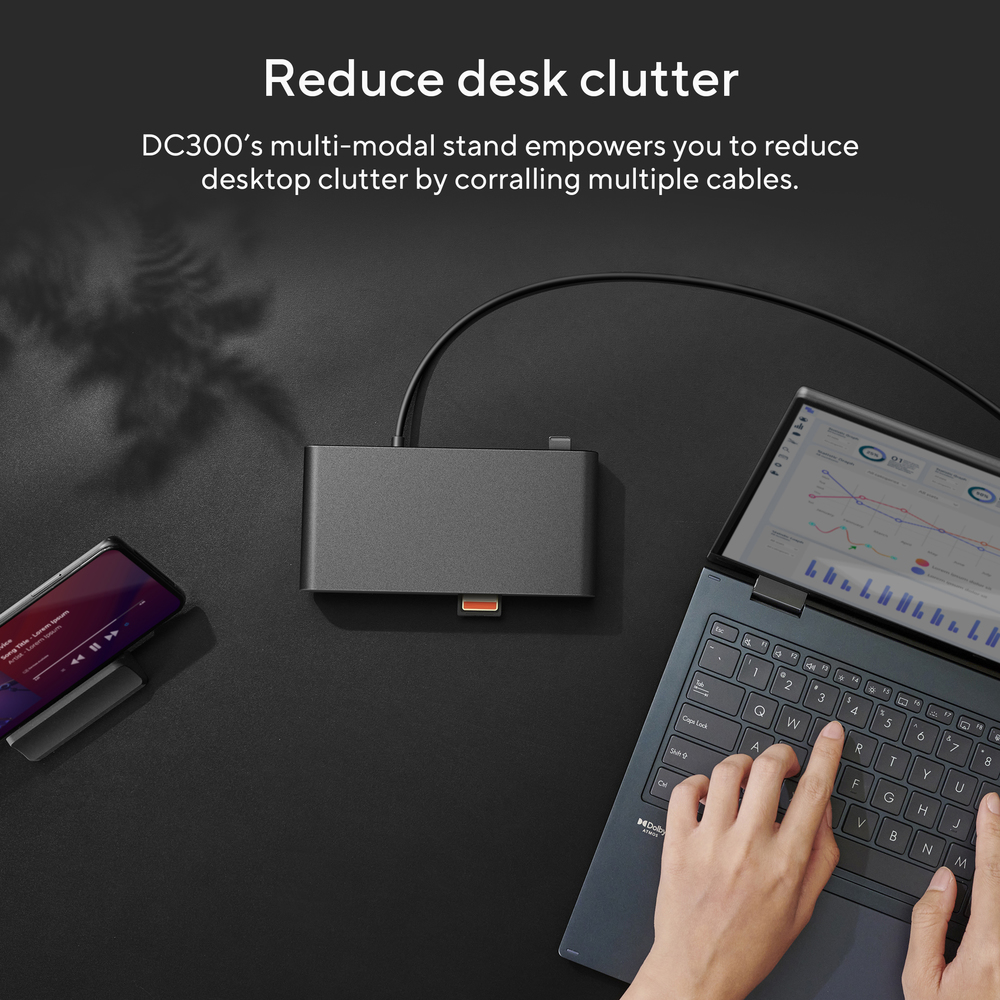

ASUS Triple Display USB-C Dock’s compact design and multi-modal stand empower you to reduce desktop clutter by corralling multiple cables and connections through one little package — empowering you to get to work in moments.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 90 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Housing material | Metal, Plastic |
| Power | |
| Power source type | DC, USB |
| Power supply | 150 W |
| Output voltage | 20 V |
| Output current | 7.5 A |
| USB cable length | 0.6 m |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 80 mm |
| Height | 32 mm |
| Weight | 514 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Warranty card | Yes |

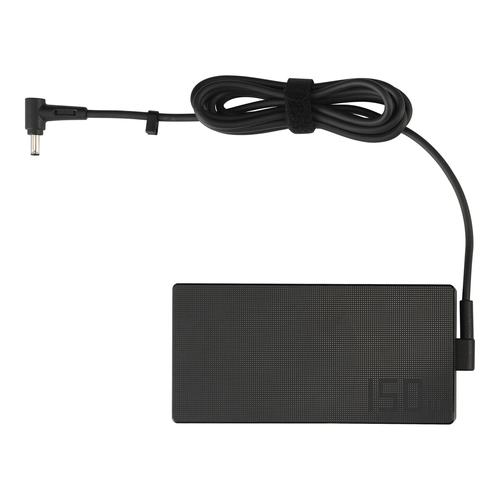

| AC adapter included | Yes |
| Manual | Yes |

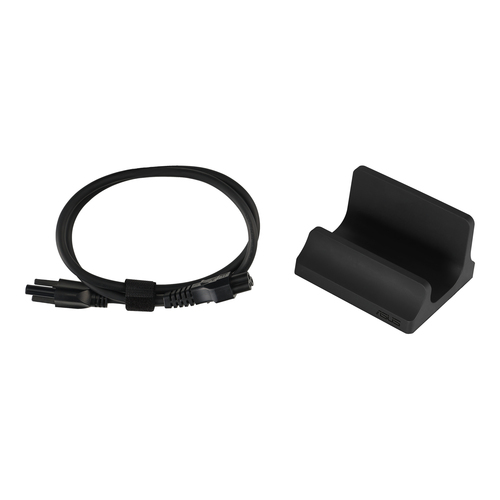

| Stand included | Yes |
