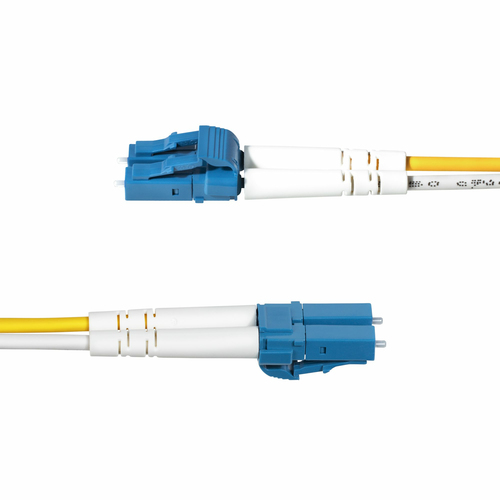

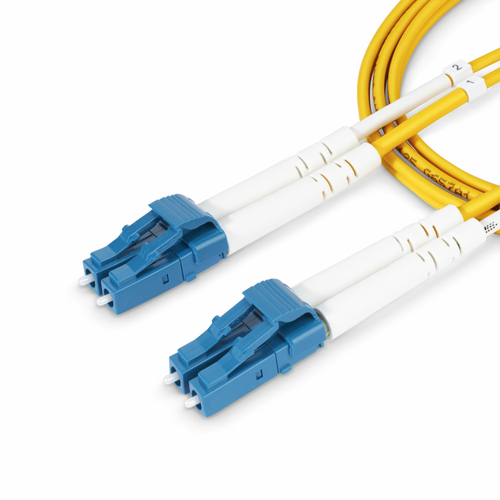

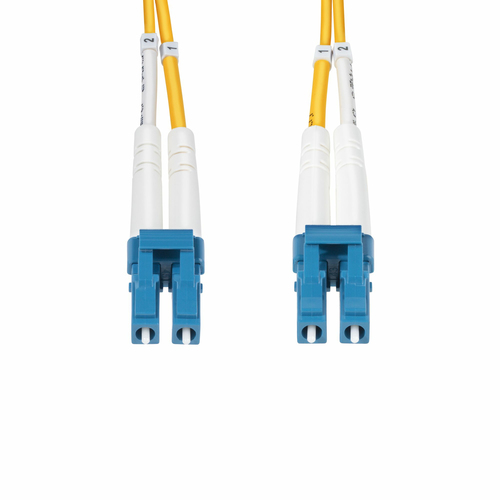

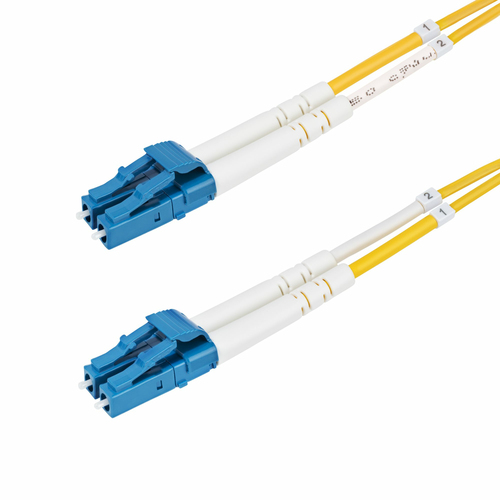

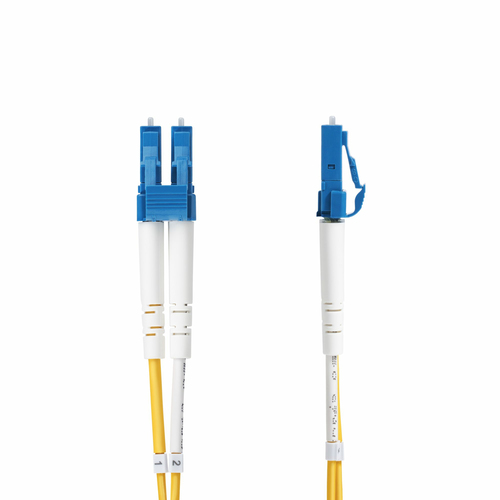

StarTech.com SMDOS2LCLC15M InfiniBand/fibre optic cable
StarTech.com 15m (49.2ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
- Brand
- STARTECH
- Product code
- SMDOS2LCLC15M
- SKU
- G3ZSMUNEEC408
- EAN/GTIN
- 0065030901772
- LC/UPC OS2
- 15 m
- LC Male
- Connector polish type: UPC
- Jacket material: Low smoke zero halogen (LSZH), Polypropylene
- 10 Gbit/s
- Full duplex Single-mode
- Yellow
€38.15
(Inc. VAT)
(Delivery 2-4 working days)
| Features | |
|---|---|
| Cable length | 15 m |
| Fibre optic type | OS2 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector polish type | UPC |
| Cable type | LC/UPC |
| Product colour | Yellow |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Wavelengths supported | 1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm |
| Data transfer rate | 10 Gbit/s |
| Insertion loss | 0.3 dB |
| Return loss | 55 dB |
| Jacket material | Low smoke zero halogen (LSZH), Polypropylene |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Cable diameter | 2 mm |
| Bending radius | 1 cm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 12 mm |
| Package weight | 111.4 g |
| Logistics data | |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 280 mm |
| Products per master (outer) case | 80 pc(s) |
| Other features | |
| Attenuation (max) | 0.35 dB/km |
