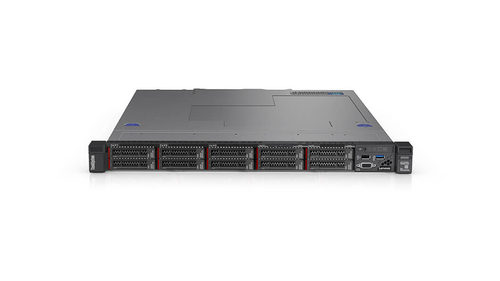

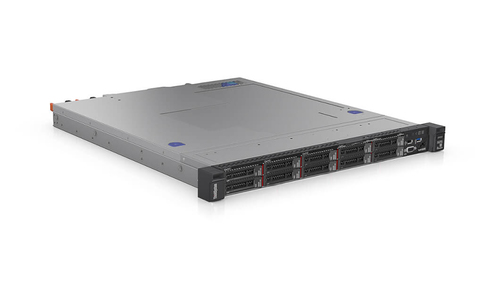

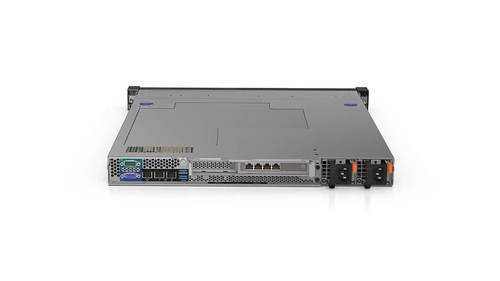

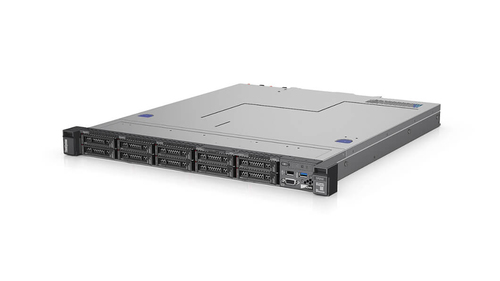

Lenovo ThinkSystem SR250 server 0 GB Rack (1U) Intel Xeon E E-2276G 3.8 GHz 16 GB DDR4-SDRAM 450 W
- Brand
- Lenovo
- Product Family
- ThinkSystem
- Product code
- 7Y51A07EEA
- SKU
- 2XAFWM2ZSC5FJ
- EAN/GTIN
- 889488585342
- No OS
- Intel Xeon E-2276G (12MB Cache, 3.8GHz)
- 16GB (2666MHz) DDR4-SDRAM (1 x 16)
Product Info
Powerful and secure
The Lenovo ThinkSystem SR250 is a single-processor rack server that integrates power, reliability, flexibility, and security in a compact 1U form factor suited for the small-to-medium business.
The SR250 boasts a high price-performance ratio with a combination of high-processing capability and dependability with next-generation Intel® Xeon® E-2200 processors and support for an array of storage configurations.
It provides the flexibility to handle workloads including web serving, virtualization, entry-cloud and data-analytics applications, while integrated Intel Software Guard Extensions (SGX) secure the SR250 for blockchain applications.
Flexible and scalable
The ThinkSystem SR250 adapts to multiple environments and workloads in which a shorter-depth rack accommodates space-constrained environments. Also, lightning-fast TruDDR4 memory, GPU support, and an array of storage options, including low-latency NVMe drives, afford serious storage and workload flexibility.
Superb I/O capability via multiple network interface ports and a dedicated management port handle heavy network communications and enable faster data transmission.
The SR250 also features the option for either a fixed or redundant power supply unit depending on the data center deployment model. These options allow users to configure the SR250 to specifications appropriate for their distinct enterprise use and optimize server utility for future scalability.
Simple management
The ThinkSystem SR250 features the Lenovo XClarity Controller, the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks.
Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95 percent versus manual operation. And running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2276G |
| Processor frequency | 3.8 GHz |
| Processor boost frequency | 4.9 GHz |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C246 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Processor threads | 12 |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Tcase | 73 °C |
| Tjunction | 100 °C |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Scalability | 1S |
| Embedded options available | No |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 128 GB |
| Storage | |
| HDD interface | Serial ATA III, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Supported HDD sizes | 2.5" |
| SSD interface | NVMe, NVMe 3.0, PCI Express 3.0 |
| NVMe | Yes |
| RAID support | No |
| Hot-swap | Yes |
| Optical drive type | No |
| Internal drive bays | 8 |
| Graphics | |
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics card memory | 128 GB |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card ID | 0x3E96 |
| Maximum graphics card memory | 16 MB |
| Network | |
| LAN controller | Broadcom BCM5720 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Expansion slots | |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express slots version | 3.0 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black |
| Rack mounting | Yes |
| Rack rails | Yes |
| Performance | |
| Performance management | XClarity Standard |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2016/2019, Red Hat Enterprise Linux 7/8, SUSE Linux Enterprise Server 12/15, VMware vSphere (ESXi) 6.5/6.7/7.0 |
| Processor special features | |
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel® OS Guard | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 191043 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 450 W |
| Number of redundant power supplies supported | 2 |
| Number of main power supplies | 1 |
| Weight & dimensions | |
| Width | 434 mm |
| Depth | 498 mm |
| Height | 43 mm |
| Weight | 9.1 kg |
