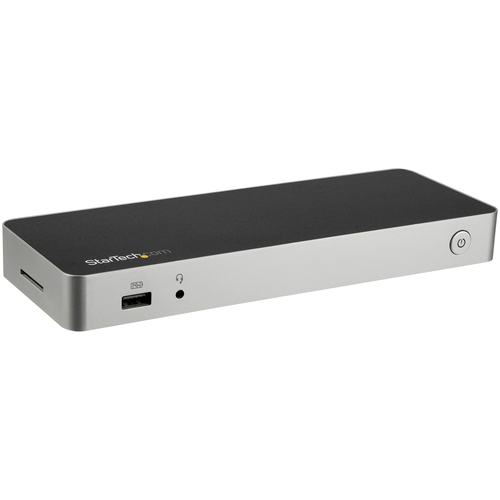

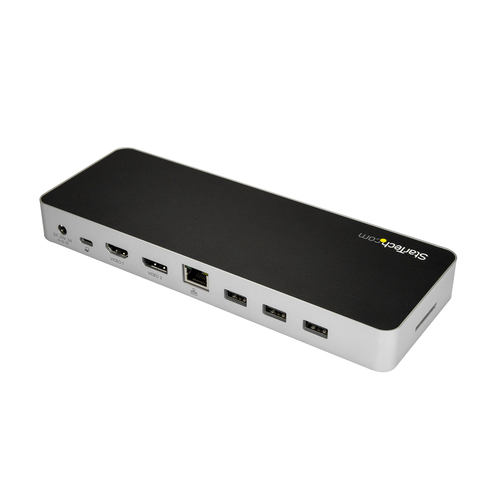

StarTech.com DK30CHDPPDUE laptop dock/port replicator

StarTech.com USB C Dock - Dual Monitor HDMI & DisplayPort 4K 30Hz - USB Type-C Laptop Docking Station 60W Power Delivery, SD, 4-port USB-A 3.0 Hub, GbE, Audio - Thunderbolt 3 Compatible


Brand
STARTECH
Product code
DK30CHDPPDUE
SKU
CYXQ15WU5A12H
EAN/GTIN
0065030872683

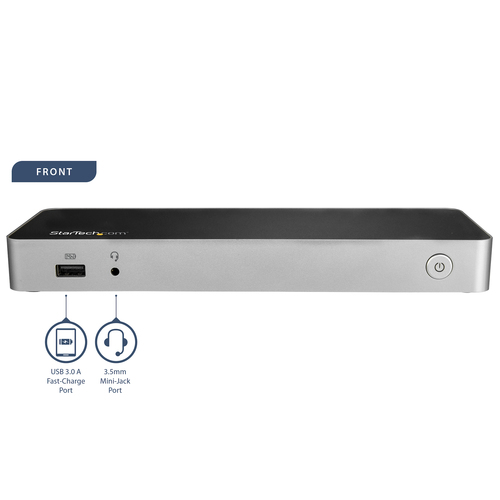

  • FULL FEATURE USB-C DOCK: 4K 30Hz HDMI + 4K 30Hz DisplayPort video, 4x USB-A 5Gbps (incl. BC 1.2 fast charge port), 60W PD, Gigabit Ethernet & 3.5mm headset audio; supports 2 extended displays on Macbook Pro/Air with Intel processor or Apple M1/M2 chip

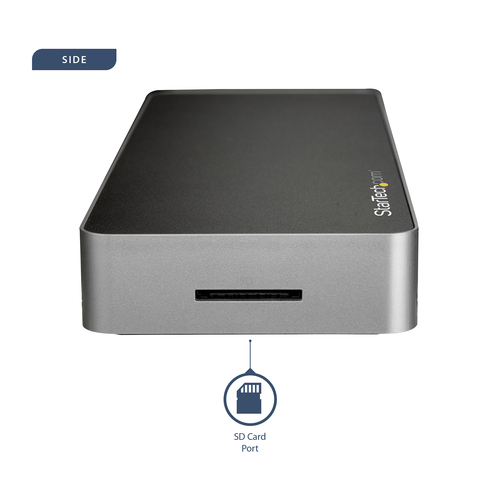

  • SUPPORT FOR SD/SDXC MEDIA: This USB-C docking station has an SD slot supporting SD/SDXC cards, great for additional storage or backup using Windows File History or MacOS Time Machine
  • EASY INSTALLATION: This universal USB-C port replicator incl. a 1m (3.3ft) USB-C host cable, front facing power button, MAC Address Changer utility and works w/ Windows, macOS, ChromeOS, and Ubuntu
  • WIDE DEVICE COMPATIBILITY: Multi monitor USB Type-C dock with HDMI & DP works w/ Thunderbolt 3 and 4 laptops & ultrabooks, USB-C laptops, ultrabooks, Chromebooks (MacBooks, HP, Dell, Lenovo & Surface)
  • 60W POWER DELIVERY: This USB Type-C docking station powers and charges while you work with 60W PD; great for ultrathin laptops like Lenovo ThinkPad T Series, X1 Carbon, Surface Pro7
€158.81 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Add dual monitors (4K HDMI® & 4K DP), an SD card reader, multiple USB ports, GbE, and audio to your laptop, plus power and charge your laptopThis dual-monitor USB-C™ dock transforms your MacBook or Windows® laptop into a dual Ultra HD 4K workstation, with support for 4K DisplayPort and HDMI monitors. It gives you all the connections to create a fully capable workstation, including an SD™ card reader slot.The USB-C docking station features USB Power Delivery 2.0 (60W), to power and charge your laptop as you work. It’s the perfect companion for your MacBook Pro or other Thunderbolt™ 3 equipped laptop.Create a dual-4K video workstationThe USB-C dock expands the display capabilities of your laptop across two Ultra HD 4K monitors. It enables DisplayLink® and USB-C DP Alt Mode to allow dual 4K video output to HDMI and DisplayPort 4K monitors. With the dual-4K dock, you can connect:• 1x 4K DisplayPort display at 3840 x 2160 resolution @ 30Hz• 1x 4K HDMI display at 3840 x 2160 resolution @ 30HzSD™ card readerThe dock provides direct access to your SD memory cards or microSD™ cards (with adapter). The SD card slot can also be used for additional storage and backup through macOS X Time Machine or Windows 10 File History.Ample connectionsThe dock provides four USB 3.0 (Type-A) ports to connect your peripherals, including a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port, and combined 3.5 mm audio and microphone port.Universal supportCompatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops. Connected Device Transparency with the StarTech.com MAC Address Changer UtilityThe DK30CHDPPDUE, includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer’s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat , or e-mail . The DK30CHDPPDUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage

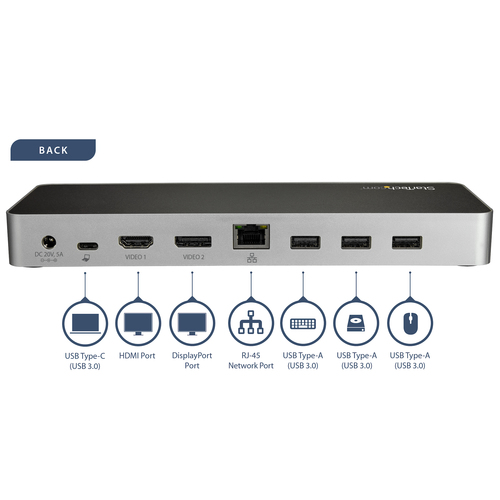

Ports & interfaces
Connectivity technology Wired
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB Power Delivery Yes
USB Power Delivery up to 60 W
HDMI ports quantity 1
DisplayPorts quantity 1
Microphone in No
Combo headphone/mic port Yes
Headphone outputs 1
Headphone connectivity 3.5 mm
DC-in jack Yes
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X Yes
Full duplex Yes
Performance
Card reader integrated Yes
Compatible memory cards MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate 5 Gbit/s
Maximum digital resolution 3840 x 2160 pixels
Number of displays supported 2
Product colour Black, Silver
On/off switch Yes
UASP support Yes
Housing material Plastic
Certification CE, FCC, REACH
Power
Power source type AC
AC input voltage 100 - 240 V
Input current 2 A
Output voltage 20 V
Output current 5 A
Compatible power plug types EU, UK
Software
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility Yes
Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Other operating systems supported ChromeOS
Operational conditions
Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 95%
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Width 80 mm
Depth 220 mm
Height 25 mm
Weight 261 g
Packaging data
Package width 155 mm
Package depth 270 mm
Package height 90 mm
Package weight 1.3 kg
Packaging content
Cables included USB
AC adapter included Yes
Manual Yes
Logistics data
Products per master (outer) case 6 pc(s)
Master (outer) case width 280 mm
Master (outer) case length 335 mm
Master (outer) case height 302 mm
Harmonized System (HS) code 84733020
Other features
Cable length 1 m
Chipset DisplayLink - DL-5700, Genesys Logic - GL3215, VIA Labs - VL813, Texas Instruments - TPS65983
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
