StarTech.com PCI to PCI Express Adapter Card
- Brand
- STARTECH
- Product code
- PCI1PEX1
- SKU
- TBKF3X8W24QYU
- EAN/GTIN
- 0065030837835

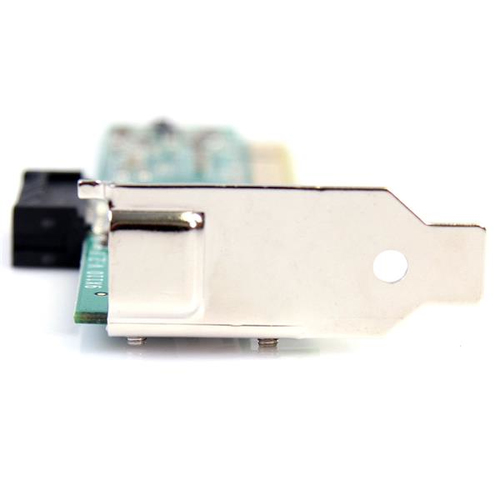

- Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card
- PCI revision 2.3 compliant with up to 133MBps of available bandwidth
- LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)
- Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2
- No driver or software installation
Product Info

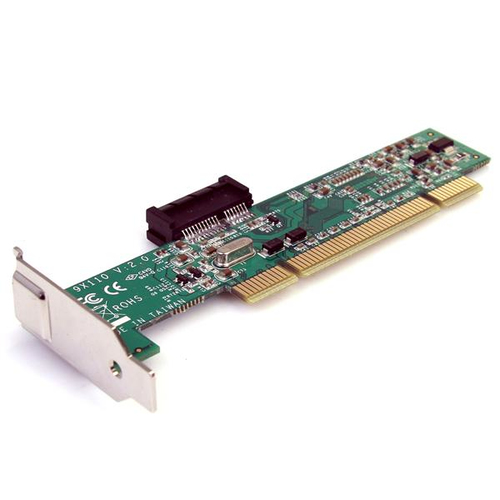

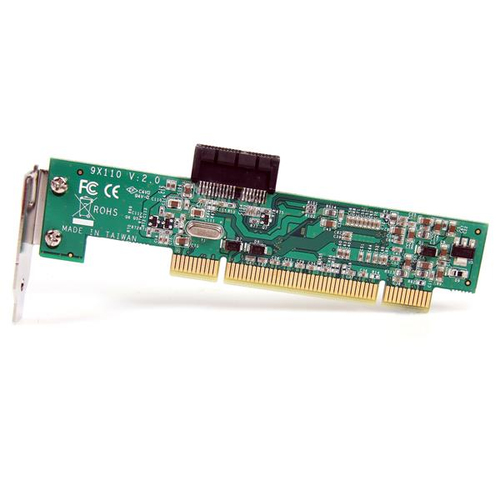

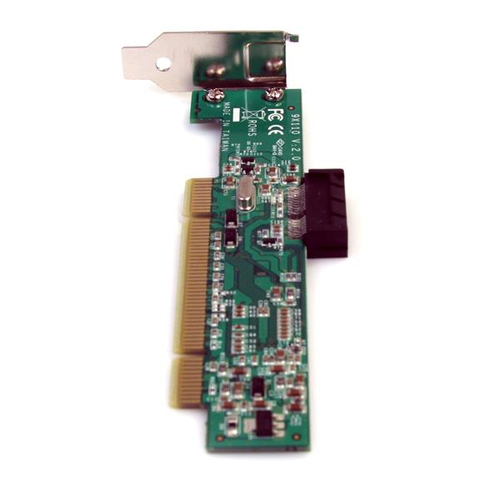

Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot

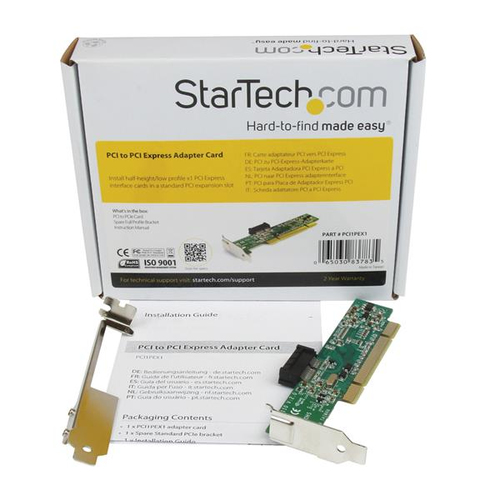

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.
The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.
The StarTech.com Advantage
- The unique bracket design allows a low profile/half-height PCI Express card to work seamlessly in a PCI-based expansion slot
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
| Ports & interfaces | |
|---|---|
| Host interface | PCI |
| Output interface | PCIe |
| Expansion card standard | PCI 2.3 |
| Design | |
| Internal | Yes |
| Certification | CE, FCC, TAA |
| Features | |
| Chipset | Pericom - PI7C9X111SL |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -10 - 95 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 60 mm |
| Depth | 135 mm |
| Height | 20 mm |
| Weight | 32 g |
| Packaging data | |
| Quantity | 1 |
| Manual | Yes |
| Package width | 140 mm |
| Package depth | 173 mm |
| Package height | 33 mm |
| Package weight | 102 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
