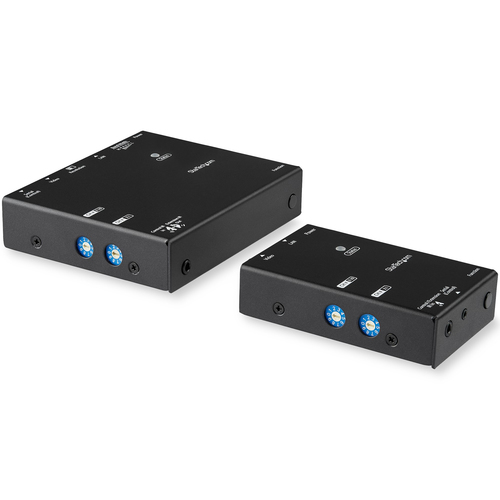

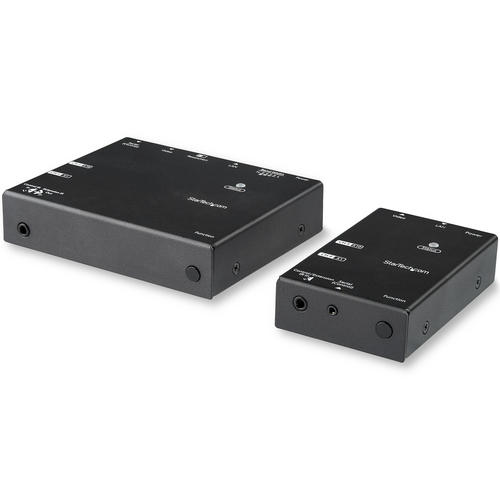

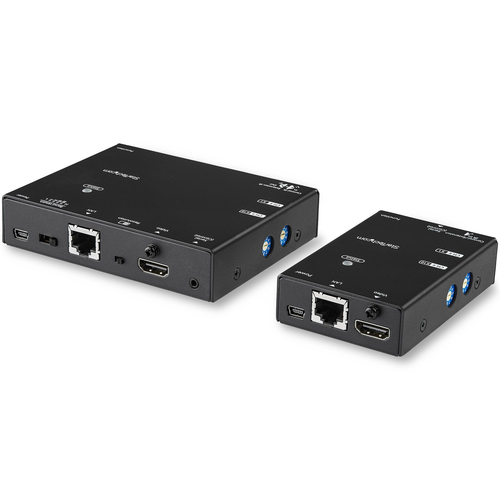

StarTech.com HDMI Over IP Extender Kit with Advanced Compression
- Brand
- STARTECH
- Product code
- ST12MHDLNHK
- SKU
- 4V1TRS8I9DK35
- EAN/GTIN
- 0065030878760
- Efficiently distribute video throughout your site using your local area network
- Easily create your ideal digital signage with a versatile and scalable video distribution system
- Deliver brilliant HD quality video with 1080p support
- Newer Version Available: ST12MHDLAN2K features longer range (100m/330ft) and video wall support
Product Info

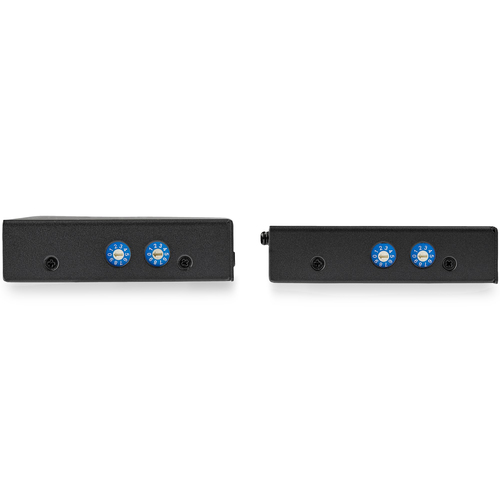

Transmitter & Receiver | 1920 x 1080 (1080p) | Mountable | Multicast & UnicastExtend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.Ideal for Universities, Offices, and RestaurantsReliably Extend Compressed HDMI Video with Bandwidth EfficiencyThis extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.Flexible & Scalable Deployment OptionsThe HDMI over LAN extender offers many configurations to accommodate your set up.This HDMI video extender provides four ways to control your video network configurations.Rotary DIP switches located on the Tx and Rx• Your computer connected to the transmitter or receiver via a serial cable• Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)• Infrared (IR) remote control using the included receiverComprehensive Product Testing & Expert Technical SupportStarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.The StarTech.com Advantage
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 100 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 2.0 channels |
| LED indicators | Status |
| Supported video modes | 1080p |
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | Yes |
| Rubber feet | Yes |
| Product colour | Black |

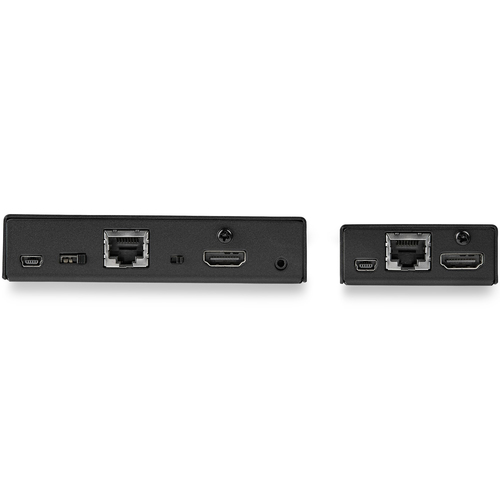

| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| USB connector type | Mini-USB B |
| Audio input | 3.5 mm |
| Audio output | 3.5 mm |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Power | |
| AC input voltage | 100 - 240 V |
| Operating voltage | 5 V |
| Input current | 0.3 A |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight | 3.2 kg |
| Packaging data | |
| Package width | 92 mm |
| Package depth | 108 mm |
| Package height | 24 mm |

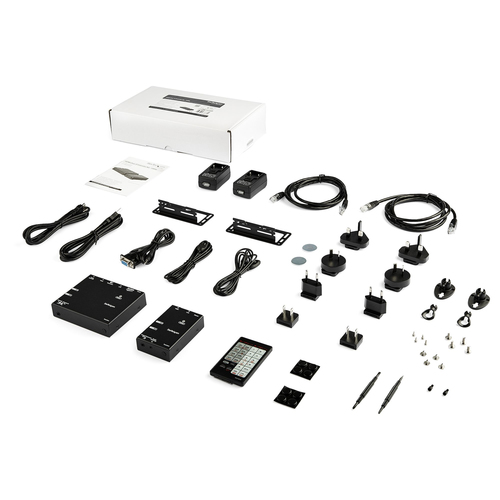

| Packaging content | |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), Serial, USB |
| Included power plug types | ANZ, EU, NA, UK |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Remote control included | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 324 mm |
| Master (outer) case length | 406 mm |
| Master (outer) case height | 262 mm |
| Products per master (outer) case | 6 pc(s) |
