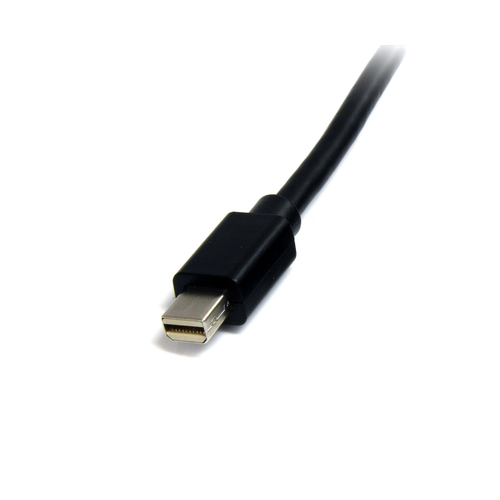

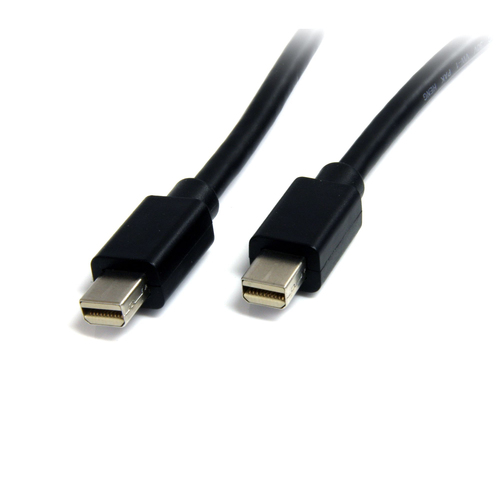

StarTech.com MDISP1M DisplayPort cable
StarTech.com 1m (3.3ft) Mini DisplayPort Cable - 4K x 2K Ultra HD Video - Mini DisplayPort 1.2 Cable - Mini DP to Mini DP Cable for Monitor - mDP Cord works with Thunderbolt 2 Ports - M/M
- Brand
- STARTECH
- Product code
- MDISP1M
- SKU
- 2HUDZ0JKAJXXT
- EAN/GTIN
- 0065030844475
- MINI DISPLAYPORT 1.2 CABLE: This 1m (3.3ft) Mini DisplayPort v1.2 cable supports 4K x 2K video (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- QUALITY CONSTRUCTION: 30AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.1
- SPECS: 1m (3.3ft); Black Mini DP Cable; DisplayPort v1.2; mDP Male to mDP Male Cord; 30 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR2, MST, GTC; Backed for Life
€25.2
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and monitorThe StarTech.com Advantage
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 2560 x 1600 (WQXGA), 3840 x 2400 |
| Supported video modes | 720p, 1080p, 2160p |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Cable length | 1 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | Mini DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Cable rating | CMG (CM) |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| Bandwidth | 21600 MB/s |
| Plug and Play | Yes |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Packaging data | |
| Weight | 39.9 g |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 12 mm |
| Package weight | 40.3 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 100 pc(s) |
