Lenovo 4XH1C95567 laptop dock/port replicator
Lenovo 4XH1C95567 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
- Brand
- Lenovo
- Product code
- 4XH1C95567
- SKU
- I63CD6Y9VXL96
- EAN/GTIN
- 195892027096
- Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Ethernet LAN
- Full duplex
€285.66
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info

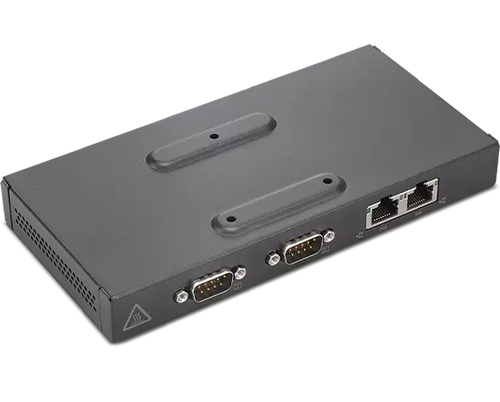

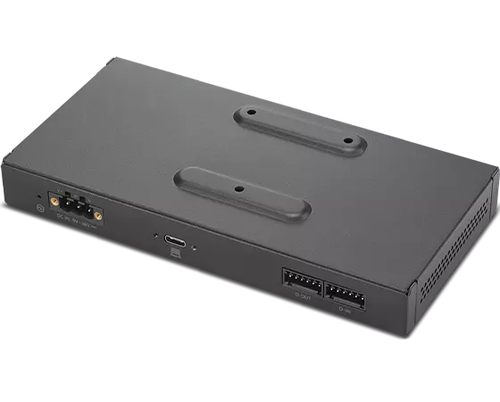

The ThinkEdge SE30 IOBOX connects to ThinkEdge SE30 via a Type-C connection, providing extra vertical IO offerings such as Power over Ethernet (PoE), Digital Input/Output, and a Serial port (RS232/422/485) offering flexibility and adaptability during Retail, Manufacturing, and Smart Building system integration. One DC cable provides voltage input to the IOBOX and PC device simultaneously, saving customers the extra burden of an AC/DC power transfer in industrial DC power supply environments.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Microphone in | No |
| Serial ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Product colour | Black |
| LED indicators | Power |
| Brand compatibility | Lenovo |
| Certification | CE,FCC,cTUVus，ICES,RCM，KCC,VCCI,BSMI,EAC，MOROCCO |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 178 mm |
| Depth | 88 mm |
| Height | 25.6 mm |
| Weight | 506 g |
| Packaging data | |
| Package width | 227 mm |
| Package depth | 175 mm |
| Package height | 31 mm |
| Package weight | 650 g |
| Packaging content | |
| Warranty card | Yes |
| User guide | Yes |
| Other features | |
| Overload protection | Yes |
