StarTech.com 24in Internal USB Motherboard Header to 2 Port Serial RS232 Adapter
- Brand
- STARTECH
- Product code
- ICUSB232INT2
- SKU
- U324QGILTKQN9
- EAN/GTIN
- 0065030841528
- Internal
- Host interface: IDC
- Output interface: Serial
Product Info

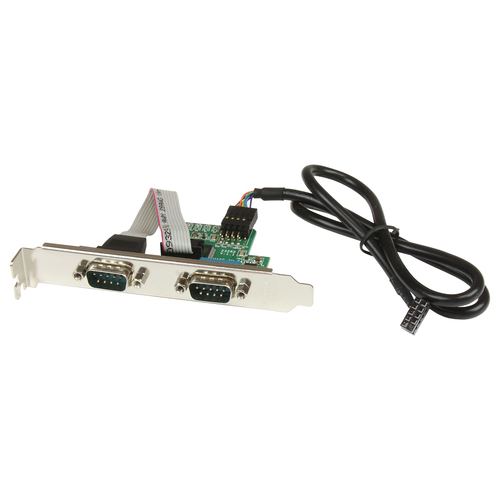

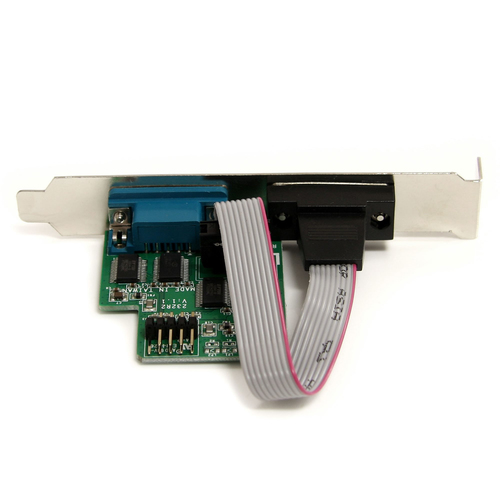

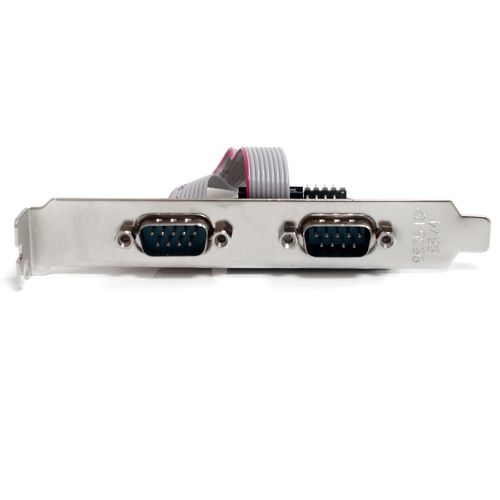

The ICUSB232INT2 USB to Serial Adapter lets you add 2 RS232 ports to any desktop system that is equipped with an available USB motherboard header.

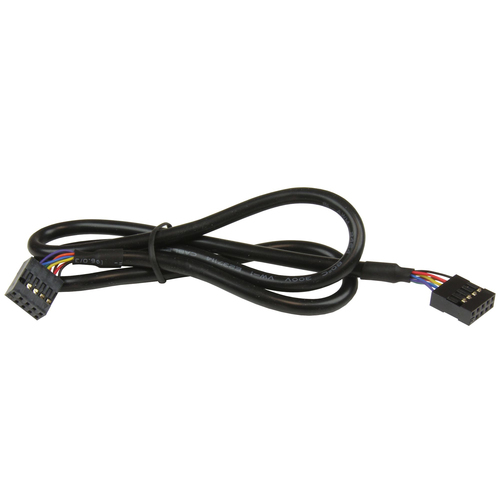

Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.
This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Direct connection from the motherboard header allows for a clean and completely contained setup without taking up a PCI/PCI-Express slot in your system
- Standard and low profile/half-height bracket included to ensure fitment in any system
- Extensive list of OS support and Microsoft WHQL certified drivers makes for maximum compatibility and simple installation
| Ports & interfaces | |
|---|---|
| Host interface | IDC |
| Output interface | Serial |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Design | |
| Internal | Yes |
| Certification | Microsoft WHQL, CE, FCC |
| Features | |
| Baud rate | 115.2 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Plug and Play | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 68 mm |
| Height | 19 mm |
| Weight | 63 g |
| Packaging data | |

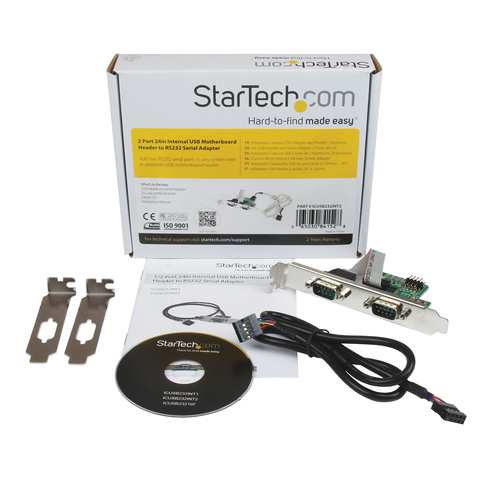

| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 144 mm |
| Package depth | 175 mm |
| Package height | 32 mm |
| Package weight | 153 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 354 mm |
| Master (outer) case length | 684 mm |
| Master (outer) case height | 320 mm |
