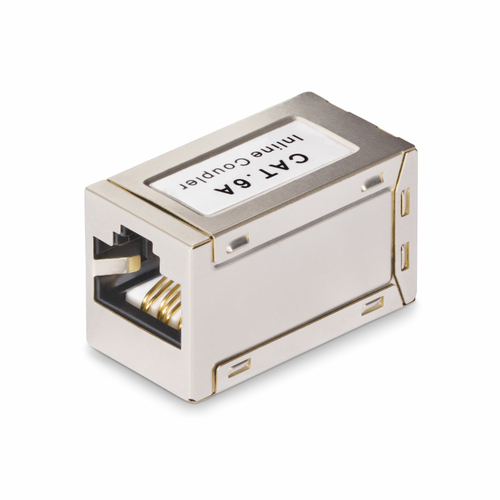

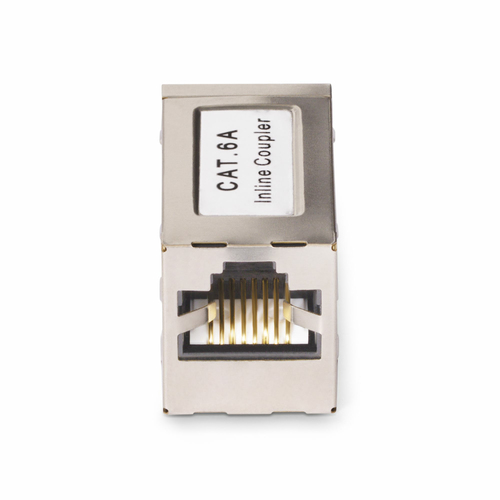

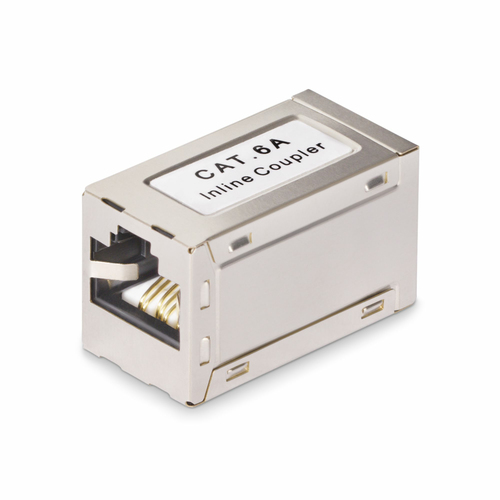

StarTech.com Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extension
- Brand
- STARTECH
- Product code
- IN-CAT6A-COUPLER-S1
- SKU
- 3ECGPSMEBC1T7
- EAN/GTIN
- 0065030906135
- SHIELDED CAT6A COUPLER: Shielded RJ45 Coupler features a compact design with straight-through TIA/EIA-T568B pinouts; Connect two Cat6a or Cat6 Ethernet cables seamlessly in tight spaces; Ideal for office use, server setups, and home networks
- ROBUST CONSTRUCTION: Cat6a Ethernet Coupler features a durable metal outer shell with ABS inner housing for enhanced EMI and wear protection; Female RJ45 contacts made from gold-plated phosphor bronze for optimal conductivity and corrosion resistance
- RELIABLE DATA and POWER: Facilitates Power over Ethernet (PoE) output to networking devices and peripherals; Supports 10Gbps, 1Gbps, and 10/100 speeds for versatile and reliable transfer rates between devices
- COMPATIBILITY: Compatible with Cat 6/6a and Cat 5/5e cables; Support 2.5G/5G/10G and 10/100/1000 networks; Extend a PoE connection to a network camera, access point, or switch; Cat6a performance is compliant with ANSI/TIA/EIA-568-C standards
- QUICK INSTALLATION: Simple plug-and-play design requires no tools for quick and hassle-free setup; No additional software or configuration required
Product Info

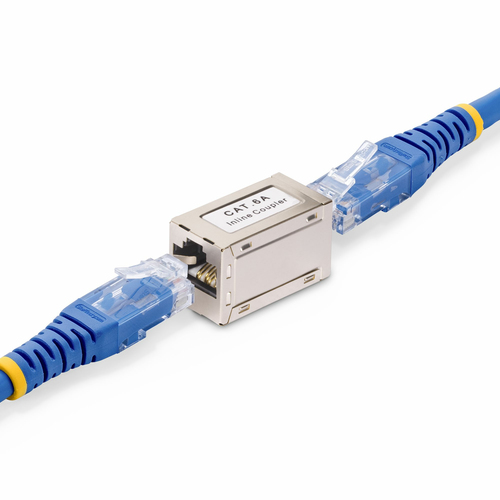

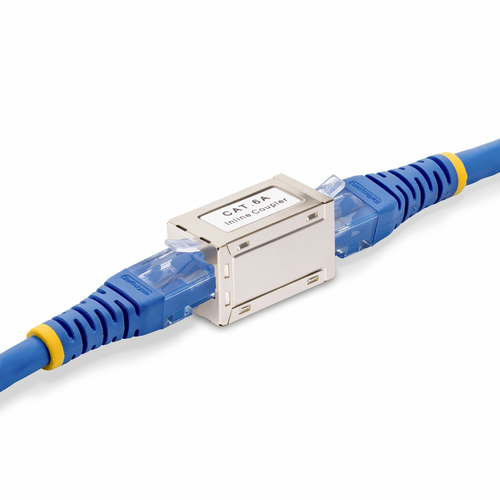

Join two shielded RJ45 Cat6a cables using this Inline CouplerConnect two Cat 6a cables to extend a network connection, using this Shielded RJ45 Inline Coupler. The female to female Ethernet coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.Wide CompatibilityThe Cat6a Coupler supports up to 10Gbps and is compatible with common networking standards including 10/100/1000BASE-T, and advanced protocols such as 2.5GBASE-T/5GBASE-T. The Shielded Inline RJ45 coupler facilitates Power-over-Ethernet (PoE) to power network peripheral devices.Durable ConstructionThe Shielded RJ45 Cat6a Coupler features a durable metal outer shell with ABS inner housing to enhance EMI protection, and gold-plated phosphor bronze contacts for dependable, long-lasting performance and reliability.The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Female |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Performance | |
| Product colour | Silver |
| Housing material | Acrylonitrile butadiene styrene (ABS), Metal |
| Data transfer rate | 10 Gbit/s |
| Certification | TIA/EIA-T568B |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -25 - 75 °C |
| Relative humidity | 30 - 70% |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE |
| Weight & dimensions | |
| Width | 16 mm |
| Depth | 31 mm |
| Height | 20 mm |
| Packaging data | |
| Package width | 125 mm |
| Package depth | 90 mm |
| Package height | 2 mm |
| Package weight | 10 g |
