StarTech.com SMDOS2LCLC25M InfiniBand/fibre optic cable
SMDOS2LCLC25M - 0065030901796

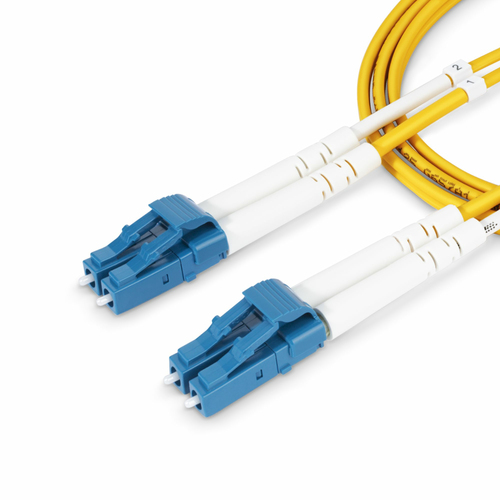

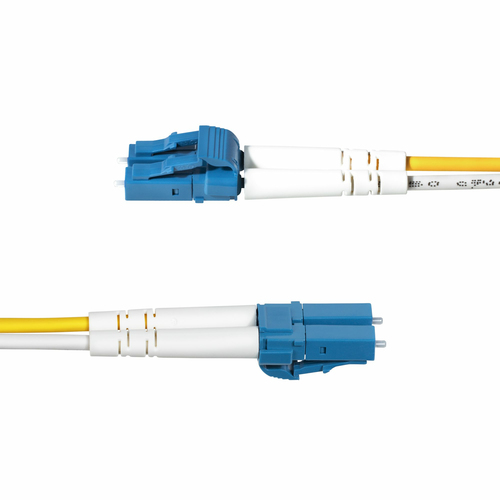

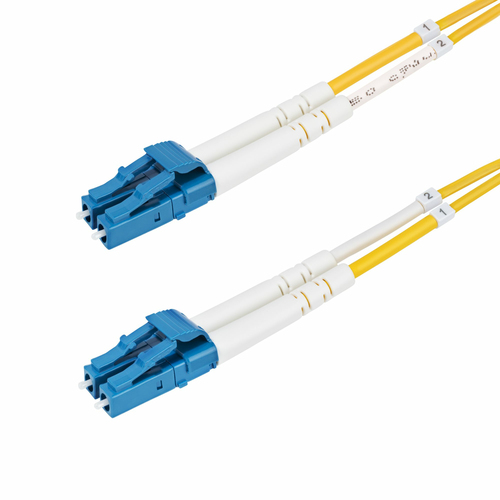

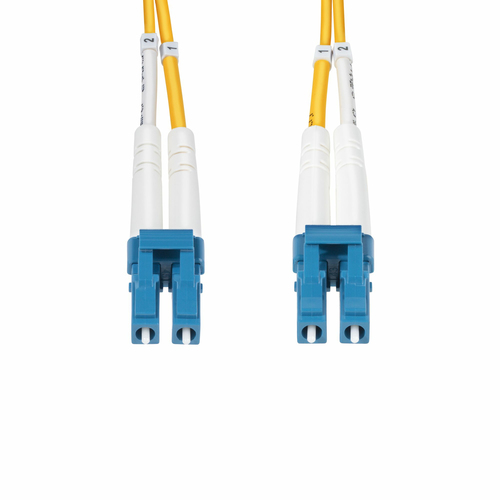

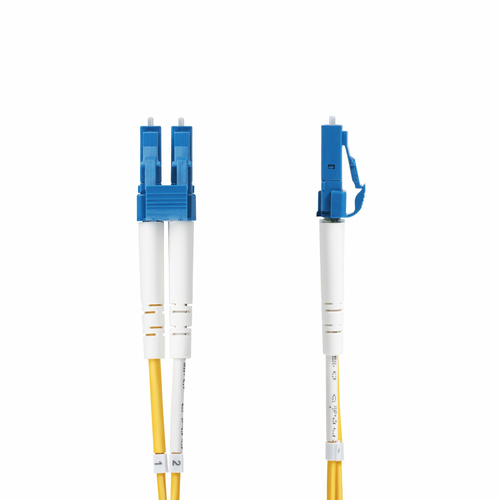

StarTech.com 25m (82ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
- Brand
- STARTECH
- Product code
- SMDOS2LCLC25M
- SKU
- MRRB49J2G1E8M
- EAN/GTIN
- 0065030901796
- LC/UPC OS2
- 25 m
- LC Male
- Connector polish type: UPC
- Jacket material: Low smoke zero halogen (LSZH), Polypropylene
- 10 Gbit/s
- Full duplex Single-mode
- Yellow
€50.73
(Inc. VAT)
(Delivery 2-4 working days)
StarTech.com 25m (82ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125, 100G, LSZH Fiber Jumper Cord
StarTech.com 25m (82ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord. Cable length: 25 m, Cable type: LC/UPC, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex
Specifications
Features
Cable length
25 m
Fibre optic type
OS2
Connector 1
LC
Connector 2
LC
Connector 1 gender
Male
Connector 2 gender
Male
Connector polish type
UPC
Cable type
LC/UPC
Product colour
Yellow
Full duplex
Yes
Core diameter
9 µm
Cladding diameter
125 µm
Fiber mode structure
Single-mode
Wavelengths supported
1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm
Data transfer rate
10 Gbit/s
Insertion loss
0.3 dB
Return loss
55 dB
Jacket material
Low smoke zero halogen (LSZH), Polypropylene
Technical details
Sustainability compliance
Yes
Sustainability certificates
CE
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Cable diameter
2 mm
Bending radius
1 cm
Packaging data
Quantity per pack
1 pc(s)
Package width
280 mm
Package depth
280 mm
Package height
15 mm
Package weight
181.4 g
Logistics data
Master (outer) case width
380 mm
Master (outer) case length
380 mm
Master (outer) case height
280 mm
Products per master (outer) case
40 pc(s)
Other features
Attenuation (max)
0.35 dB/km
